5.1 Main menu
SIMATIC Automation Tool V2.1 user guide
Manual, V2.1.1 07/2016, A5E33042676-AC
61

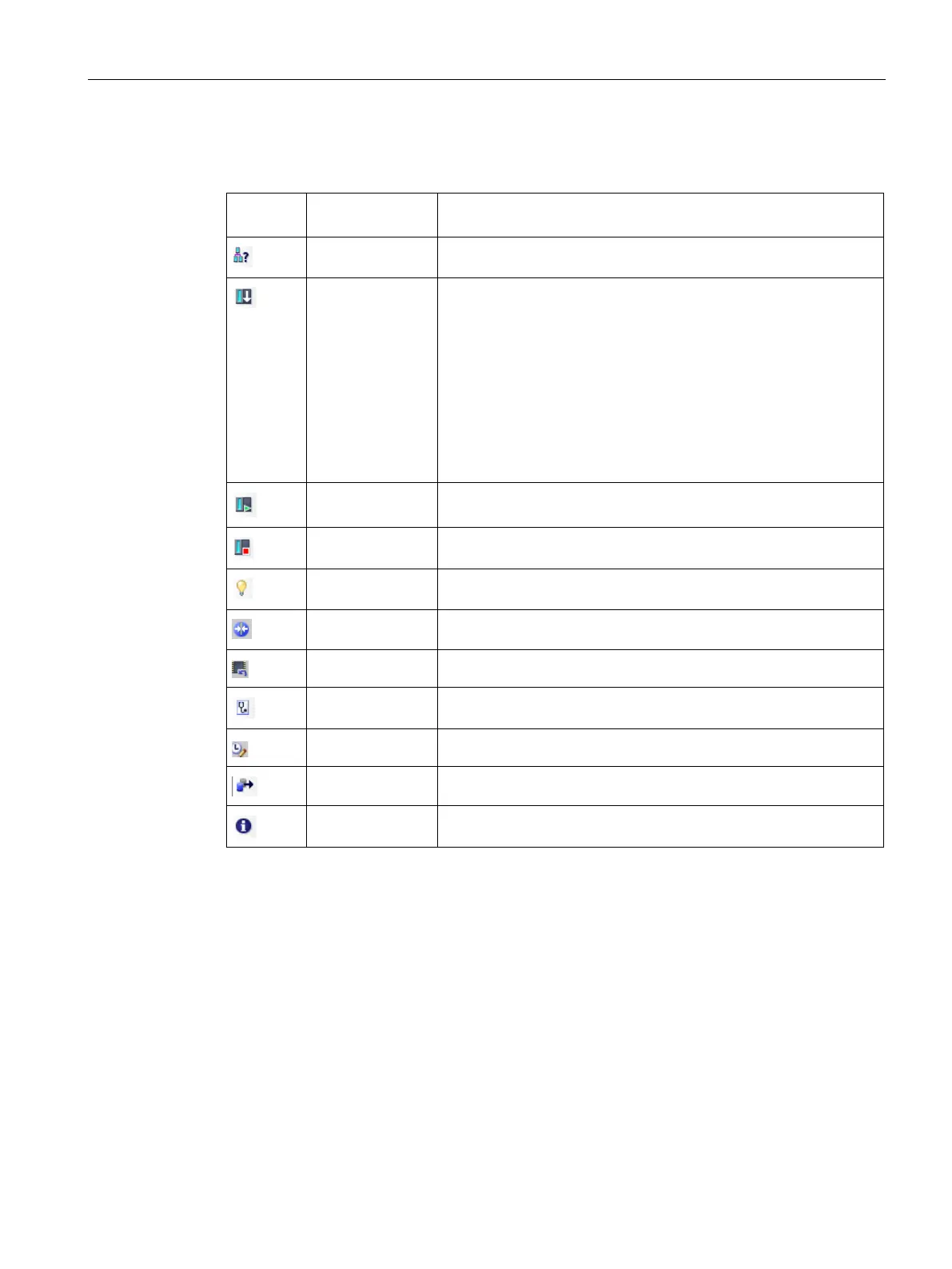

5.1.3
Network menu
Tool
icon
Menu
command
Description
Scan
Scan the selected network interface for accessible CPUs and mod-
ules.
Download
Download data entered in the SIMATIC Automation Tool to PLCs on
the network. The type of download depends on the current tab se-
lection,
Download types:
• IP address parameters
• PROFINET name
• Program update
• Firmware update
• Restore device data from named .s7pbkp backup file
RUN
Put selected CPUs in RUN mode.
STOP
Put selected CPUs in STOP mode.
Flash LEDs
Flash the LEDs on selected devices. Use this feature to identify the
physical location of a device.
Reset to factory
defaults
Perform reset to factory default values on selected devices.
Memory reset
Perform a memory reset on selected CPUs.
Upload service
data
Upload service information from CPUs.
Set time
Set time in selected CPUs to your PG/PC time.
Backup
Perform a backup operation on selected CPUs of all CPU data.
Diagnostics buffer
Read the diagnostics log from one CPU.
