IP244
C79000–B8576–C866–01
7–5
1.2 Installing the Adapter Casing in an S7-400 System
To install an S5 module in an S7-400, you must first install the adapter casing
in the S7 rack. Select the address on the S5 module, and insert the module
into the adapter casing.
Use the following procedure to install the adapter casing in a rack:
1. Verify that the wire jumpers at the rear of the adapter casing are closed
(state upon delivery). These jumpers are used for test purposes and must
always be closed. Fig. 1-1 shows the locations of these jumpers.

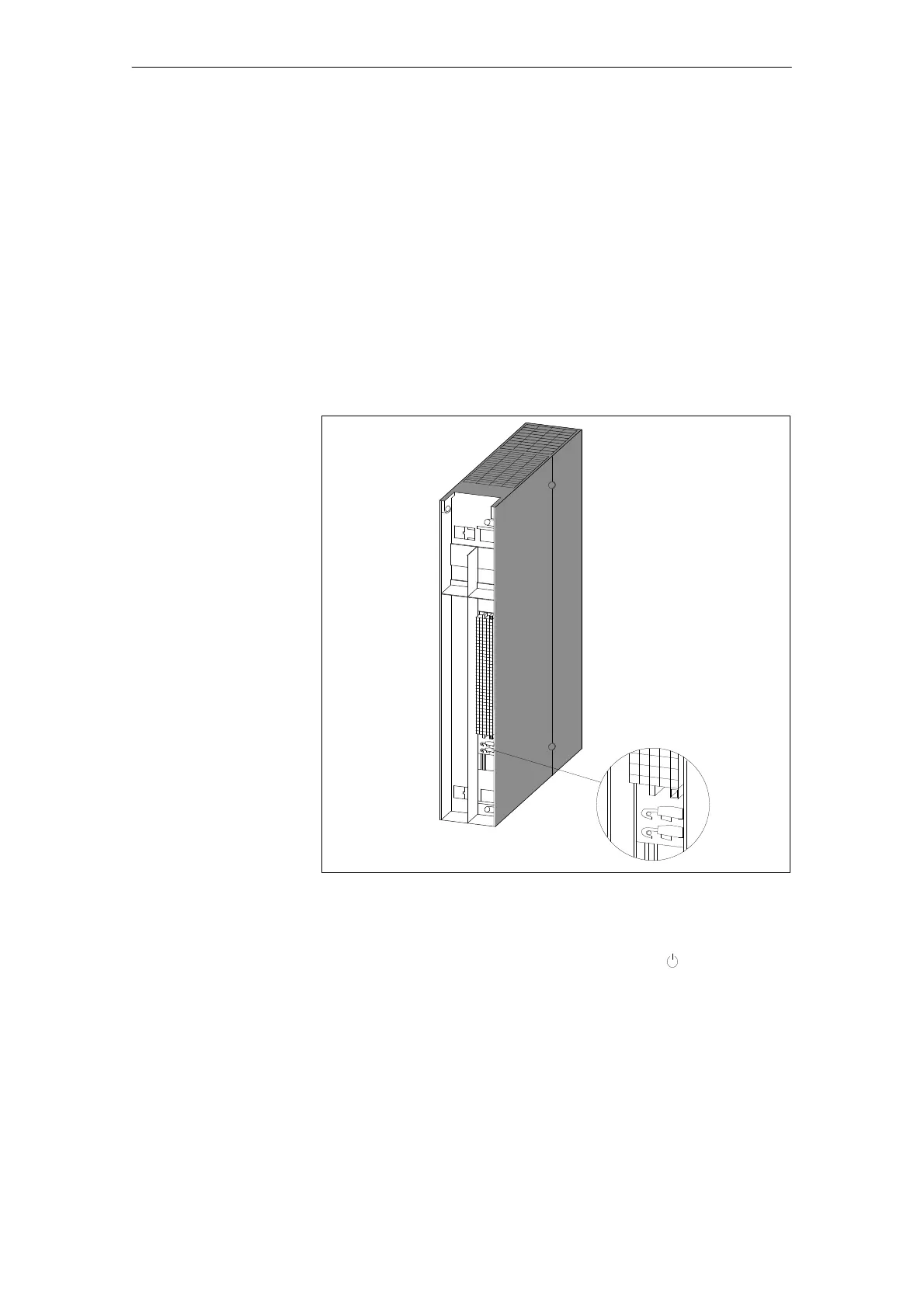

Bild 1-1 Location of the wire jumpers on the adapter casing
2. Set the CPU mode selector switch to STOP.
3. Set the standby switch on the power supply module to (0 V output
voltages).
4. Follow the instructions in the ”S7-400/M7-400 Automation System” In-
stallation Manual for installing modules in a rack.
Select the address on the S5 module.
Introduction
Installing the
adapter casing in
the rack
Selecting the ad-
dress
Adapter Casing (S5 Adapter)
