Notes for the Reader
IP244
C79000–D8576–C858–02
1 - 4
The following procedure is recommended for problem-free installation and start-up:
Load the contents of the supplied diskette into the CPU of the programmable
controller using the programmer. Then enter a parameter set.
The function block can then be used to transfer the parameters to the tempera
ture controller module. You can now test individual functions and start control
functions by connecting analog signals.
Using FB 162, communication and data exchange is now possible with the
temperature controller module. Temperature control is of course only possible
when the module has been completely wired up.
Once the module has been successfully installed, you can transfer programs from blocks OB 1,
20, 21, 22 and FB 62, 63 to your user program. You are then also in a position to modify data
blocks DB 162, 163 and 164 to suit the requirements of your system.

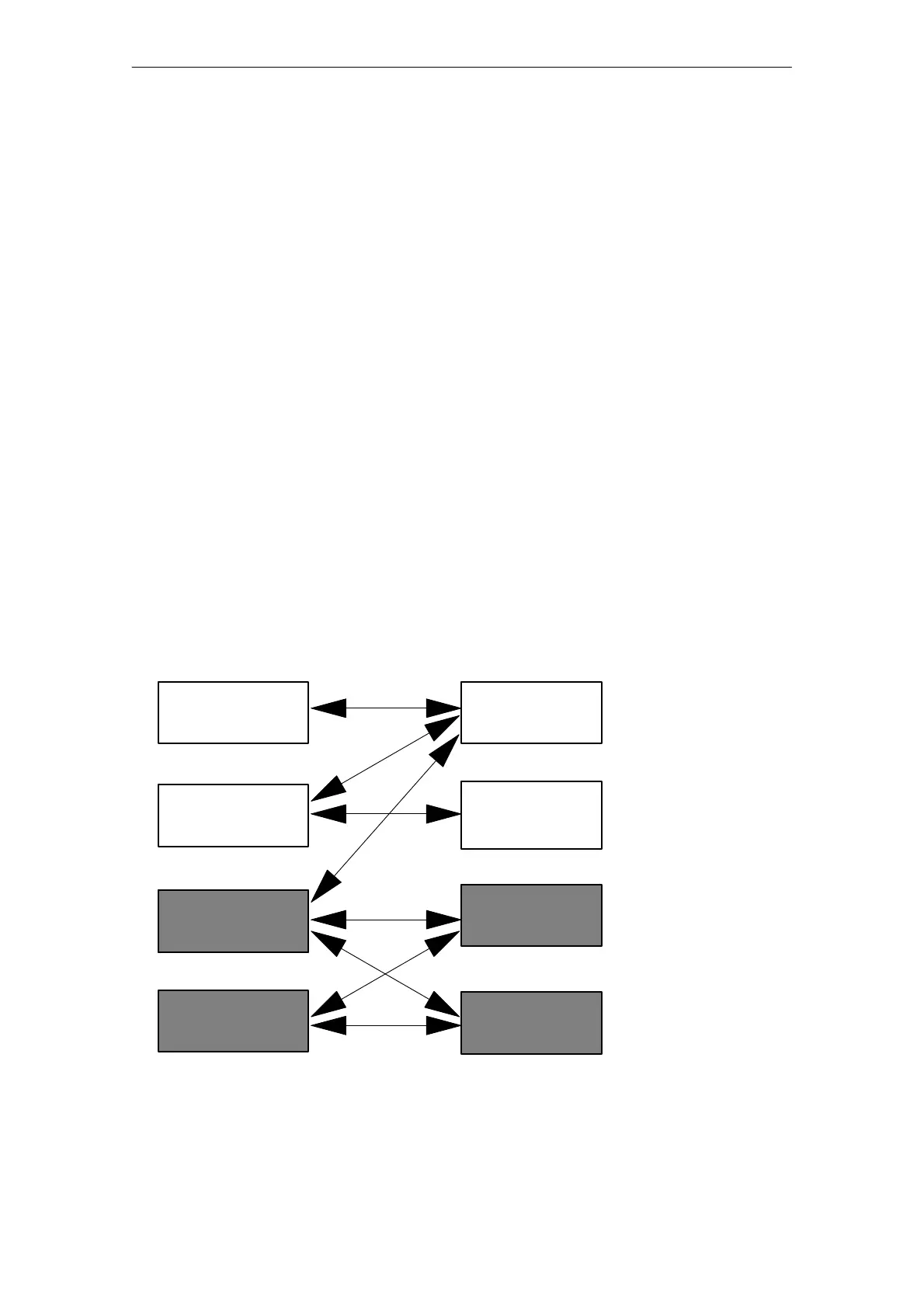

The following figure shows possible combinations between the IP 244 and the function block FB
162 in all versions delivered so far:
Versions of
the IP 244
Versions of
the FB 162
FB 162
32 messages
FB 162
64 messages
version I
FB 162
64 messages
version II
6ES5 244–
3AA21
6ES5 244–
3AA22
6ES5 244–
3AA13
6ES5 244–
3AA22
6ES5 244–
3AB31
FC 162
for S7-400
