Siemens SIMATIC TI555 - Figure 2-10 Example of Ground Connection

2-15
TI545/TI555 System Manual
Pre-installation Guidelines
A good grounding system is essential for proper operation of the
system. It is one of the most important considerations in planning
your installation.
Failure to provide a good grounding system could result in death or
serious injury to personnel and/or damage to equipment.
Ensure that you have a good grounding system when you install
your equipment.
Star
washers
Equipment
Subpanel
Step 1
Step 3
Step 2
Step 1
Step 2
To ground equipment directly to the sub-panel,
follow these steps:
1. Remove the finish from the equipment at
areas of contact.
2. T ighten the first nut.
3. T ighten the second nut.
Y ou may need a lock washer to prevent the nut
in Step 3 from backing of f.
T
o attach ground leads to the sub-panel,
follow these steps:
1. Remove the finish from the equipment at
areas of contact.
2. T ighten the bolt.
Subpanel
or user-supplied
single point
ground
Star
washers
Ground
braid
copper lugs

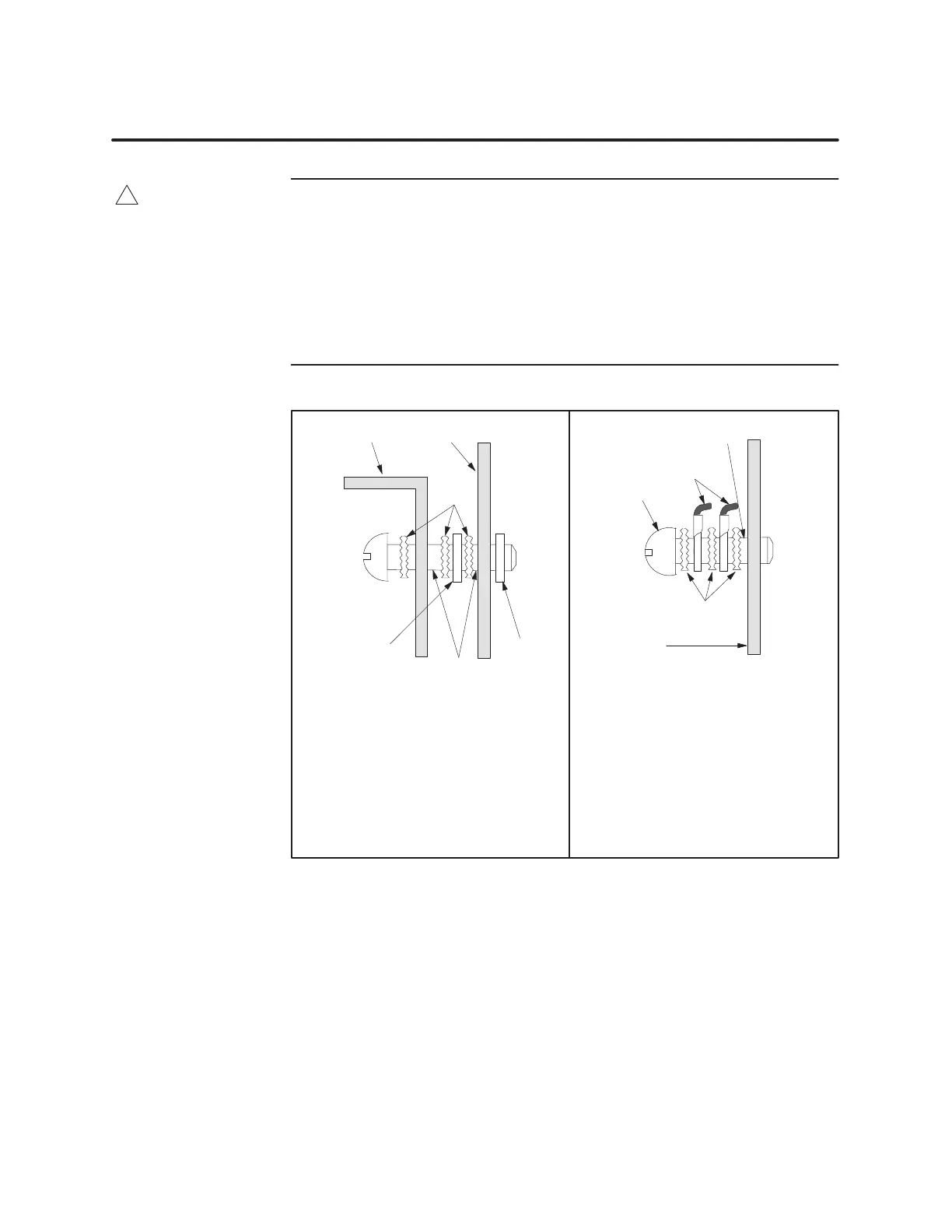

Figure 2-10 Example of Gr ound Connection
