Siemens SIMATIC TI555 - Figure 3-3 Screw-Hole Dimensions for PPX:505-6504 Bases

To Next Page

To Previous Page

3-6

Installing Series 505 System Hardware TI545/TI555 System Manual

Panel Mounting Series 505 Bases (continued)

PPX:505–6504

0.64

(16.26)

0.64

(16.26)

8.10

(205.74)

10.47

(265.94)

8.69

(220.79)

8.97

(227.81)

1.47

(37.31)

Note: in.

(mm)

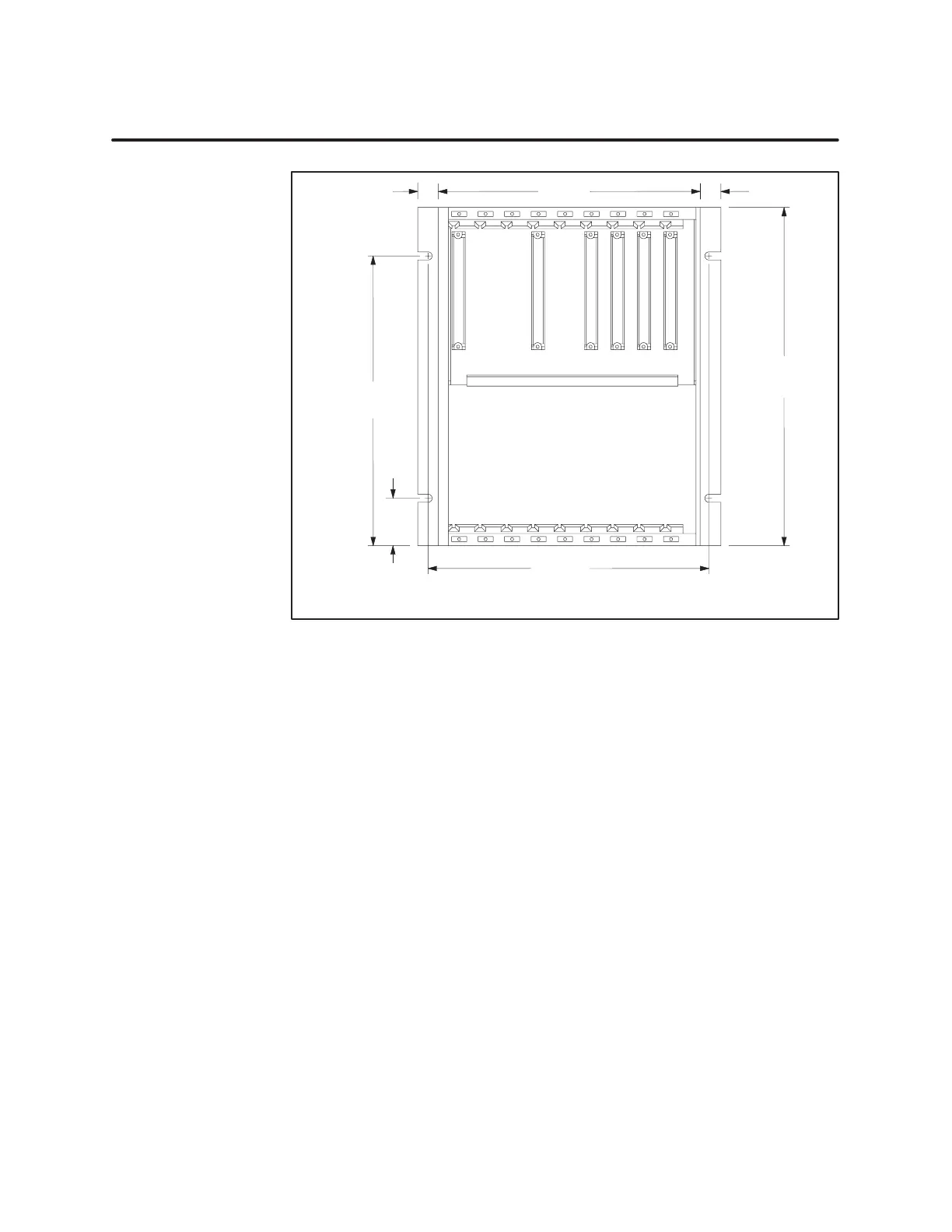

Figure 3-3 Screw-hole

Dimensions for PPX:505–6504 Bases
