Siemens SIMATIC TI555 - Figure 3-4 Screw-Hole Dimensions for PPX:505-6508 Bases

To Next Page

To Previous Page

3-7

TI545/TI555 System Manual

Installing Series 505 System Hardware

PPX:505–6508

0.64

(16.26)

11.29

(286.77)

0.64

(16.26)

10.47

(265.94)

8.97

(227.81)

1.47

(37.31)

11.93

(303.2)

Note: in.

(mm)

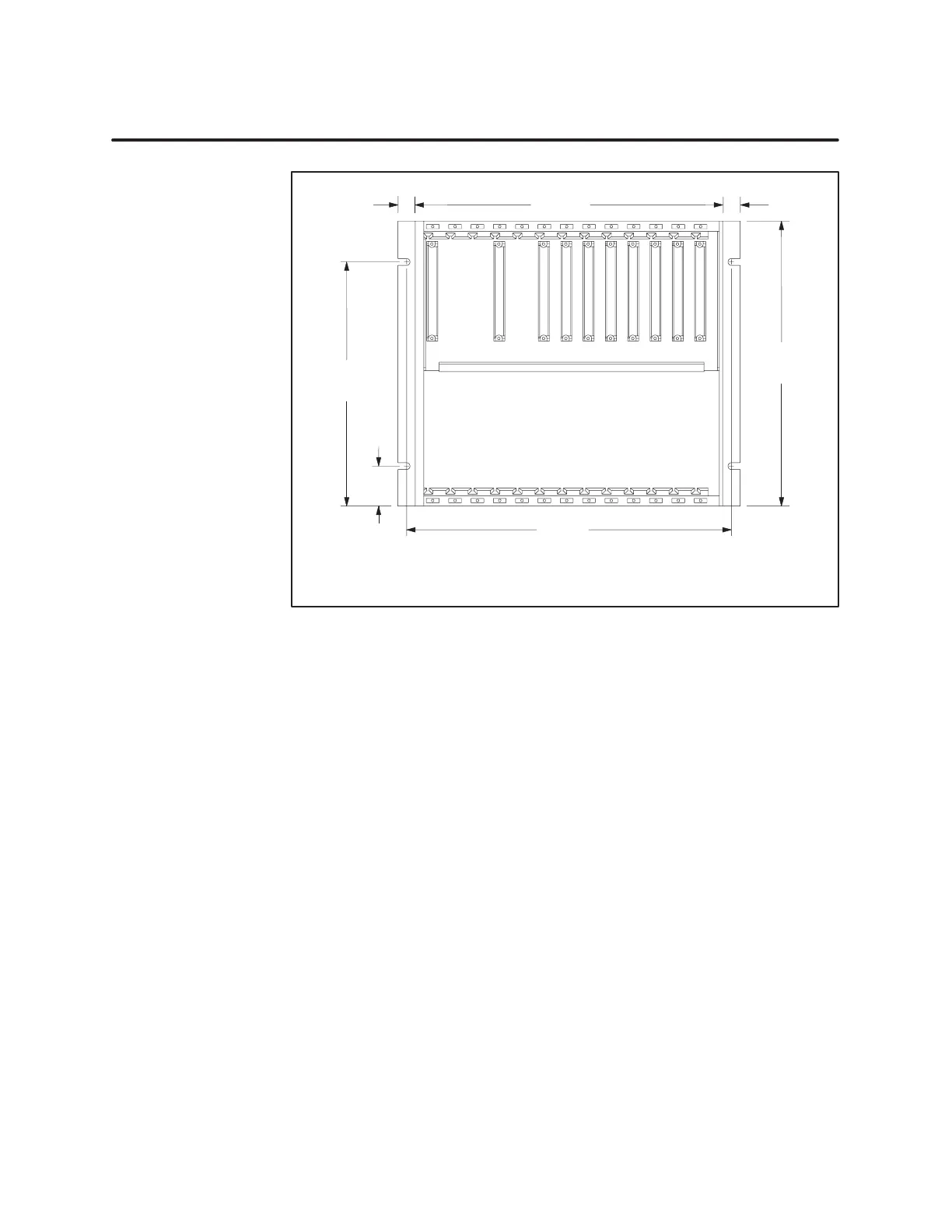

Figure 3-4 Screw-hole

Dimensions for PPX:505–6508 Bases
