Installing and connecting the device
3.5 Connecting the device
IFP V2, IFP V2 PRO, IFP V2 ETH
60 Operating Instructions, 03/2023, A5E46641410-AE

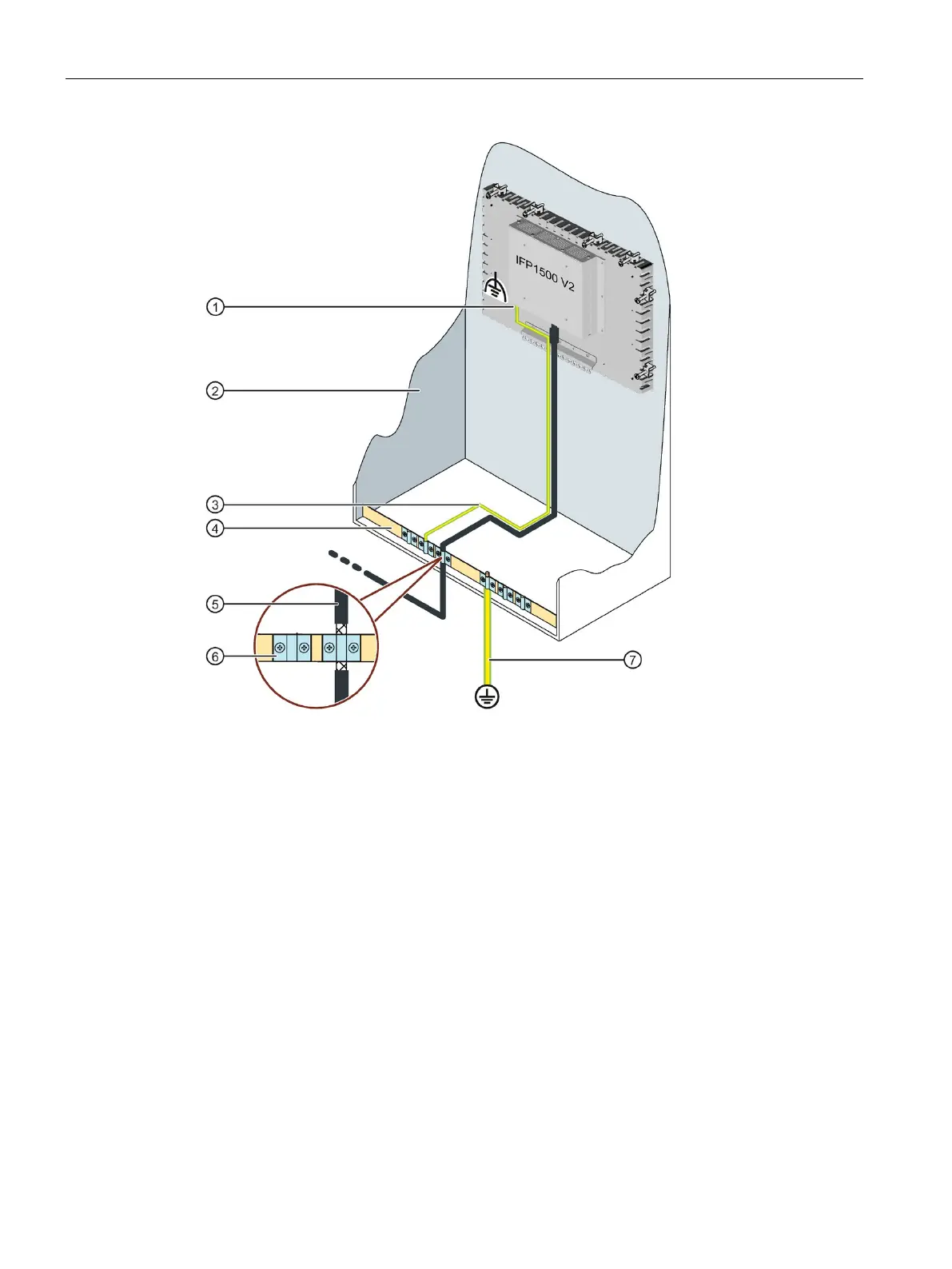

①
Connection for functional ground
②
Control cabinet
③
Equipotential bonding cable, 4 mm
2
④ Equipotential busbar for equipotential bonding cables, grounding connection and shield support
in extended mode
⑤
Data cable to the Transceiver Unit in extended mode
⑥
Cable clip
⑦
Ground connection, 16 mm
2
