3.3 Rating plate data (type plate)
Data on the rating plate

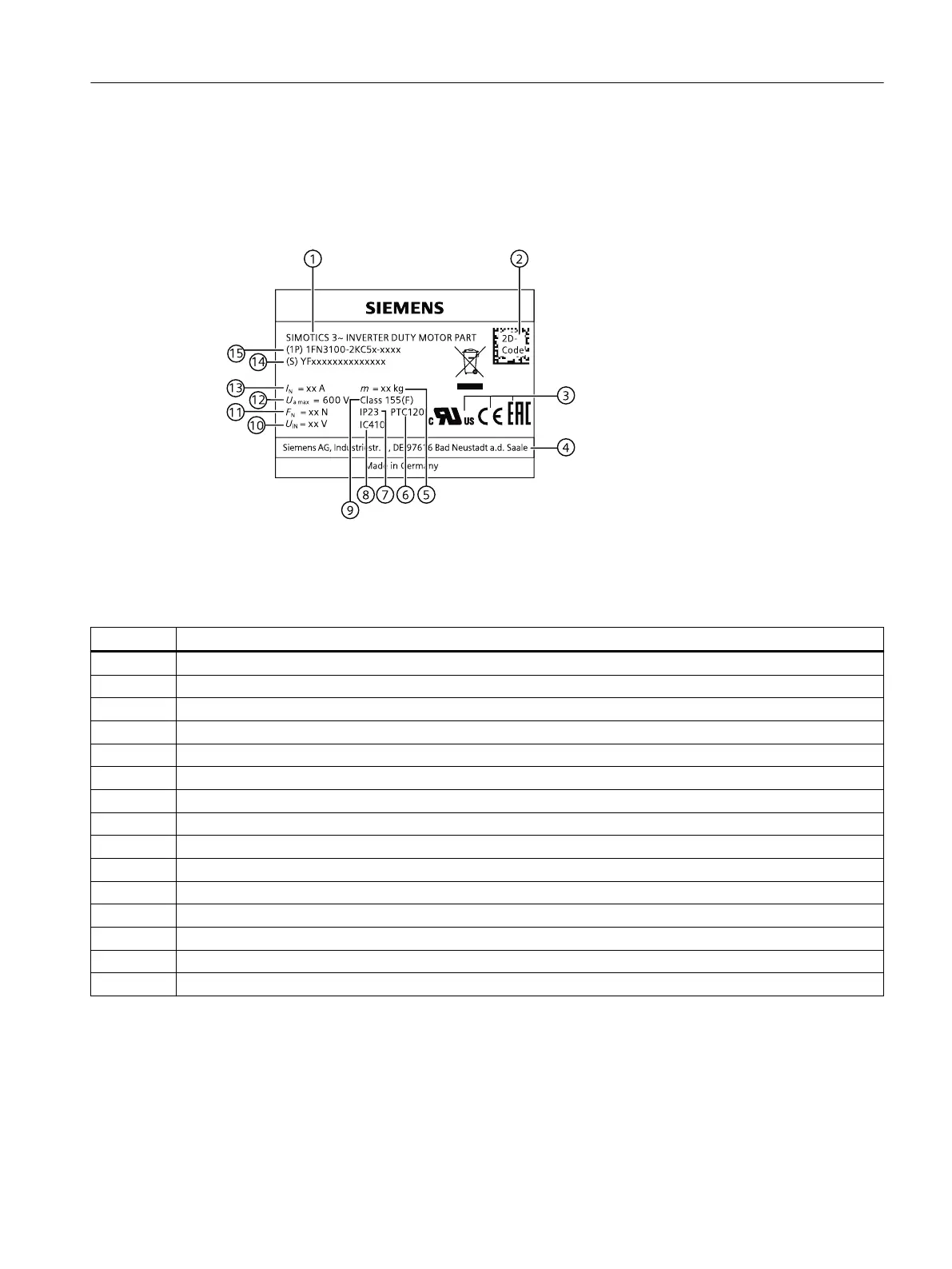

Figure3-3 Example of a primary section rating plate (schematic)
Table 3-4 Elements on the primary section rating plate
Item Description
1 Motor type
2 2D code, contains the motor data
3 Approvals/conformities
4 Manufacturer
5 Weight
6 Temperature sensors
7 Degree of protection
8 Cooling method
9 Temperature class
10 Induced voltage U
iN
at rated speed v
N
11 Rated force F
N
12 Maximum permissible rms value of the motor terminal voltage U
a max
13 Rated current I
N
14 Serial number
15 Article No.
Description
3.3Rating plate data (type plate)
Naturally-Cooled 1FN3 Linear Motors
Operating Instructions, 06/2023, A5E52220465B AB 39
