3ULPDU\VHFWLRQ
6HFRQGDU\VHFWLRQ
3ULPDU\VHFWLRQ
+RXVLQJ

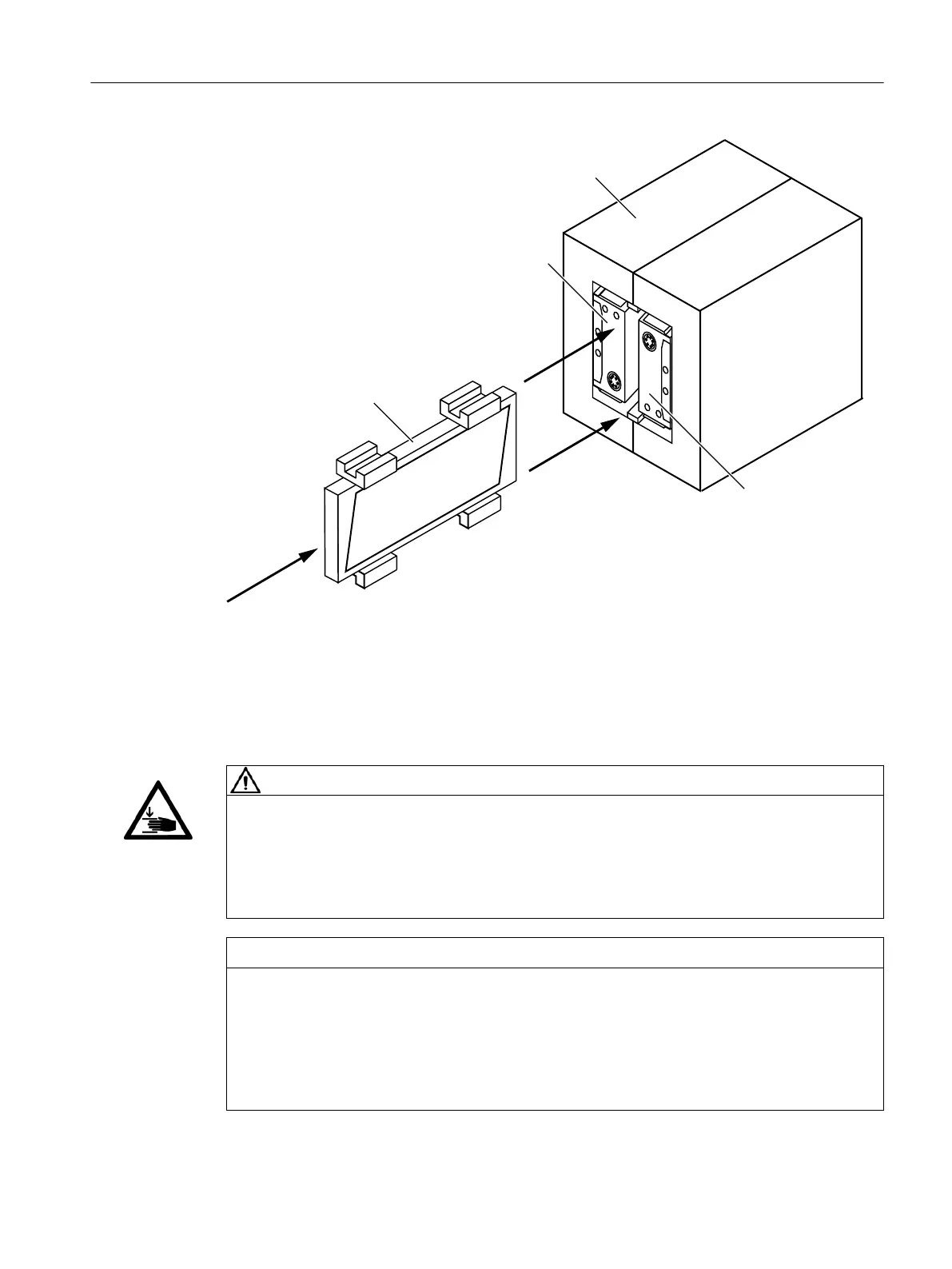

Figure5-3 Inserting the secondary section for a double-sided motor (similar diagram)
5.3.5 Motor installation by placing down motor components
WARNING
Danger of crushing when placing down the primary section (step2)
When you place the primary section on the secondary section track, high forces of attraction
(up to 7.46kN) act in the direction of the secondary section track. There is a risk of crushing!
Use a forcing-o󹪜 󹪝xture that allows the primary section to be lowered in a controlled fashion.
Make sure that your 󹪝ngers do not protrude into the danger zone!
NOTICE
Damage to the primary section and secondary section track
If the primary section is located directly on the secondary section track, the two components
can only be separated again with considerable e󹪜ort. This can result in mechanical damage.
Never place the primary section directly down onto the secondary section track.
Always place a 0.5 mm thick distance foil manufactured out of non-magnetizable material
between the primary section and secondary section.
Installation
5.3Procedure when installing the motor
Naturally-Cooled 1FN3 Linear Motors
Operating Instructions, 06/2023, A5E52220465B AB 65
