3. Push the slide over the installed secondary section track. The attraction forces are taken up
by the linear guides.
4. Install the remaining secondary section track as described in Chapter "Assembling individual
motor components (Page69)". Align the track as well. Tighten the mounting screws
according to the specications.
❒
5.3.4 Motor installation through the insertion of the slide
WARNING
Risk of crushing as result of attractive forces
In this procedure, pulling forces towards the stationary motor component occur. There is a risk
of crushing!
• Ensure that the slide plate is guided through the threading unit before the magnetic forces
of attraction take eect.
• Make sure that your ngers do not protrude into the danger zone!
Requirements
This type of installation is only intended for setting up motors in a double-sided arrangement.
For this type of installation, normally you require a threading xture provided by the customer.
Procedure
• Slide the movable part of the motor into the stationary housing with the already installed

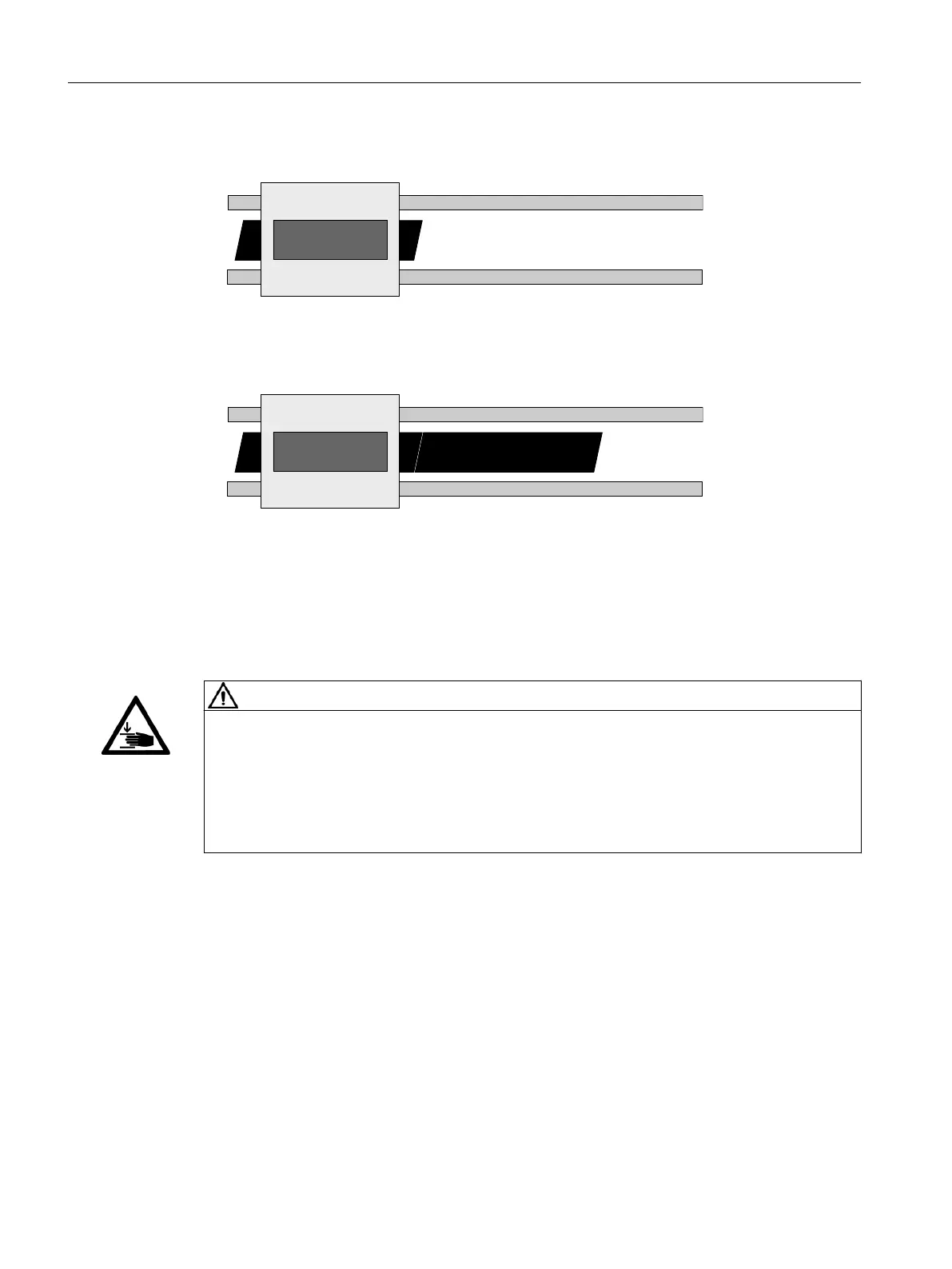

motor parts. See the following gure.
Installation
5.3Procedure when installing the motor
Naturally-Cooled 1FN3 Linear Motors
64 Operating Instructions, 06/2023, A5E52220465B AB
