The maximum screw-in depth is speci󹪝ed by the threaded holes in the customers machine
bed.
5.3 Procedure when installing the motor
Installing a linear motor is subdivided into the following steps:
1. Check the installation height before you install the motor.
2. Clean the mounting surfaces of the motor parts and the machine.
3. Install the primary sections, secondary sections and components.
4. Check the motor installation.
5.3.1 Maintaining the installation height
Installation height for motor installation

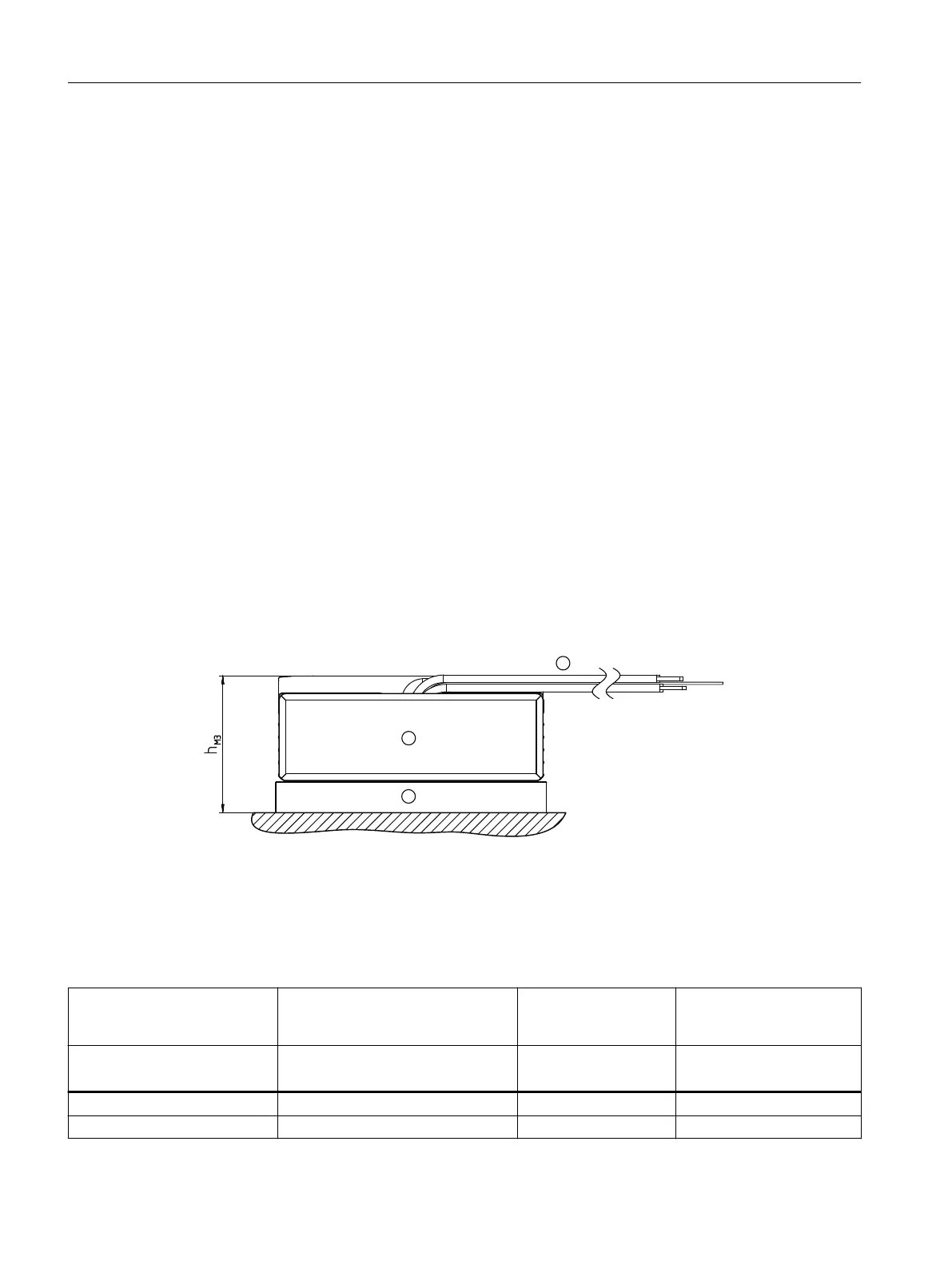

The following diagram shows the installation height for motor installation. The associated
values are speci󹪝ed in the following table.
Primary section
Secondary section
Electrical connections
Figure5-2 Installation height for motor installation
Table 5-3 Installation height for motor installation corresponding to the previous diagram
Installation height without secon‐
dary section
Installation height
with secondary sec‐
tion cover
Tolerance of the installa‐
tion height
Size h
M3
in mm
h
M3
in mm
in mm
1FN3050 1FN3100 58 58.4 +0.2
1FN3150 60 60.4 +0.2
Installation
5.3Procedure when installing the motor
Naturally-Cooled 1FN3 Linear Motors
62 Operating Instructions, 06/2023, A5E52220465B AB
