Motor components
Motors of the 1FN3 product family consist of the following components:
• Primary section:
– Basic component of the linear motor
– With 3-phase winding
– Cooling ribs to dissipate the power loss
• Secondary sections:
– Mounted side-by-side these form the reactive part of the motor
– Consist of a steel base with attached permanent magnets
– The casing provides a large degree of protection against corrosion and external e󹪜ects





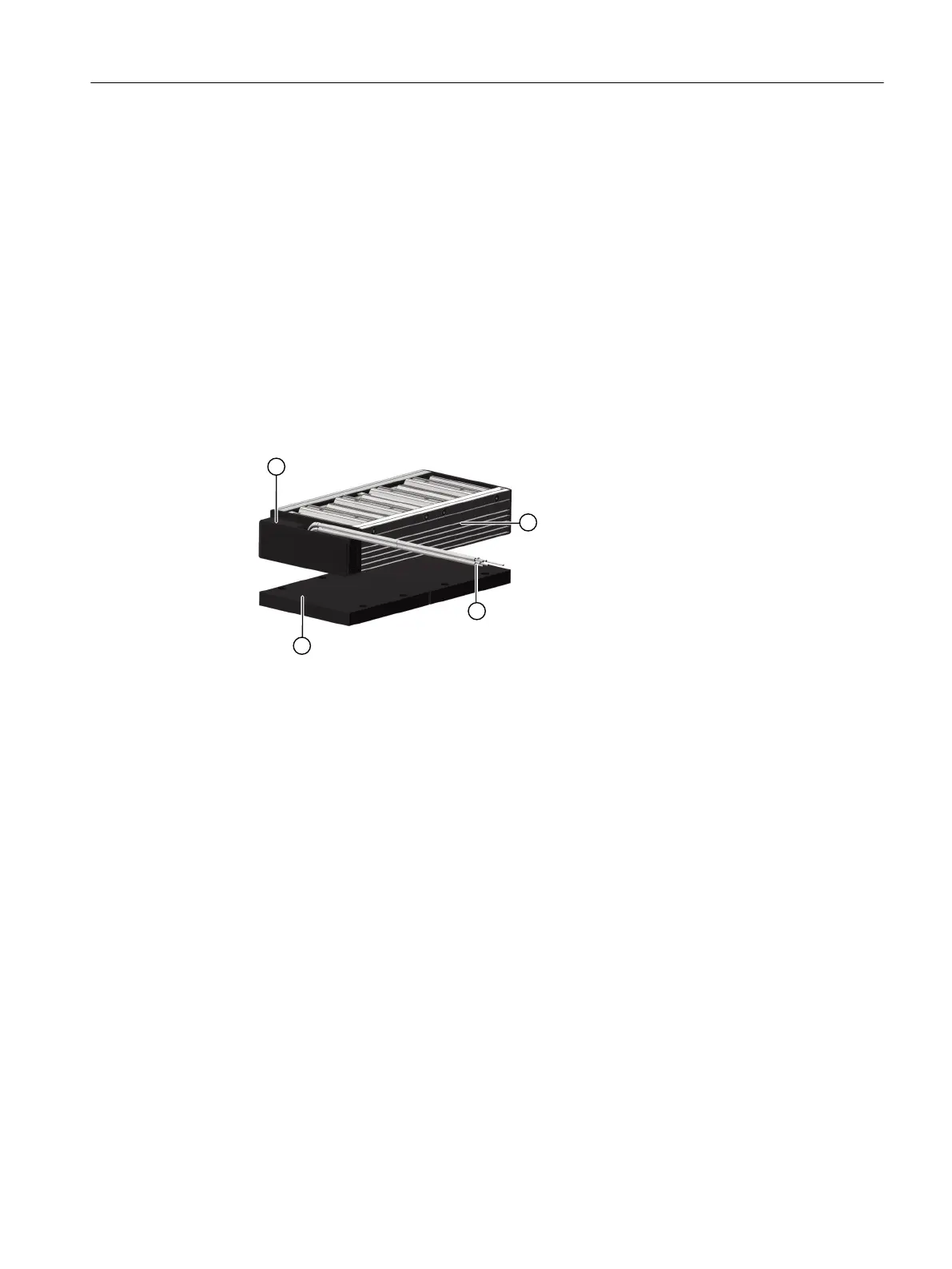

① Primary section ② Cooling ribs ③ Electrical connection ④ Secondary section
Figure3-5 Components of a naturally cooled 1FN3 linear motor
3.4.2 Scope of delivery
3.4.2.1 Linear motors
Primary section
• Primary section
• One rating plate (attached); additional loose rating plate
• Accessory pack note (safety accessory pack)
• Safety warning instructions (pictograms)
Description
3.4Design
Naturally-Cooled 1FN3 Linear Motors
Operating Instructions, 06/2023, A5E52220465B AB 41
