NOTICE
Motor destroyed as a result of overtemperature
The motor can be destroyed if the motor winding overheats.
• Connect Temp‑S.
• Evaluate Temp‑S.
• Ensure that the shutdown time is not exceeded.
'94-
'9#%
Marking for cables with open core ends
Connector marking (socket)

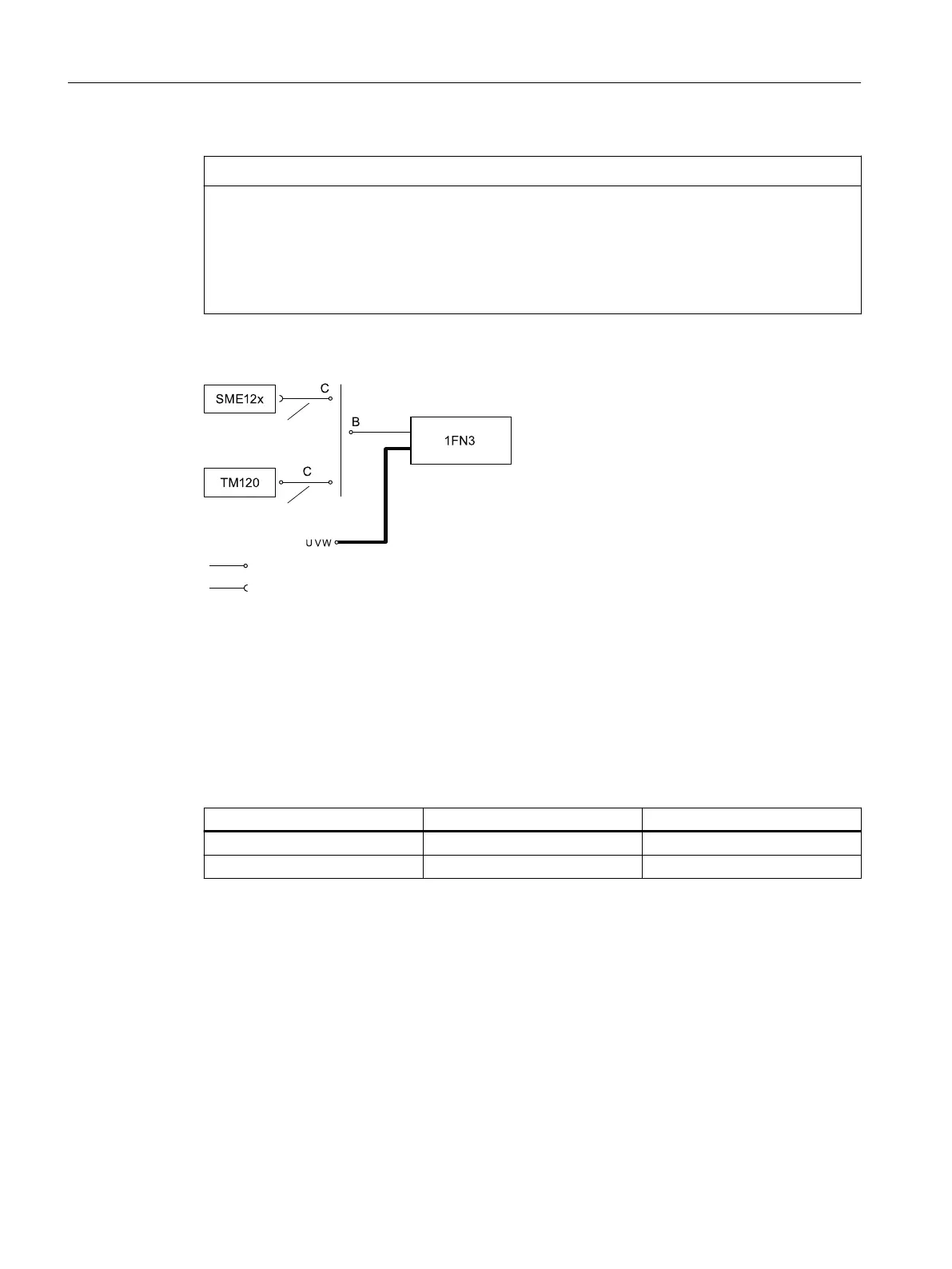

Figure6-4 Connecting temperature sensors for the SINAMICSS120 drive system
The following table lists the interfaces of the signal cable permanently connected at the
primary section with open core ends.
The interfaces and conductor colors are applicable for:
• Temperature sensor cable 6FX8008-1BD00-... (sold by the meter) to the TM120
• Temperature sensor cable 6FX8002-2SL00-... to the SME12x
Table 6-4 Interfaces and conductor colors
Interface Core color B Core color C
1TP1: PTC Gray Green
1TP2: PTC Gray Yellow
Electrical connection
6.5Signal connection
Naturally-Cooled 1FN3 Linear Motors
94 Operating Instructions, 06/2023, A5E52220465B AB
