Interfaces
3.2 DRIVE-CLiQ interfaces
SIMOTION D4x5-2
Manual, 11/2010
41
Position of connectors
B
A
8
1

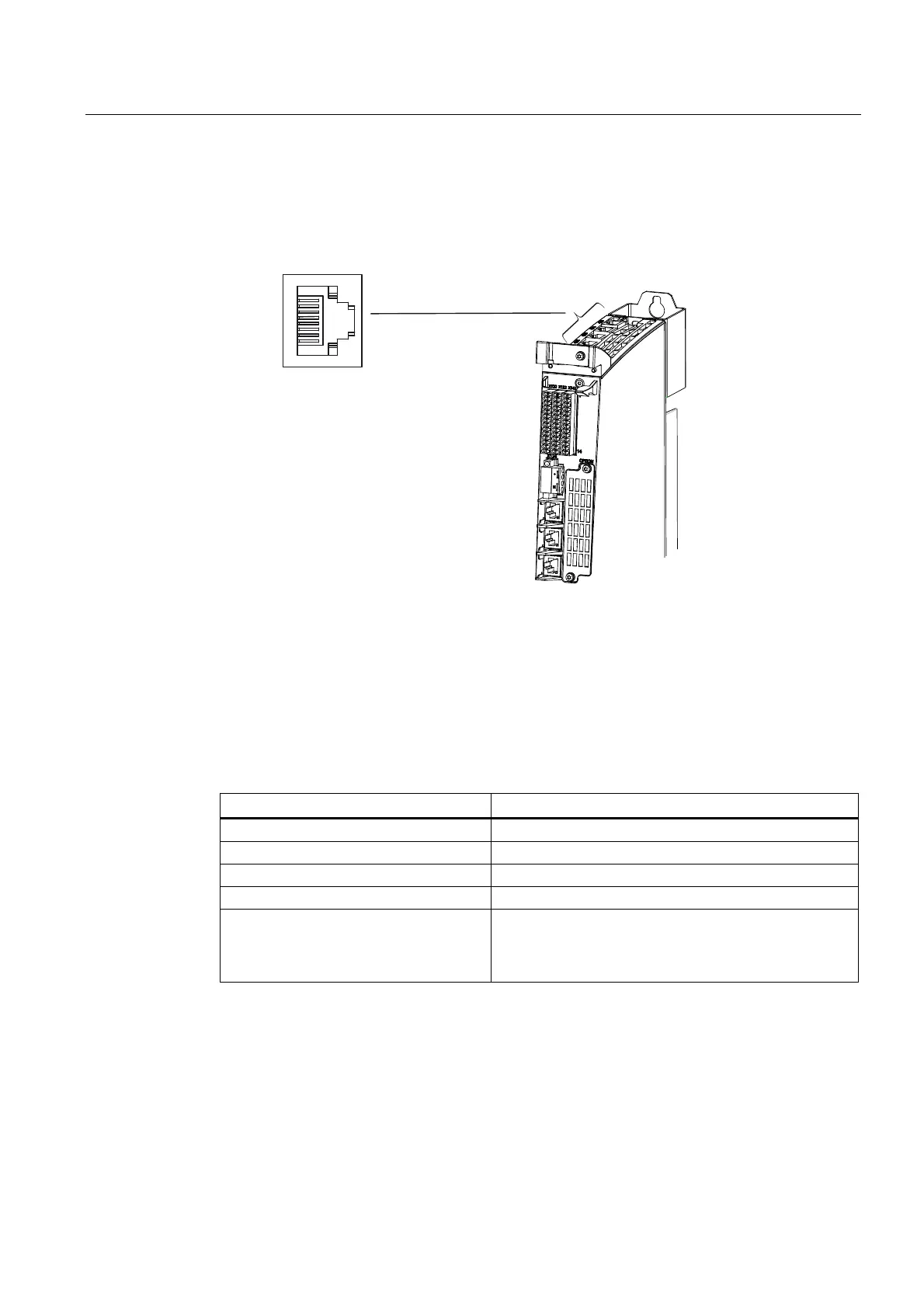

Figure 3-1 Position of the DRIVE-CLiQ interfaces on the D4x5-2
Characteristics
Table 3- 3 X100 – X105
Characteristic Type
Connector type DRIVE-CLiQ connector (RJ45 socket)
Cable type DRIVE-CLiQ standard (inside the control cabinet)
Cable type MOTION CONNECT (outside the control cabinet)
Max. cable length 100 m
Dust protection blanking plugs for sealing
unused DRIVE-CLiQ ports
Five blanking plugs contained in the D4x5-2 scope of
delivery
Blanking plugs (50 pcs) order number:
6SL3066-4CA00-0AA0
