Interfaces
3.8 Slot for CompactFlash Card
SIMOTION D4x5-2
Manual, 11/2010
59
3.8 Slot for CompactFlash Card
Characteristics
Type: 50-pin connector
This interface should only be used to insert a special SIMOTION CompactFlash card
(CF card).
&RYHU
6ORWZLWKLQVHUWHG&)FDUG

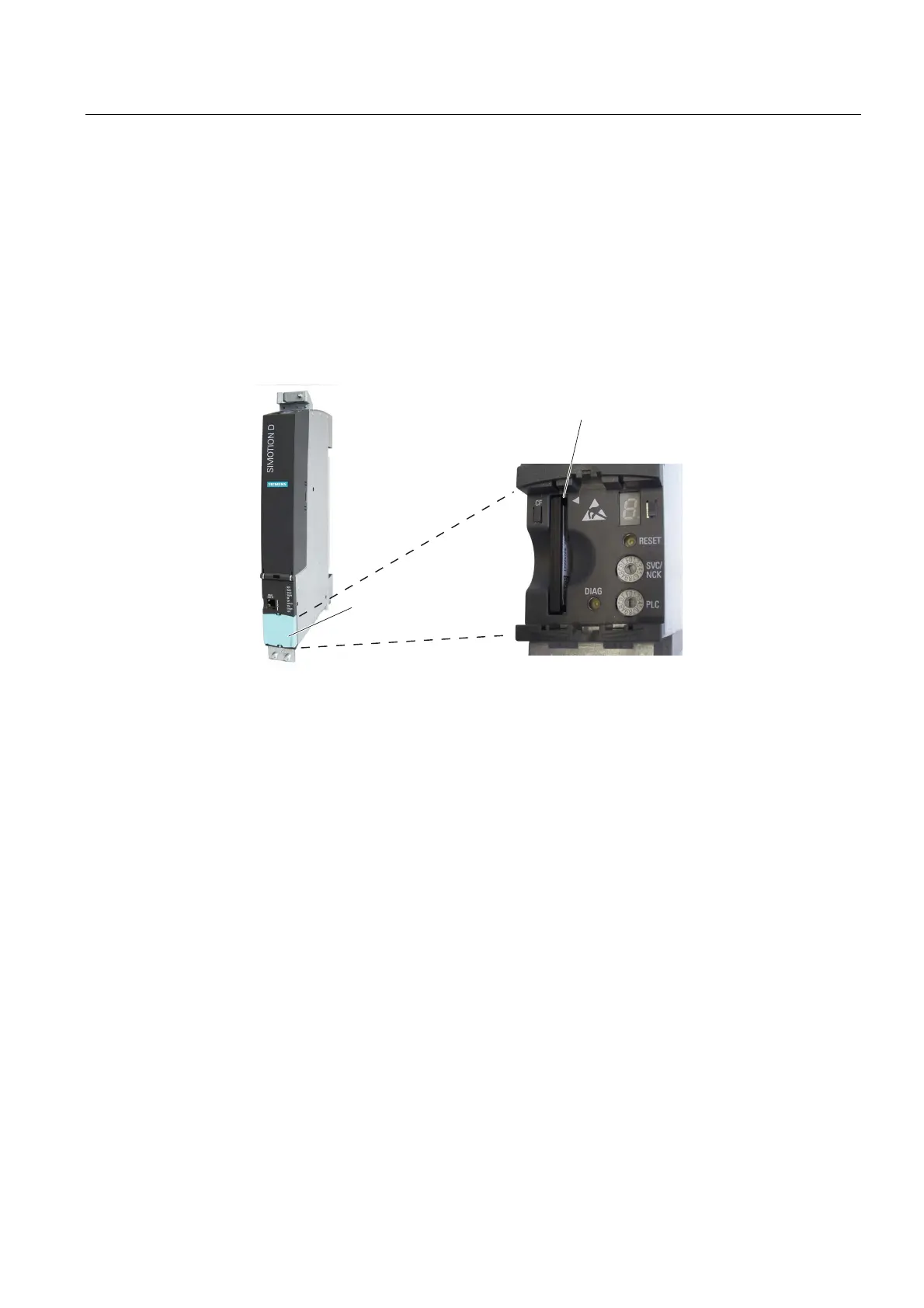

Figure 3-8 Slot for the CF card
Consult the relevant references for detailed information about the SIMOTION CF card in
Section CompactFlash card (Page 28).
3.9 Measuring sockets
Application
The measuring sockets X141 (T0, T1 and T2) are on the lower side of the module and are
used to output analog signals. Any interconnectable signal can be output via SINAMICS on
every measuring socket on the control unit.
