Technical data of the D4x5-2
4.8 Input and output circuit
SIMOTION D4x5-2
Manual, 11/2010
73
An error message is output if the backup function is defective. When the power is switched
ON, the clock then resumes at the time set at the factory.
If the SIMOTION D4x5-2 is reset to its factory setting, the clock is also reset to the "default
setting when delivered".
4.8 Input and output circuit
Protective circuit

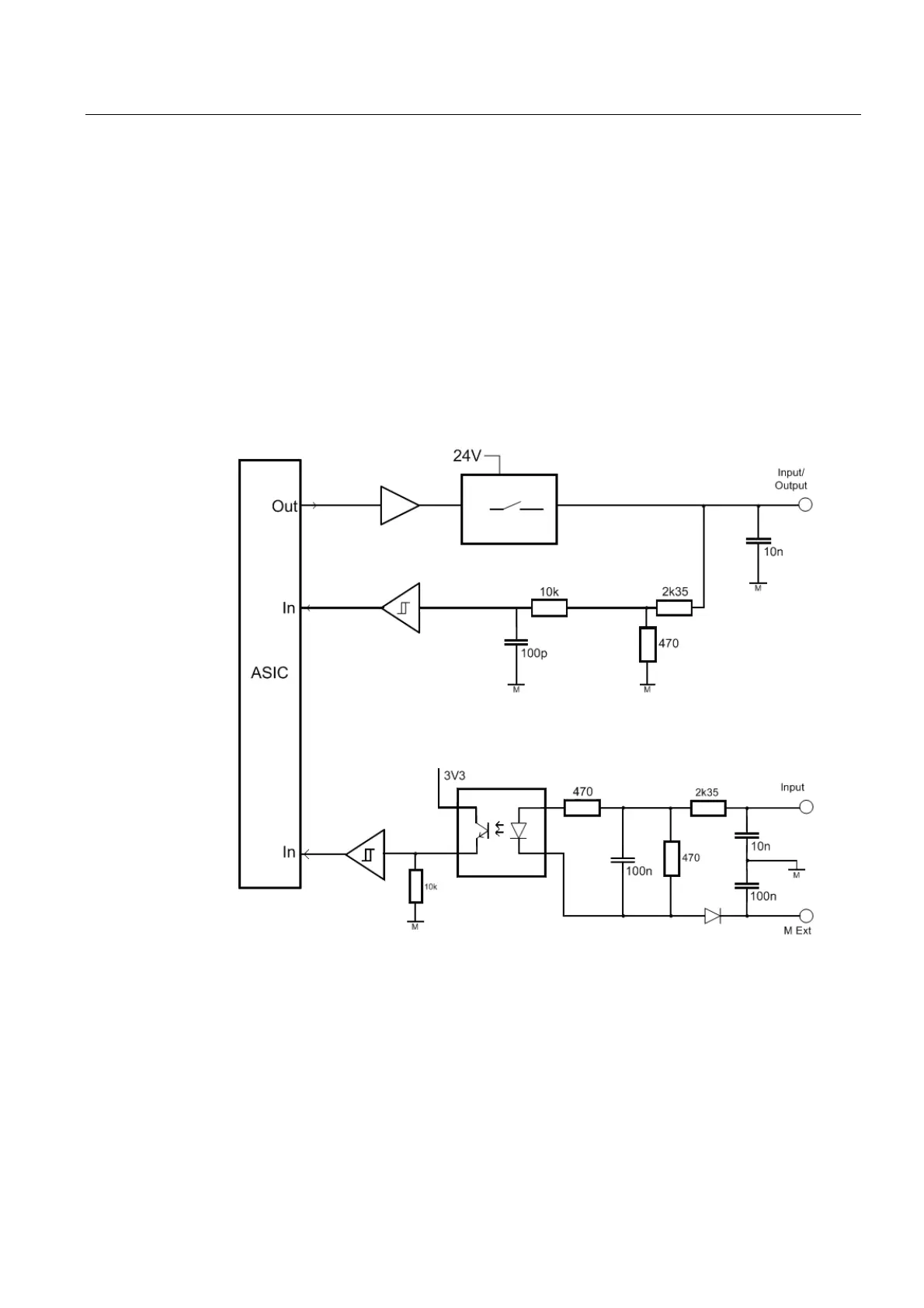

Figure 4-1 SIMOTION D4x5-2/CX32-2 input and output circuits
