Dimension drawings
5
5.1 Dimension drawing of D445-2 DP/PN and D455-2 DP/PN







   


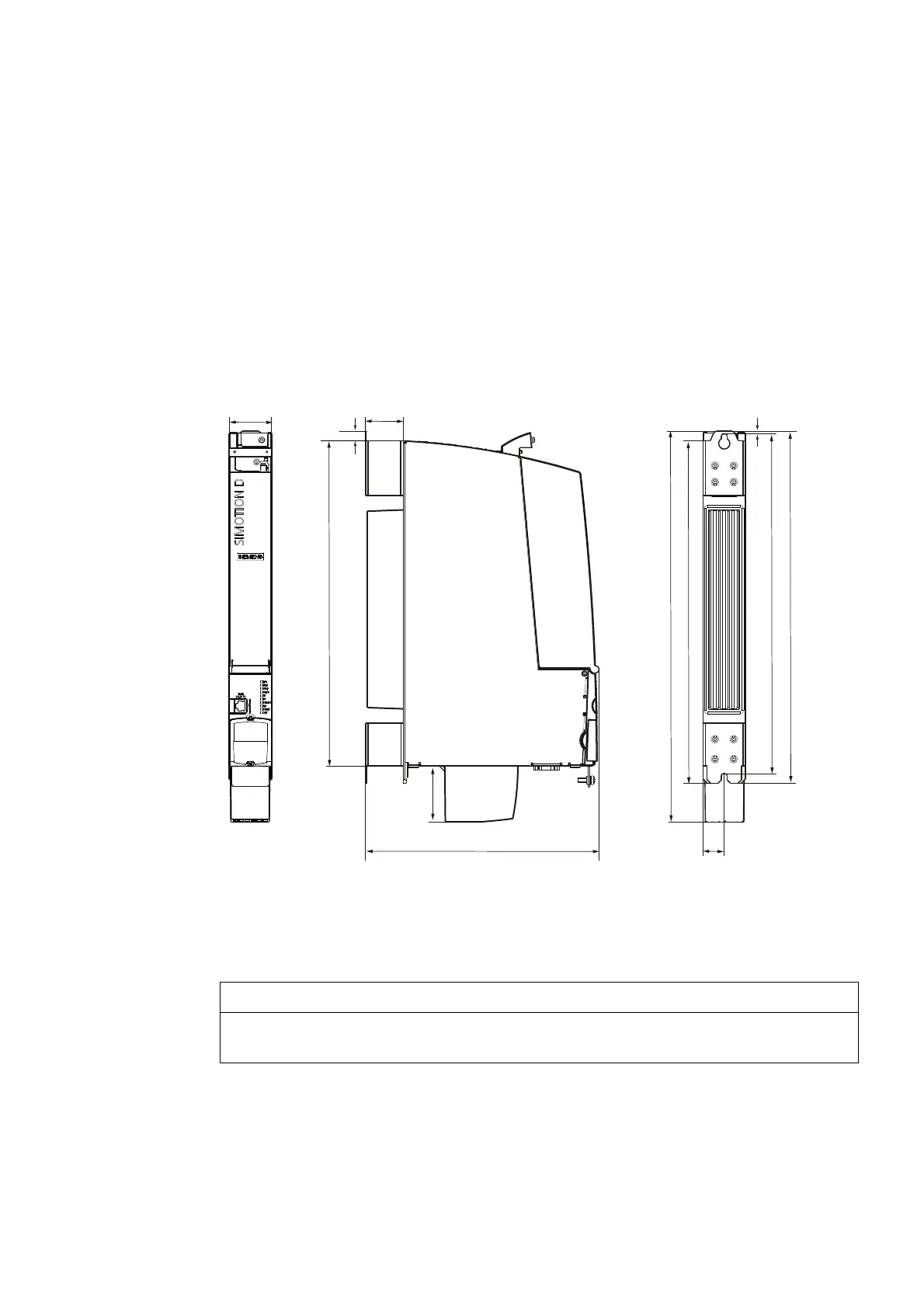

Figure 5-1 Dimension drawing of D445-2 DP/PN and D455-2 DP/PN
SIMOTION D445-2 DP/PN and D455-2 DP/PN must always be operated with a double
fan/battery module.
NOTICE
The 80 mm clearances above and below the components must be observed. The unit
protects itself from overheating by shutting down.
