3.10 USB interfaces
The USB interfaces are used for upgrading the SIMOTION D4x5-2 via a USB stick.
Table 3- 20 Interfaces X125 and X135
Characteristics Versions
Connector type Double USB socket – type A
Version USB 2.0
Power supply 5 V (short-circuit proof)
Current carrying capacity 0.5 A per channel
The USB interfaces are located on the front of the SIMOTION D4x5-2.
86%LQWHUIDFHV;OHIW
;ULJKW

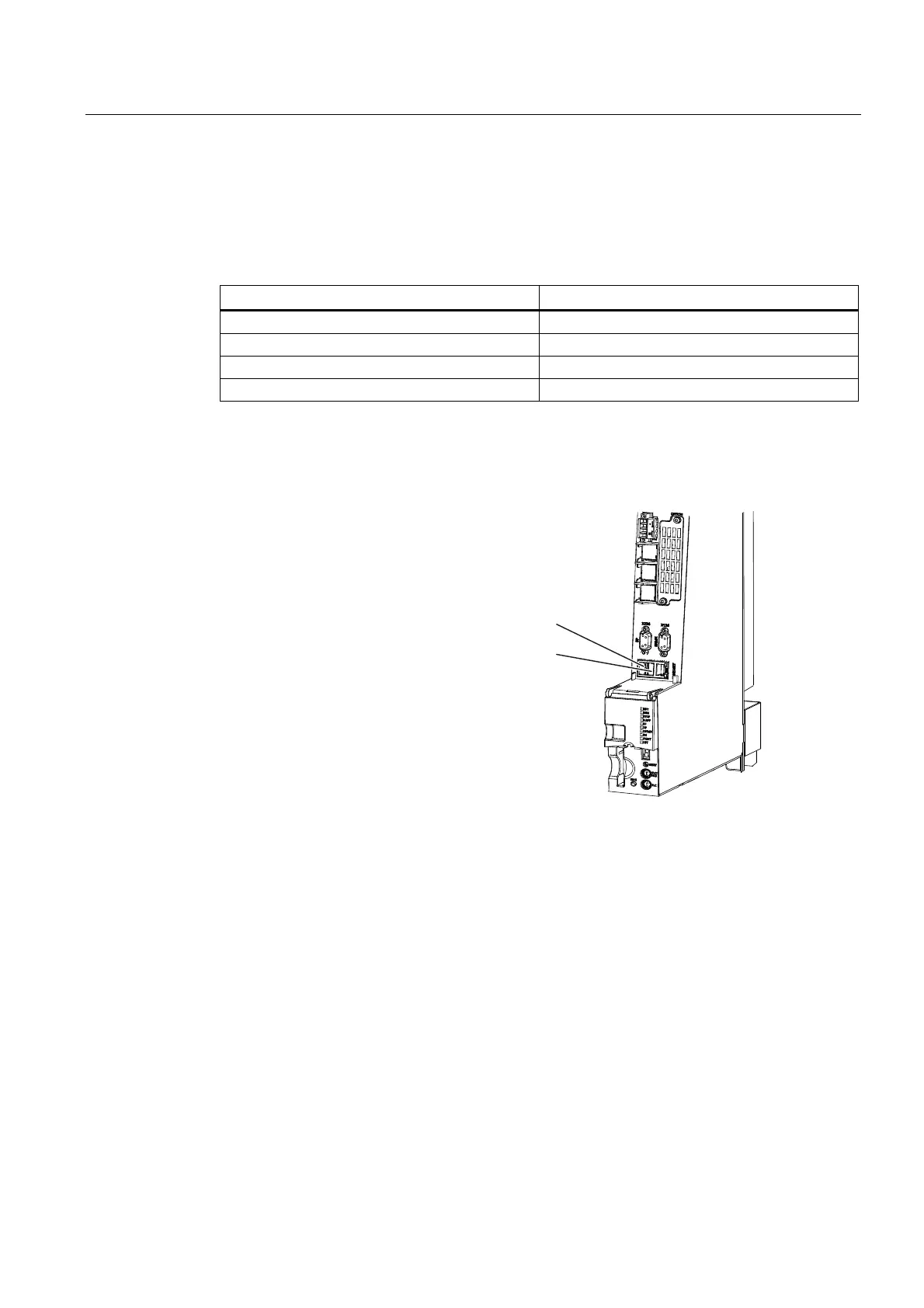

Figure 3-10 Position of the USB interfaces X125, X135
