Interfaces
3.5 Digital inputs/outputs
SIMOTION D4x5-2
Manual, 11/2010
49
3.5 Digital inputs/outputs
3.5.1 Features
Interface characteristics
The digital inputs and outputs on the X122, X132 and X142 connectors are for the
connection of sensors and actuators.
Table 3- 9 Wiring of X122, X132 and X142
Characteristics Type
Connector type Mini Combicon
Connectable cable types and
conductor cross-sections
Rigid
Flexible
Flexible with end sleeve
AWG
0.2 mm
2
to 1.5 mm
2
0.2 mm
2
to 1.5 mm
2
0.25 mm
2
to 1.5 mm
2
24 to 16
Stripped length 10 mm
Tool Screwdriver 0.4 x 2.0 mm
Max. cable length 30 m
Max. current carrying capacity
(ground)
8 A
Position of connectors

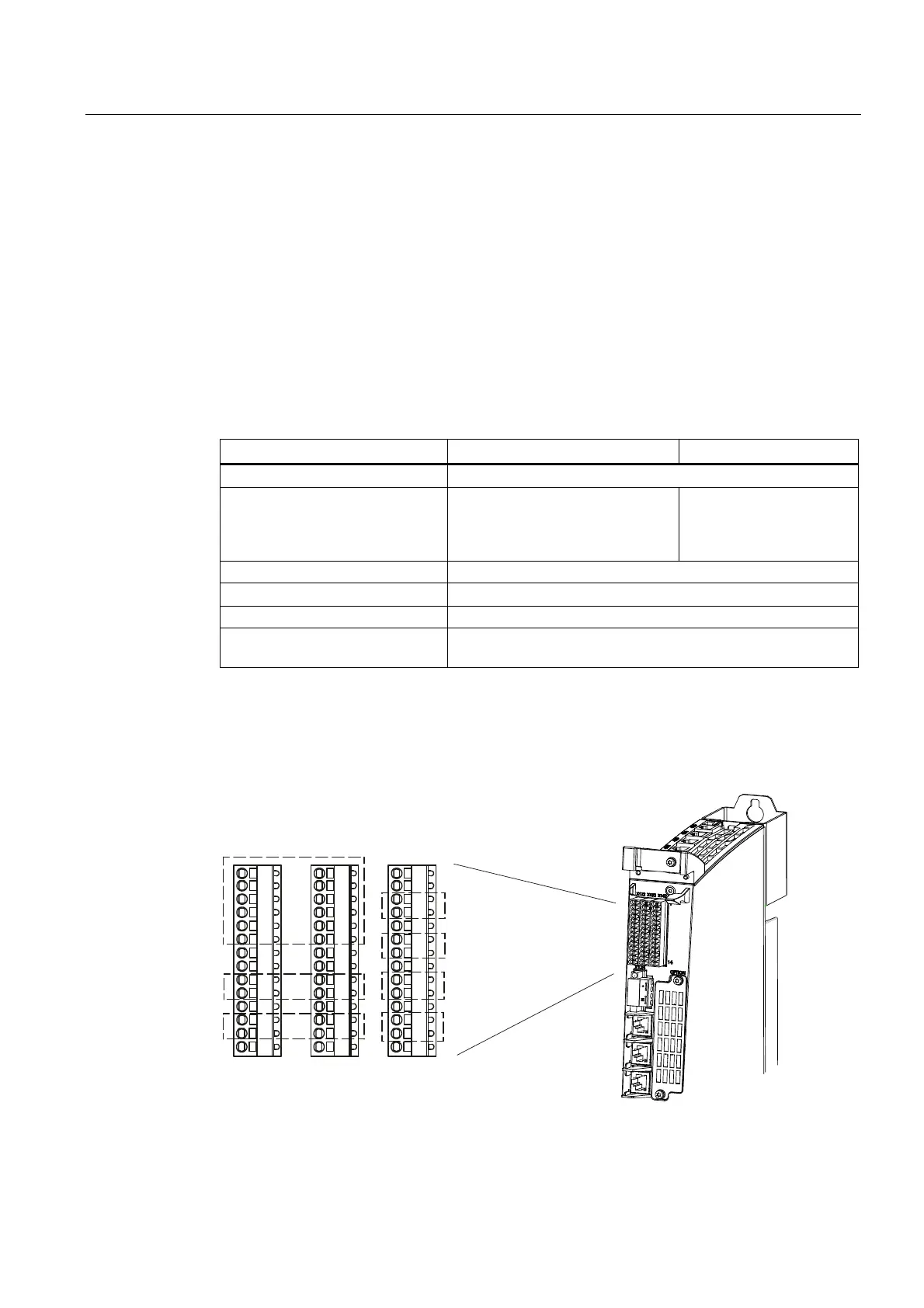

The following figure shows the position of the interface connectors on the D4x5-2 and the
distribution of the various digital inputs and outputs.
'LJLWDOLQSXWV
SLQV
'LJLWDOLQSXWV
GLJLWDORXWSXWV
SLQV
DQG
SLQV
'LJLWDOLQSXWV
GLJLWDORXWSXWV
SLQV
SLQV
SLQV
SLQV
;; ;
Figure 3-4 Position of the digital interfaces X122, X132 and X142
