Interfaces
3.7 PROFIBUS DP interfaces
SIMOTION D4x5-2
56 Manual, 11/2010
Position of power supply interface

0
-XPSHU
3RZHUVXSSO\FRQQHFWRU

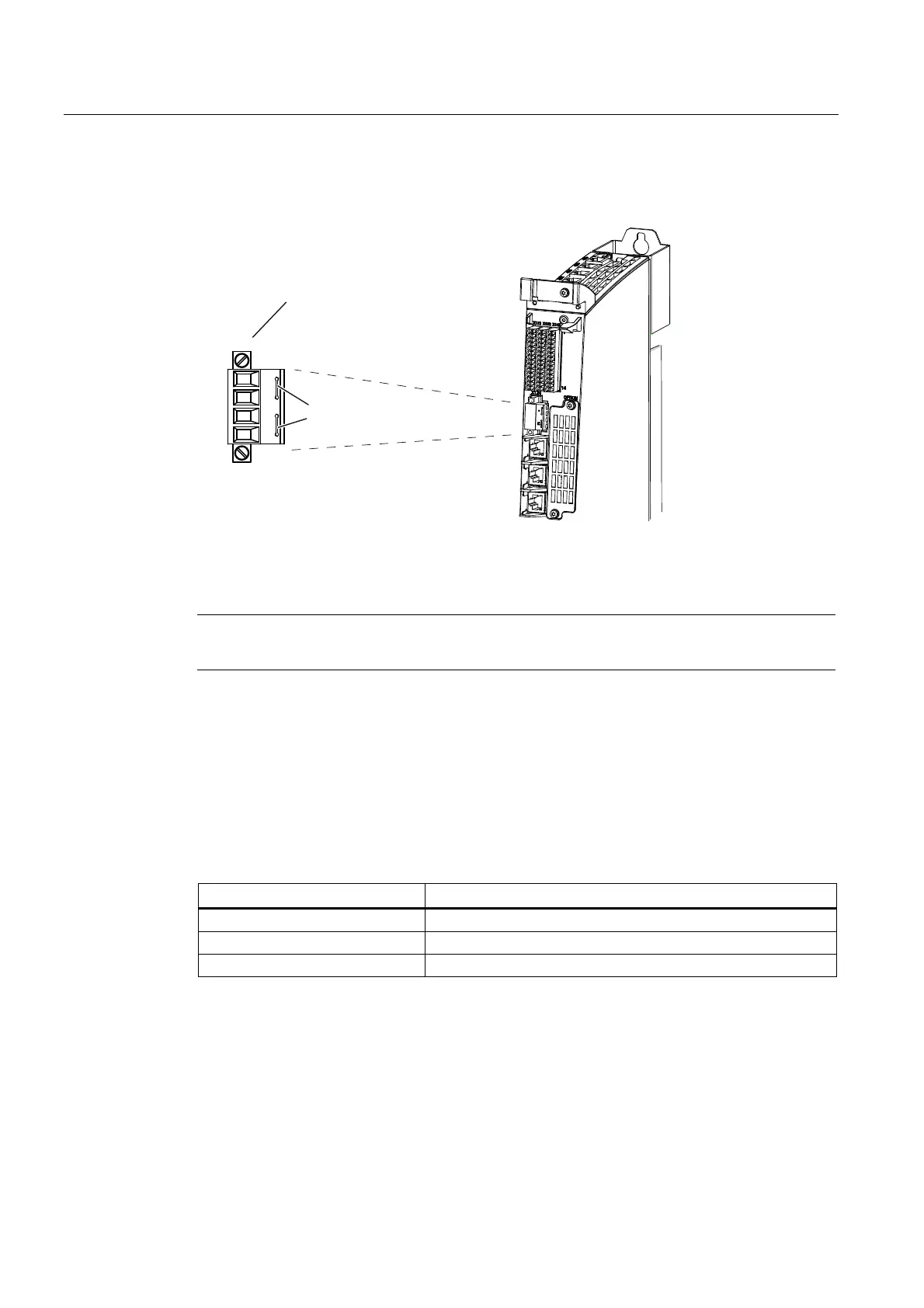

Figure 3-6 Position of the power supply interface
Note
The power supply terminal strip must be screwed on tightly using a flat-bladed screwdriver.
3.7 PROFIBUS DP interfaces
Characteristics of the interface
Table 3- 16 Interfaces X126 and X136
Characteristics Type
Connector type 9-pin Sub-D socket
Cable type PROFIBUS cable
Max. cable length 100 m at 12 Mbit/s
