Supplementary system components
6.2 Fan/battery module
SIMOTION D4x5-2
Manual, 11/2010
81
3. Push the plastic lug into the slot-like cutout on the lower side of the control unit.
4. Tilt the double fan/battery module up until the two latches snap into place at the front.
Note the two contact strips that are lead through cutouts of the control unit.
This establishes the electrical connection between the double fan/battery module and the
control unit.
&RQWDFWVWULS
3ODVWLFOXJ
*XLGHOXJV
'RXEOHIDQEDWWHU\
PRGXOH
/DWFK
'RXEOHIDQEDWWHU\
PRGXOHPRXQWHG

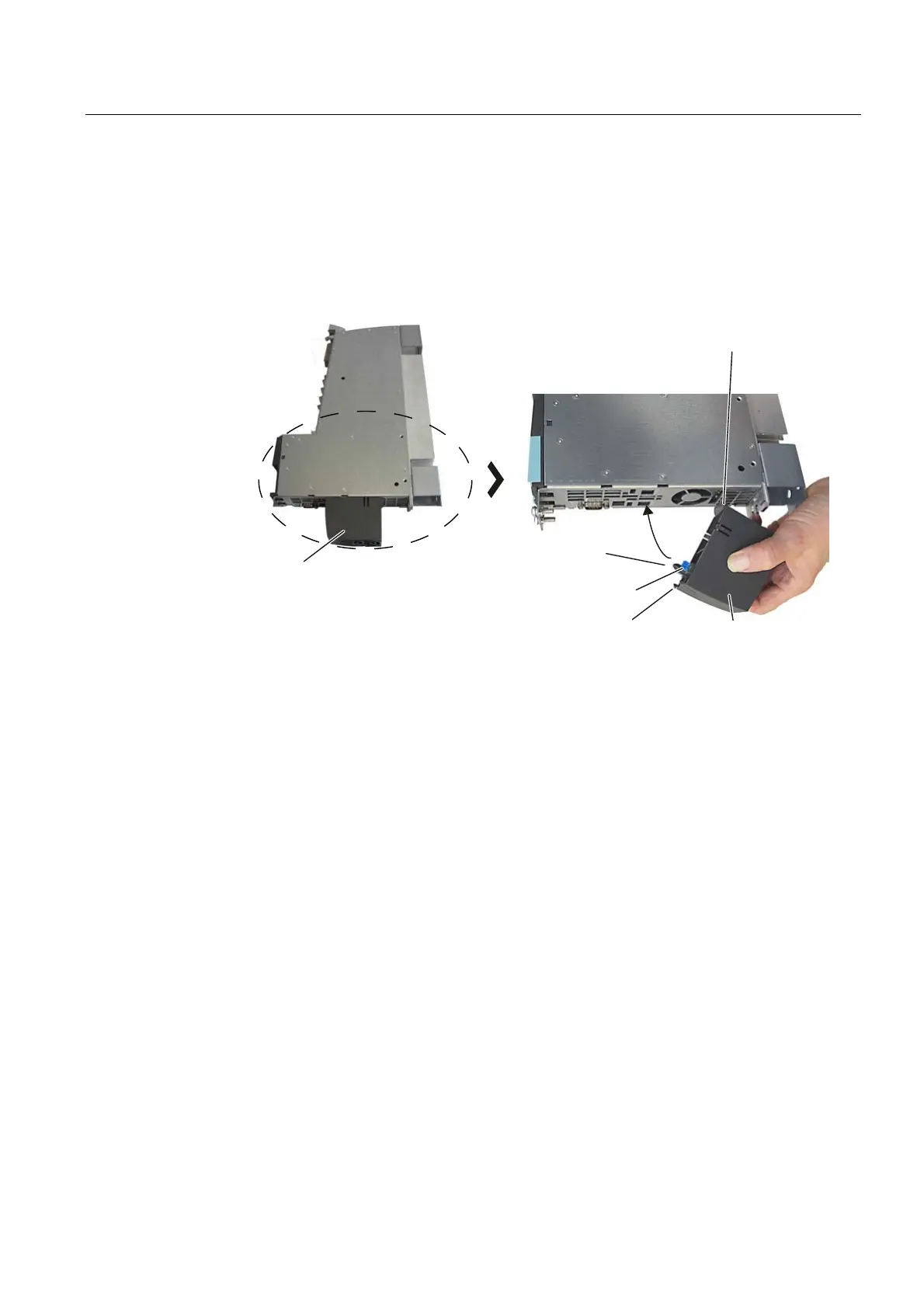

Figure 6-2 Installing the double fan/battery module
