3. Click "Assume control priority". The "Assume Control Priority" dialog box is opened.

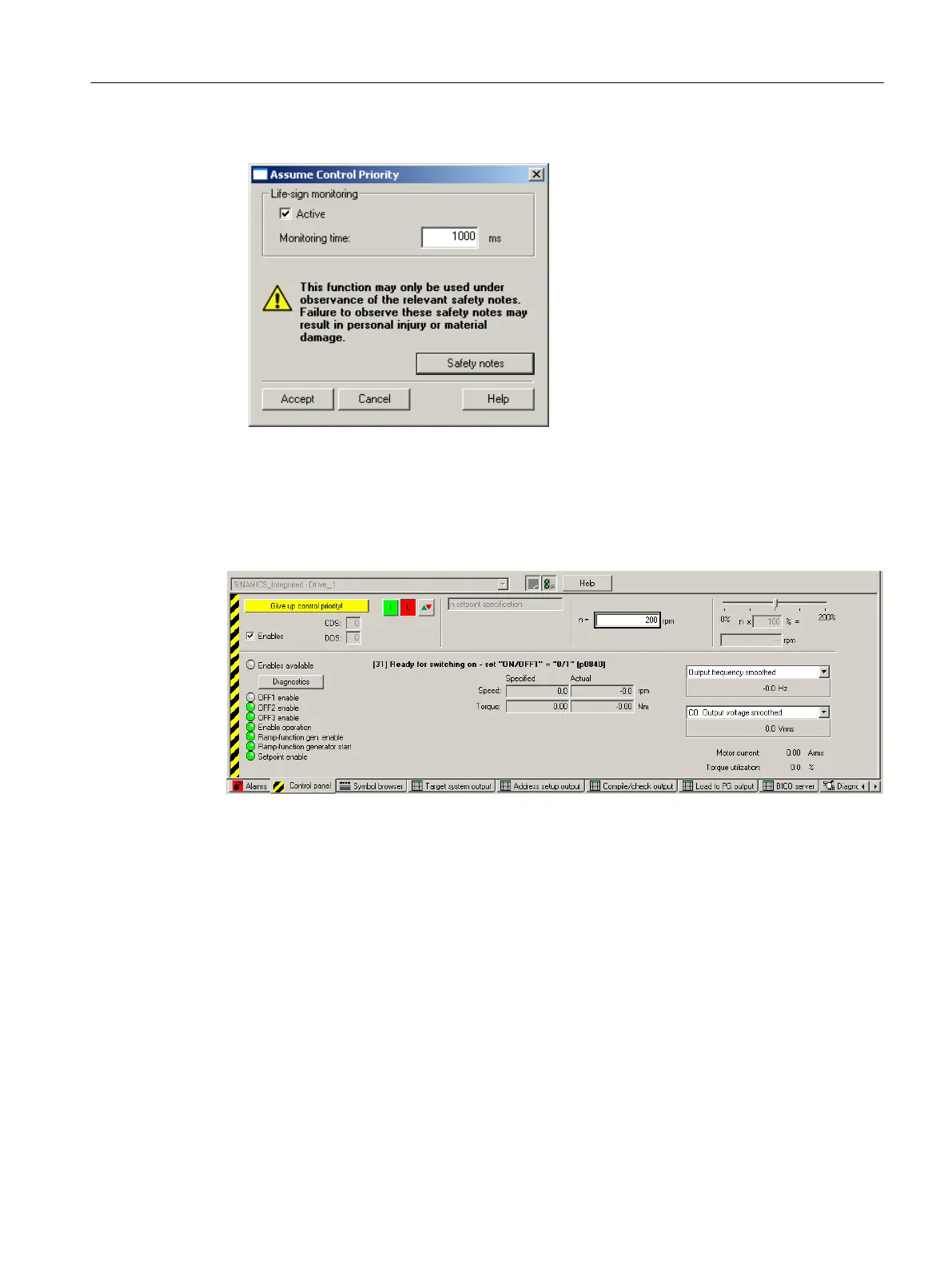

Figure 7-18 Assuming control priority
4.
Read the notes and confirm these with "Accept."
5. Activate the "Enables" checkbox to enable the drive.
All enables are now set with the exception of ON/OFF1.
6. Enter the desired setpoint in the entry field, and, as a safety setting, slide the scaling to 0%.
Figure 7-19 Entering a setpoint
7. Click the "Drive On" button. The green "Enable available" LED lights up. If you move the
slider to the right, the drive rotates. The current motor speed is displayed in "Actual."
8. Click "Drive Off" to stop the drive after you completed the test.
9. Deactivate the enable and click the "Give up control priority" button to deactivate control
from the PG/PC.
Commissioning (software)
7.5 Testing the configured drive using the drive control panel
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 185
