SIMOTION D410-2

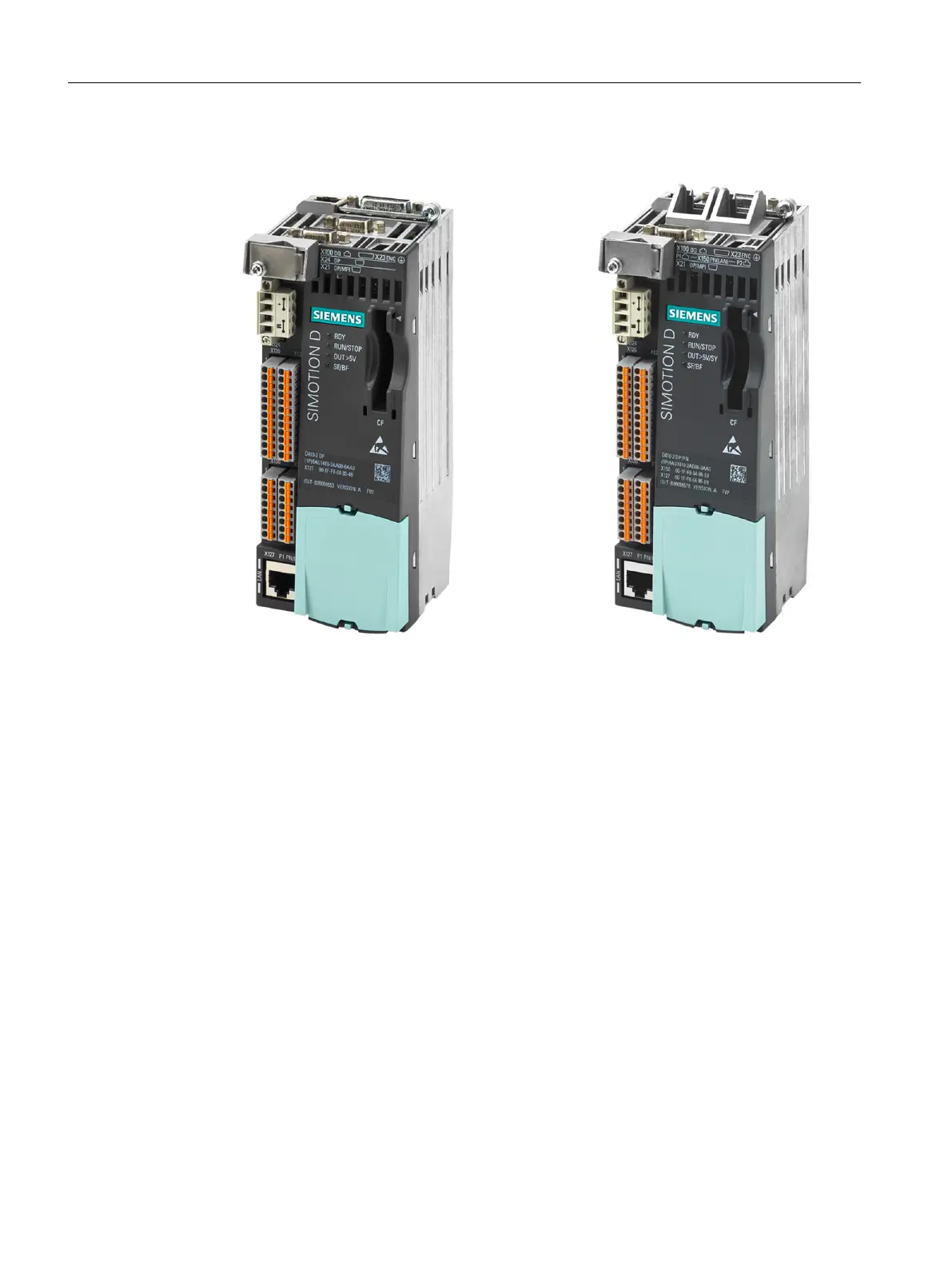

Figure 2-1 SIMOTION D410-2 DP (pictured on left), SIMOTION D410-2 DP/PN (pictured on right)
SIMOTION D410-2 is a compact Control Unit for single-axis applications.
The Control Unit is snapped directly on to the SINAMICS Power Module in blocksize format
and has an integrated drive control for either one servo, one vector or one V/f axis.
SIMOTION
D410-2 can be extended with additional SINAMICS S110/S120 control units (e.g.
CU310‑2) and so can also be used for smaller multi-axis applications (e.g. with 2 - 3 axes).
Description
2.1 System overview
SIMOTION D410-2
24 Commissioning and Hardware Installation Manual, 01/2015
