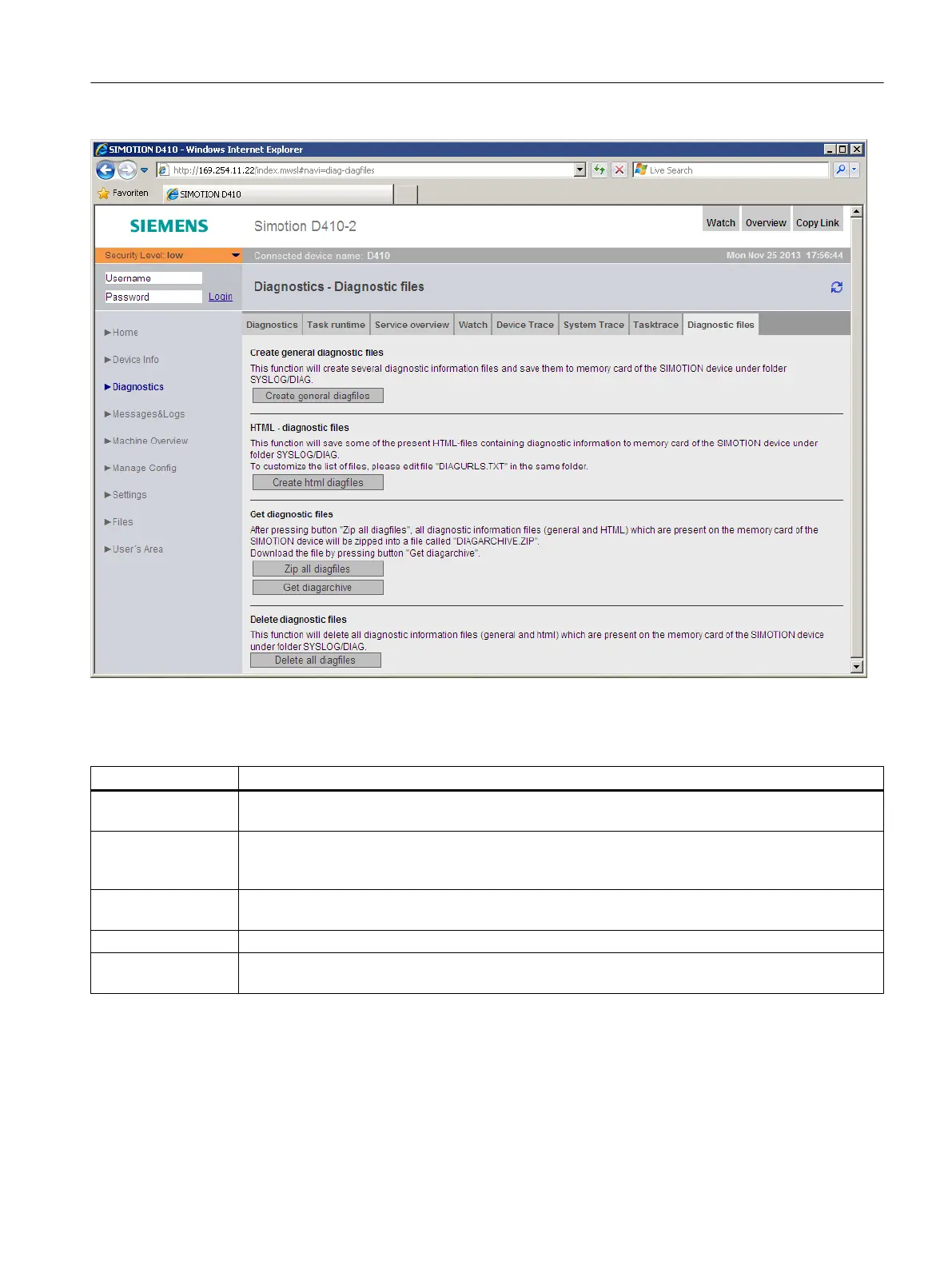

Figure 9-7 SIMOTION IT web server
Table 9-7
Functions on the "Diagnostic files" HTML page
Button Function
Create general dia‐
gfiles
The diagnostic data and non-volatile SIMOTION data are backed up in the ...\USER\SIMOTION\HMI
\SYSLOG\DIAG directory. HTML files used for diagnostics purposes are not saved.
Create html diagfiles The diagnostic websites are saved on the data medium. Note that only those sites listed in the DIA‐
GURLS.TXT
file in the ...\USER\SIMOTION\HMI\SYSLOG\DIAG are saved, see Section Diagnostics
via websites (Page 309).
Zip all diagfiles The diagnostic files are compressed and stored with their original folder structure in the DIAGARCH‐
IVE.ZIP ZIP file in the ...\USER\SIMOTION\HMI\SYSLOG\DIAG directory.
Get diagarchive The ZIP file is saved on a connected PG/PC.
Delete all diagfiles This button is used to delete all data stored in the ...\USER\SIMOTION\HMI\SYSLOG\DIAG directory;
the directory itself is not removed, however.
The diagnostic data and non-volatile SIMOTION data can be found on the CF card in directory:
\USER\SIMOTION\HMI\SYSLOG\DIAG
Additional references
You will find detailed information in the
SIMOTION IT Diagnostics and Configuration
Diagnostics Manual.
Diagnostics
9.2 Diagnostic data and non-volatile SIMOTION data
SIMOTION D410-2
Commissioning and Hardware Installation Manual, 01/2015 313
