Disassembling the SIMOTION D410-2
To
remove the SIMOTION D410-2 from the Power Module, the blue release, as shown in the
figure, must be pressed down and SIMOTION D410-2 tilted forward.

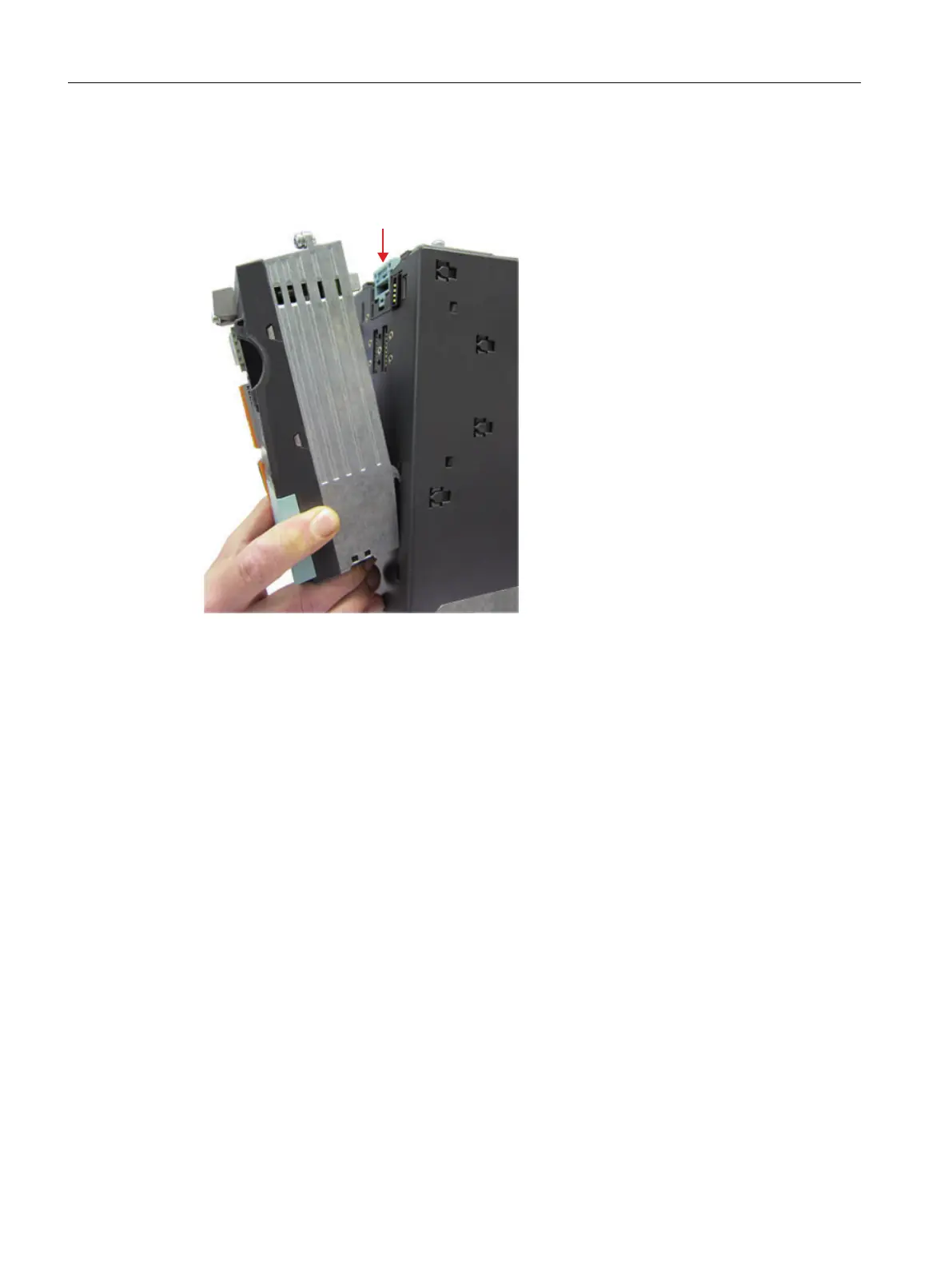

Figure 3-1 Removing the SIMOTION D410-2 from the Power Module
Installing
3.2 Mounting the SIMOTION D410-2 on the power module
SIMOTION D410-2
40 Commissioning and Hardware Installation Manual, 01/2015
