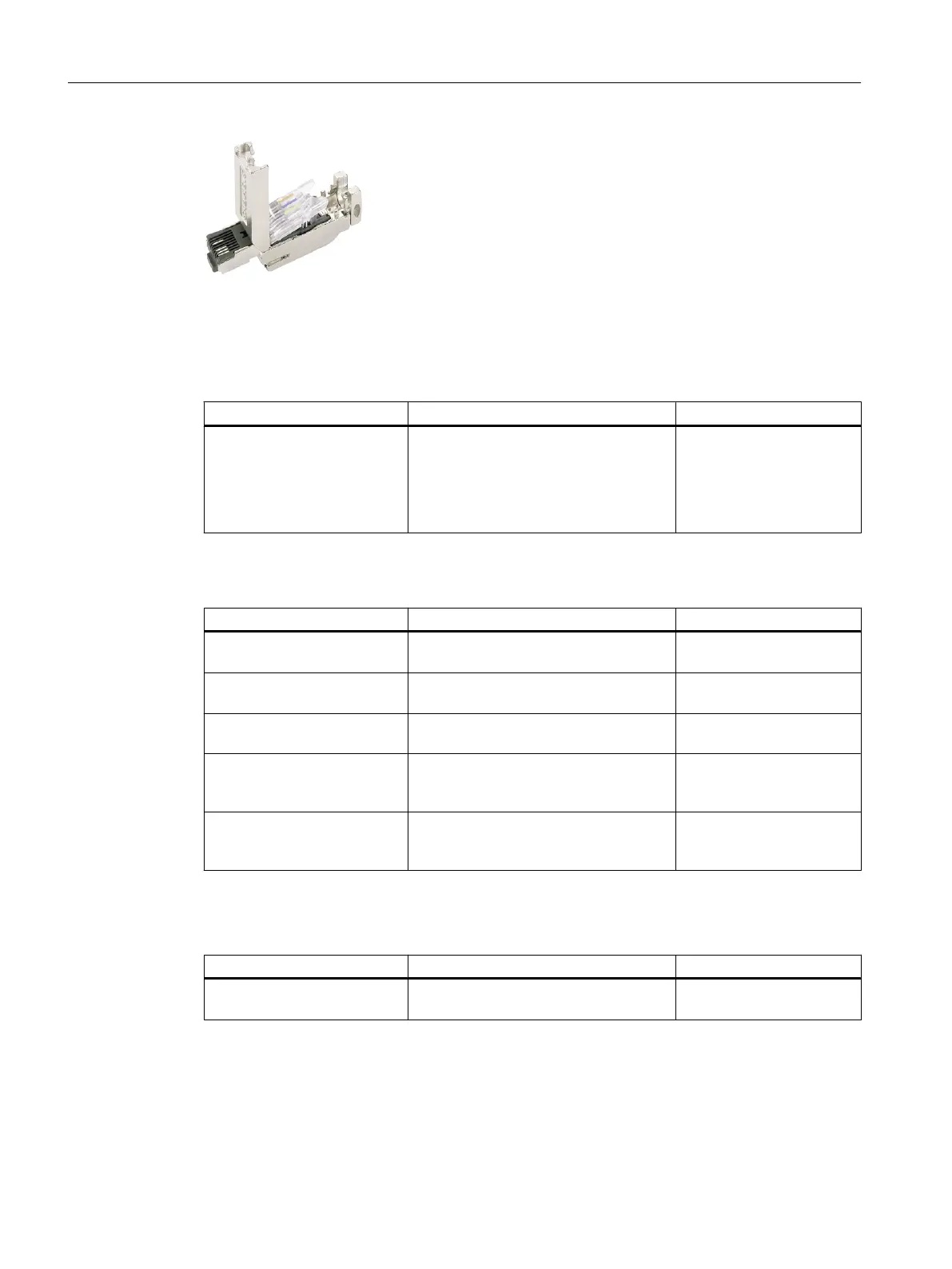

Figure 4-10 RJ45 PN connector with a 180° cable outlet
Table 4-8
Connector types for PROFINET
Connectors Designation Article number
IE FC RJ45 plug 180 RJ45 FastConnect connector for Indus‐
trial Ethernet/PROFINET with 180° ca‐
ble outlet
● 1 pack = 1 units
● 1 pack = 10 units
6GK1901-1BB10-2AA0
6GK1901-1BB10-2AB0
Table 4-9 Cable types for PROFINET
Cable Designation Article number
IE FC Cable GP 2x2 (Type A) 4-wire, shielded TP installation cable for
IE FC RJ45
6XV1840-2AH10
IE FC Flexible Cable GP 2x2
(Type B)
4‑wire, shielded flexible TP installation
cable for IE FC RJ45
6XV1870-2B
IE FC Trailing Cable GP 2x2
(Type C)
4‑wire TP installation cable for trailing
cable use
6XV1870-2D
IE FC Trailing Cable 2x2
(Type C)
4-wire, shielded TP installation cable for
connection
to FC OUTLET RJ45, for trail‐
ing cable use
6XV1840-3AH10
IE FC Marine Cable 2x2 4‑wire, shielded marine-certified TP in‐
stallation cable for connection to
FC OUTLET RJ45
6XV1840-4AH10
Table 4-10 Stripping tool for Industrial Ethernet / PROFINET
Tool Designation Article number
IE FC Stripping Tool Stripping tool for Industrial Ethernet /
PROFINET
6GK1901-1GA00
Connecting
