Engineering System/HMI on PROFINET (example: D410‑2 DP/PN)

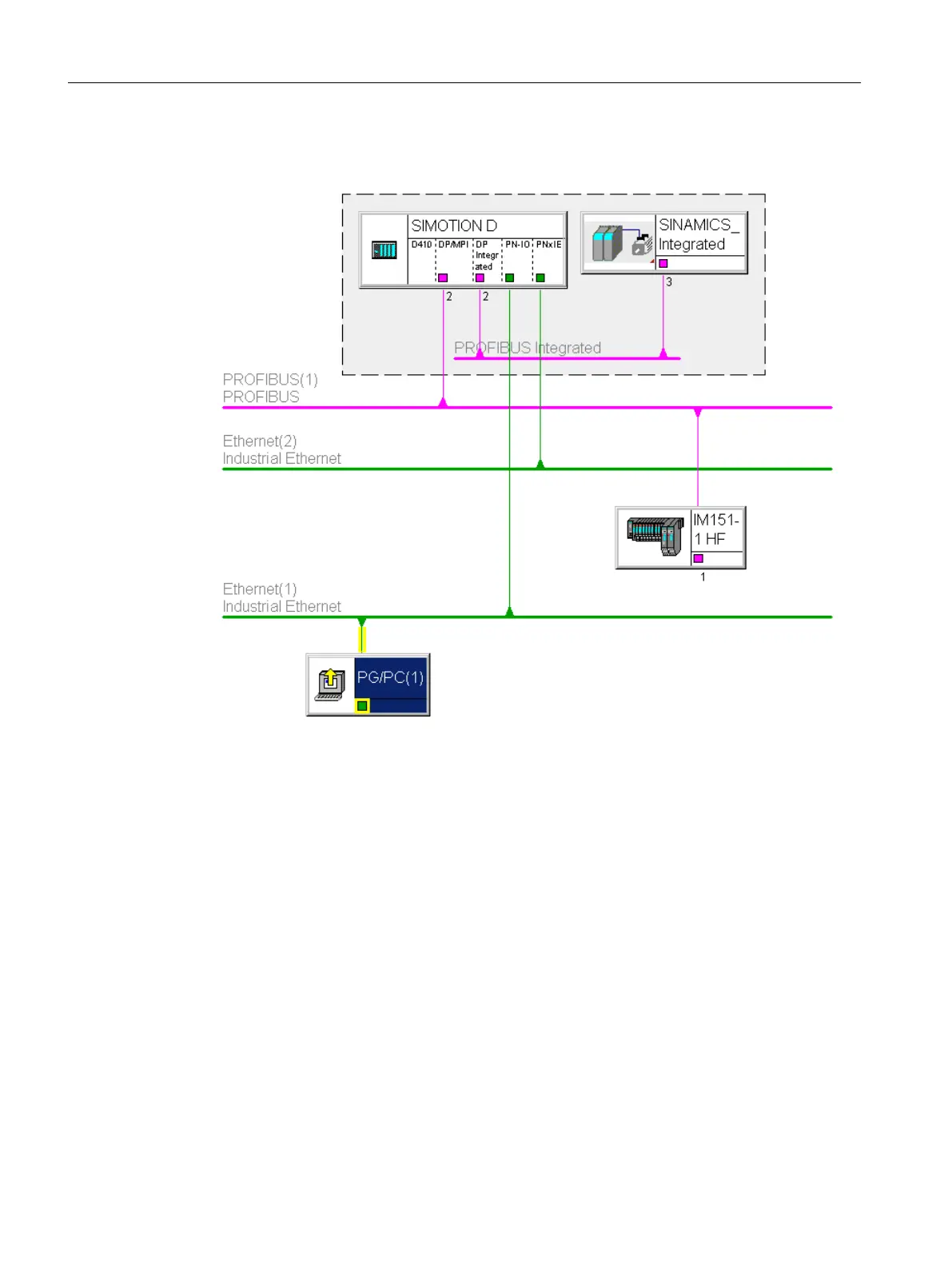

Figure 4-12 Example of PG/PC to PROFINET interface (PNxIO, X150)
●
S7 routing to the (master) PROFIBUS interface (only if configured)
● S7 routing to the PROFIBUS Integrated
● S7 routing to Ethernet interface PN/IE (X127 P1)
● Access to the components on the same subnet via the switch functionality of the
PROFINET IO interface
Connecting
4.11 Routing
SIMOTION D410-2
76 Commissioning and Hardware Installation Manual, 01/2015
