Communication via PROFIBUS DP
4.4 Slave-to-slave communication
Communication
Function Manual, 12/2018, 6SL3097-5BD00-0BP0
107

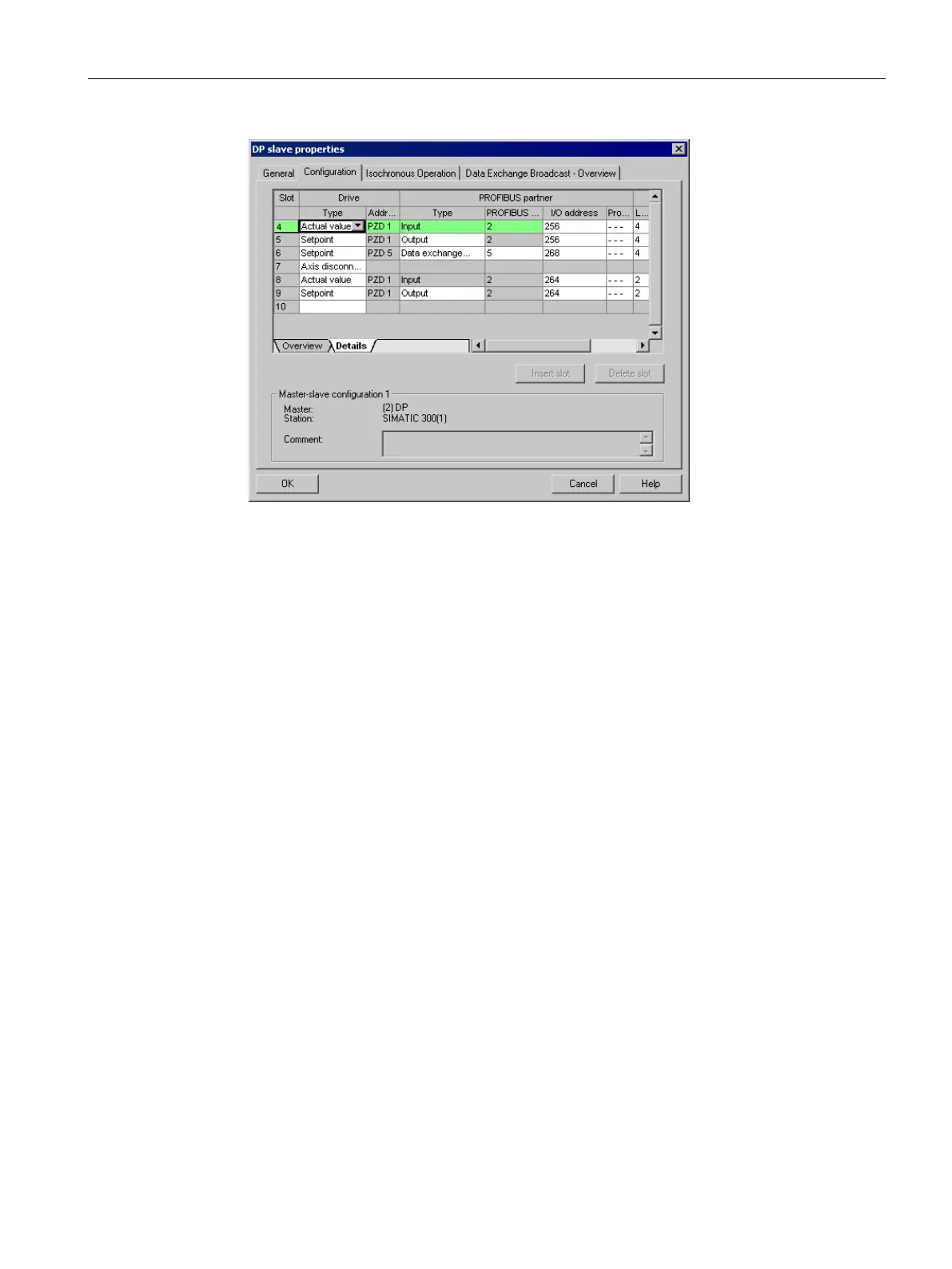

Figure 4-17 Details after the creation of the slave-to-slave communication link
10.You should therefore adjust the telegrams for each drive object of the selected drive
device that is to participate actively in slave-to-slave communication.
Automatic identification in Startdrive
The settings made in HW Config for the slave-to-slave telegrams are automatically detected
by Startdrive. A telegram extension is not required in Startdrive.
