Communication according to PROFIdrive
3.2 Cyclic communication
Communication
44 Function Manual, 12/2018, 6SL3097-5BD00-0BP0
Example: Flying measurement
Assumptions for the example:
● Measuring probe with rising edge (function 1)
● Position control with encoder 1

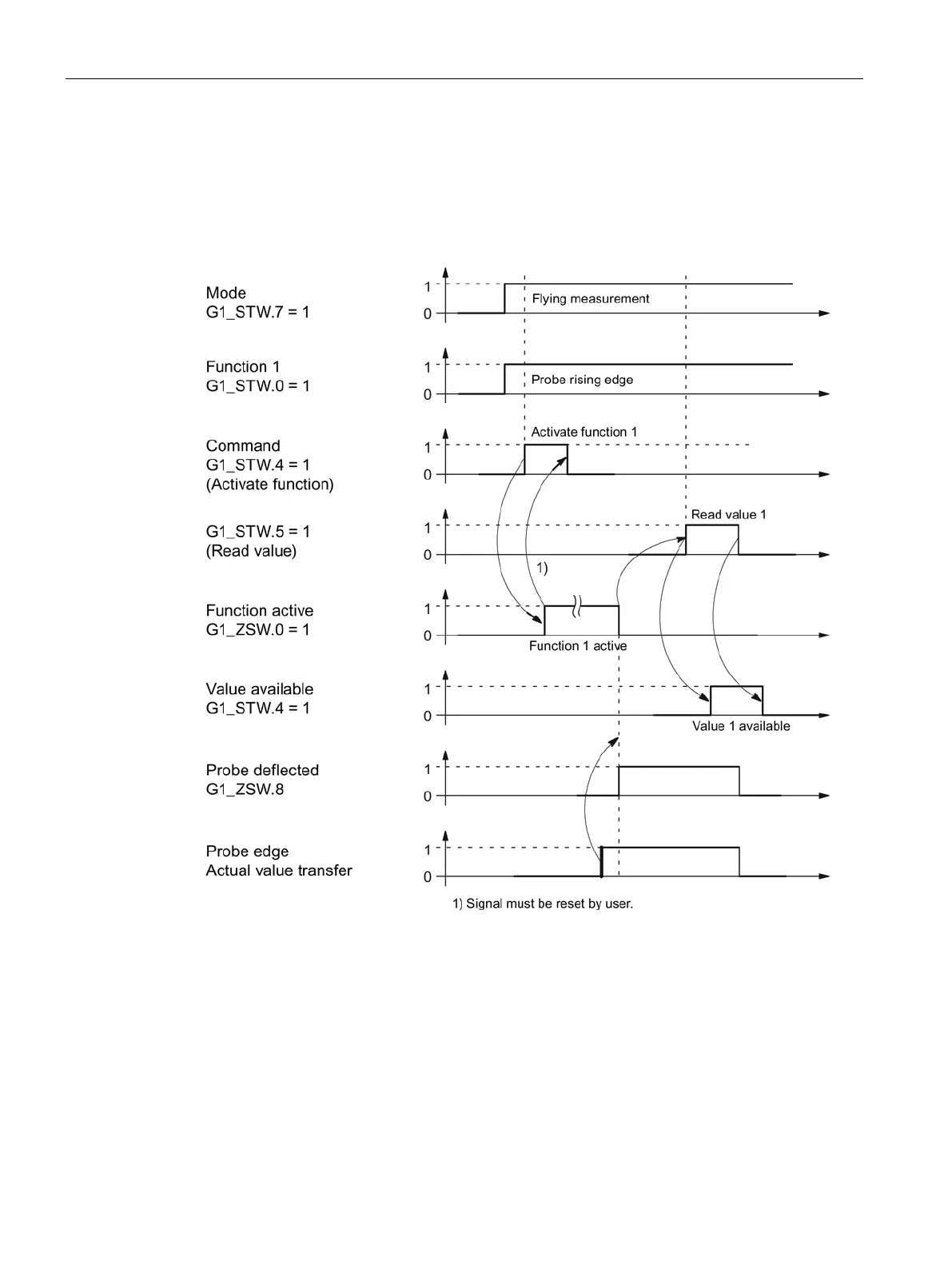

Figure 3-4 Sequence chart for "Flying measurement"
