Diagnosis
Diagnostics using STARTER
6-205
E Siemens AG, 2004. All rights reserved
SINAMICS S120 Installation and Start-Up Manual, 12/04 Edition
Further signal shapes
Further signal shapes can be parameterized.
Example:
The “triangular” signal shape can be parameterized with “upper limitation” to pro-
duce a triangle with no peak.
Limit
upper
Signal shape
“Triangular”

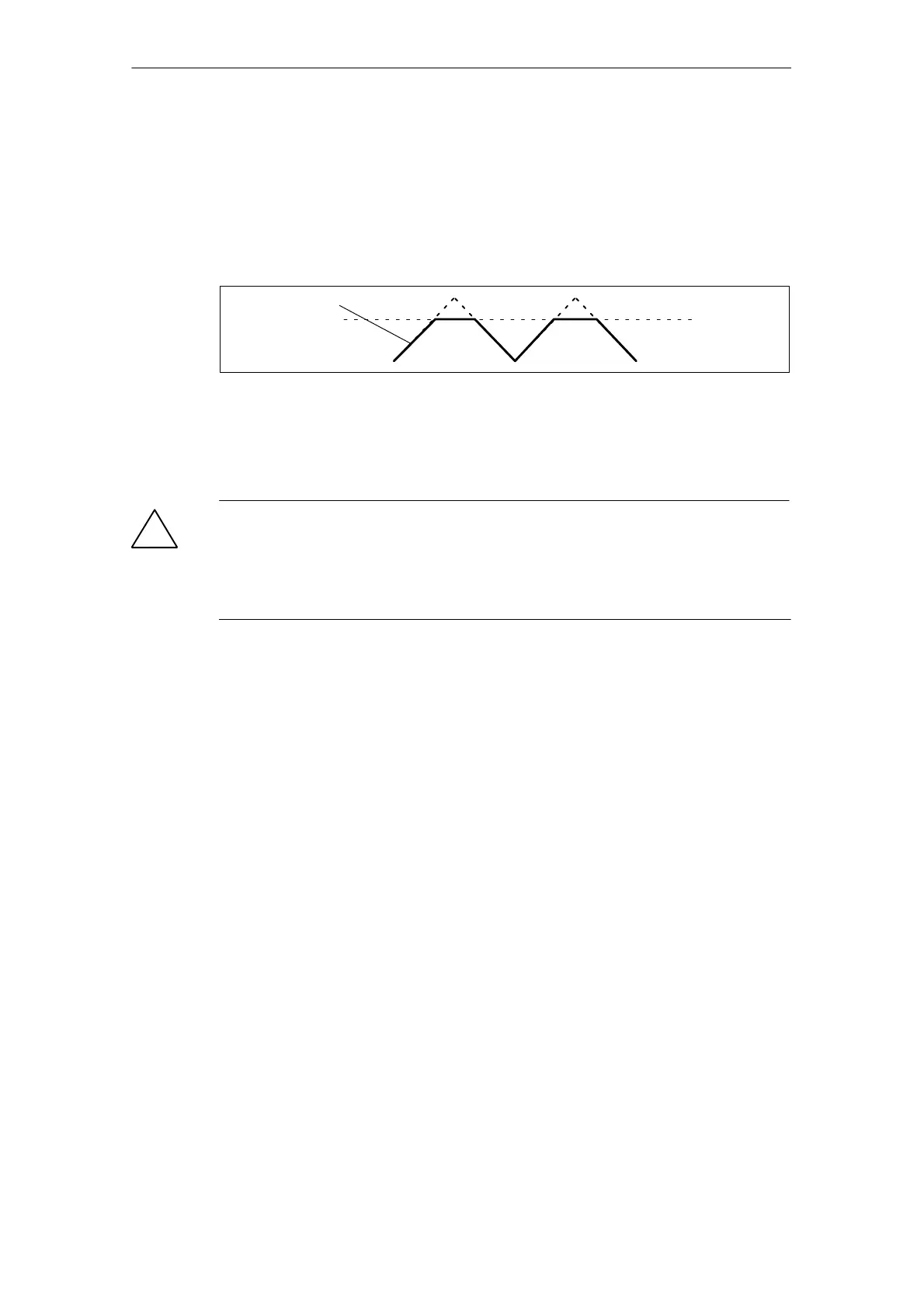

Fig. 6-4 “Triangular” signal without peak
Starting/stopping the ramp-function generator
!
Caution
With the corresponding ramp-function generator parameter settings (e.g. offset),
the motor can “drift” and travel to its end stop.
The movement of the drive is not monitored while the ramp-function generator is
active.
To start the ramp-function generator:
1. Meet the conditions for starting the ramp-function generator
– Activate the control board
Drives -> Drive_x -> Commissioning -> Control board
– Switch on the drive
Control board -> Issue enable signals -> Switch on
2. Select the operating mode
e.g. speed setpoint downstream of filter
3. Select the drive (as control board)
4. Set the signal shape
e.g. square-wave
5. Load the settings to the target system (“Download parameters” pushbutton)
6. Start the ramp-function generator (“Start FctGen” pushbutton)
To stop the measuring function:
“Stop FctGen” pushbutton
