System
8.4 SYSTEM - "Service display"
Cylindrical grinding
124 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0

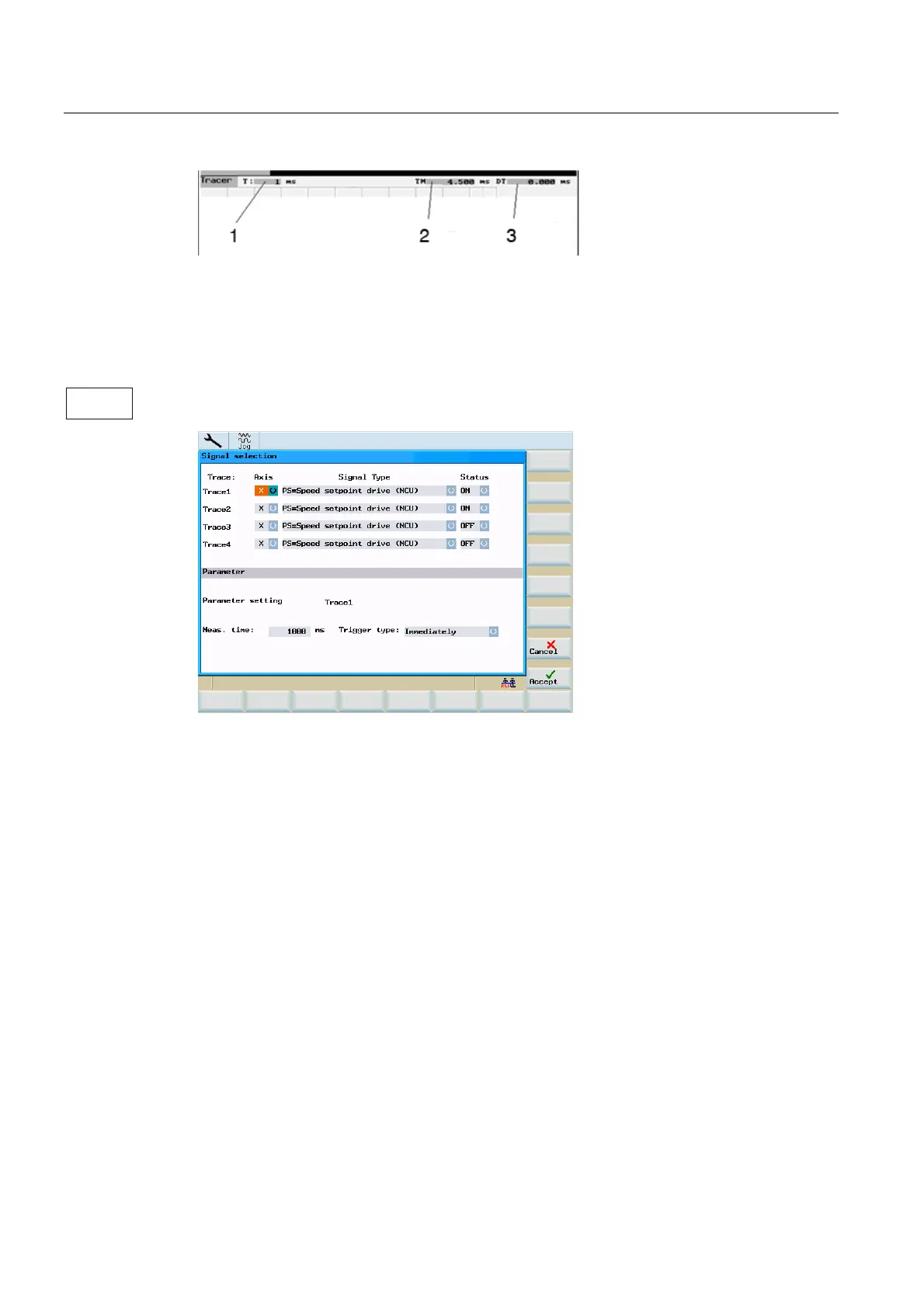

1 Time Base
2 Marker position time
3 Difference in time between marker 1 and current marker position.
Figure 8-19 Meaning of the fields
Use this menu to parameterize the measuring channel.
Figure 8-20 Select signal
● Selecting the axis: To select the axis, use the "Axis" toggle field.
● "Signal type":
Following error
Controller difference
Contour deviation
Position actual value
Speed actual value
Speed setpoint
Compensation value
Parameter block
Position setpoint controller input
Speed setpoint controller input
Acceleration setpoint controller input
Speed feedforward control value
Exact stop fine signal
Exact stop coarse signal
● "Status":
On: Tracing is performed in this channel
Off: Channel inactive
6HOHFW
VLJQDO
