Siemens SINUMERIK 802D User Manual

Cycles
9.18 Technological data - CYCLE450
Cylindrical grinding
210 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
9.18 Technological data - CYCLE450
Programming
CYCLE450(_QS, _FZ)
Parameter
Table 9- 15 Parameters of CYCLE450
Parameter Data type Meaning
QA INT Programming with specific machine cutting volume
FZ INT Z feedrate in mm/rev.
Function
The cycle is used to set the type of infeed feedrate programming and for selecting the Z
feedrate when performing longitudinal grinding or reciprocation.
The selection is saved to the parameters _GC_PARI[0] and _GC_PARI[1].
Sketch of the geometry parameters

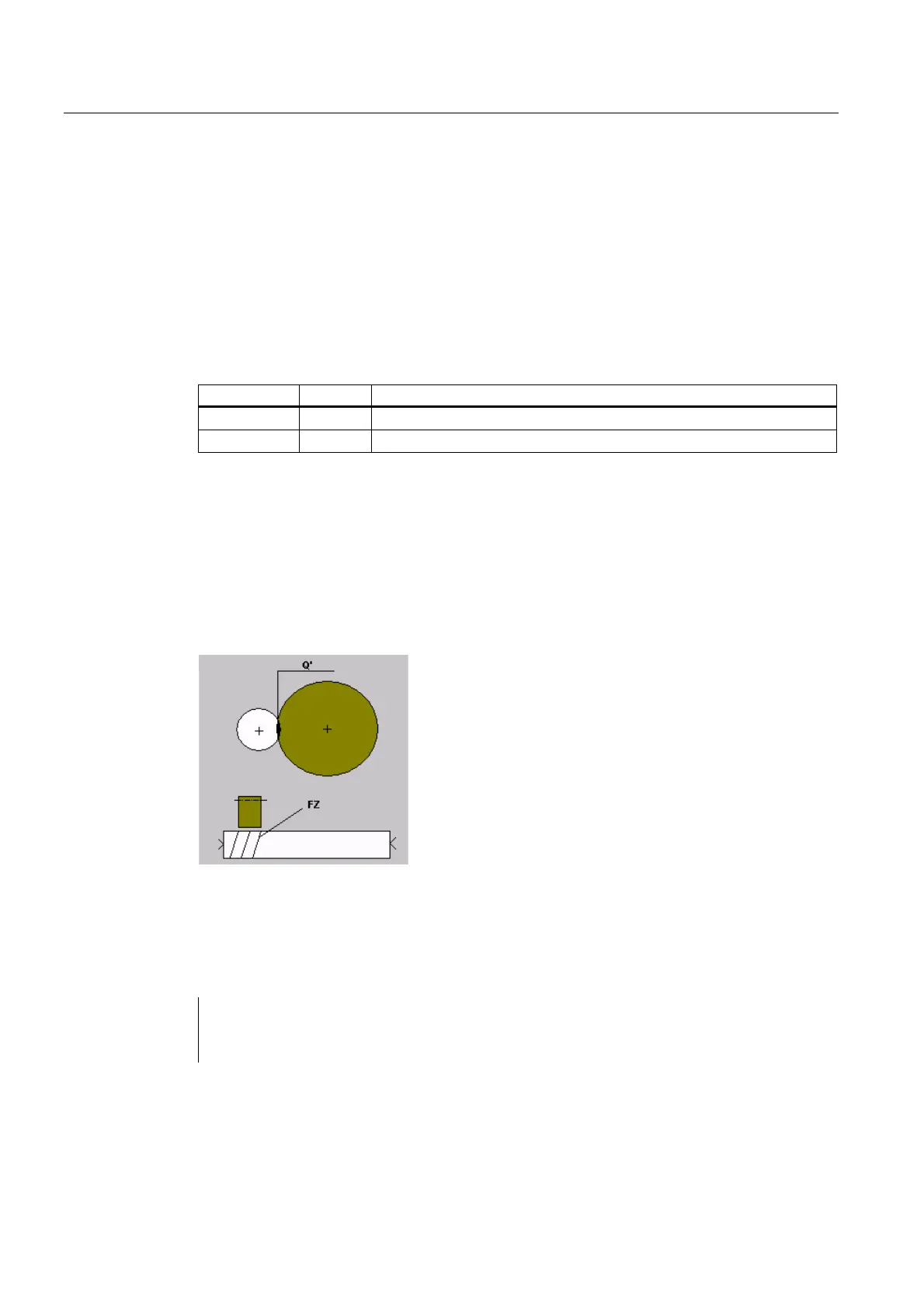

Figure 9-8 Technological data - CYCLE450
Programming example
Programming the infeed feedrates in Q’ and the Z feedrates in mm/min.
N10 T1D1
N20 CYCLE450( 1, 0)
N30 M30
