Manual mode
5.3 MDA mode (manual input) "Position" operating area
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
73
5.3.1 Teach In (MDA)
Functionality
You can use the "Teach In" function to create and change simple traversing blocks. You can
transfer axis position values directly into a newly generated or changed part program record.
The axis positions are reached by traversing with the axis direction keys and transferred into
the part program.
Operating sequence
In the <POSITION> operating area, use the machine control panel to select <MDA> mode.
Press the "Teach In" softkey.

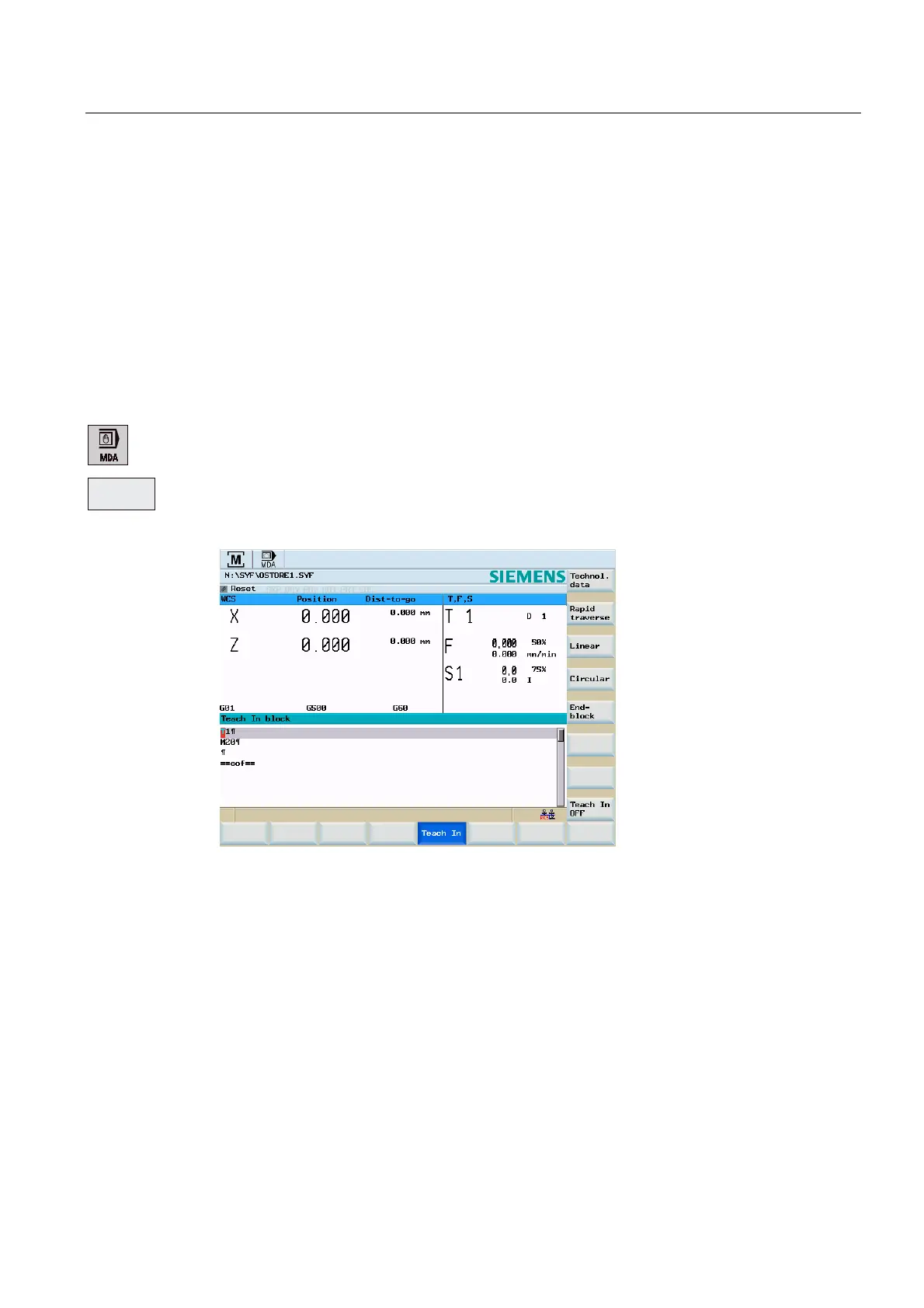

In the "Teach In" submode, assume the following start screen:
Figure 5-7 Main screen
