Manual mode
5.3 MDA mode (manual input) "Position" operating area
Cylindrical grinding
74 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
General sequence
1. Use the arrow keys to select the program block that you want to edit or that is to have the
new traversing block inserted in front of it.
2. Select the appropriate softkey.
– "Technological data"

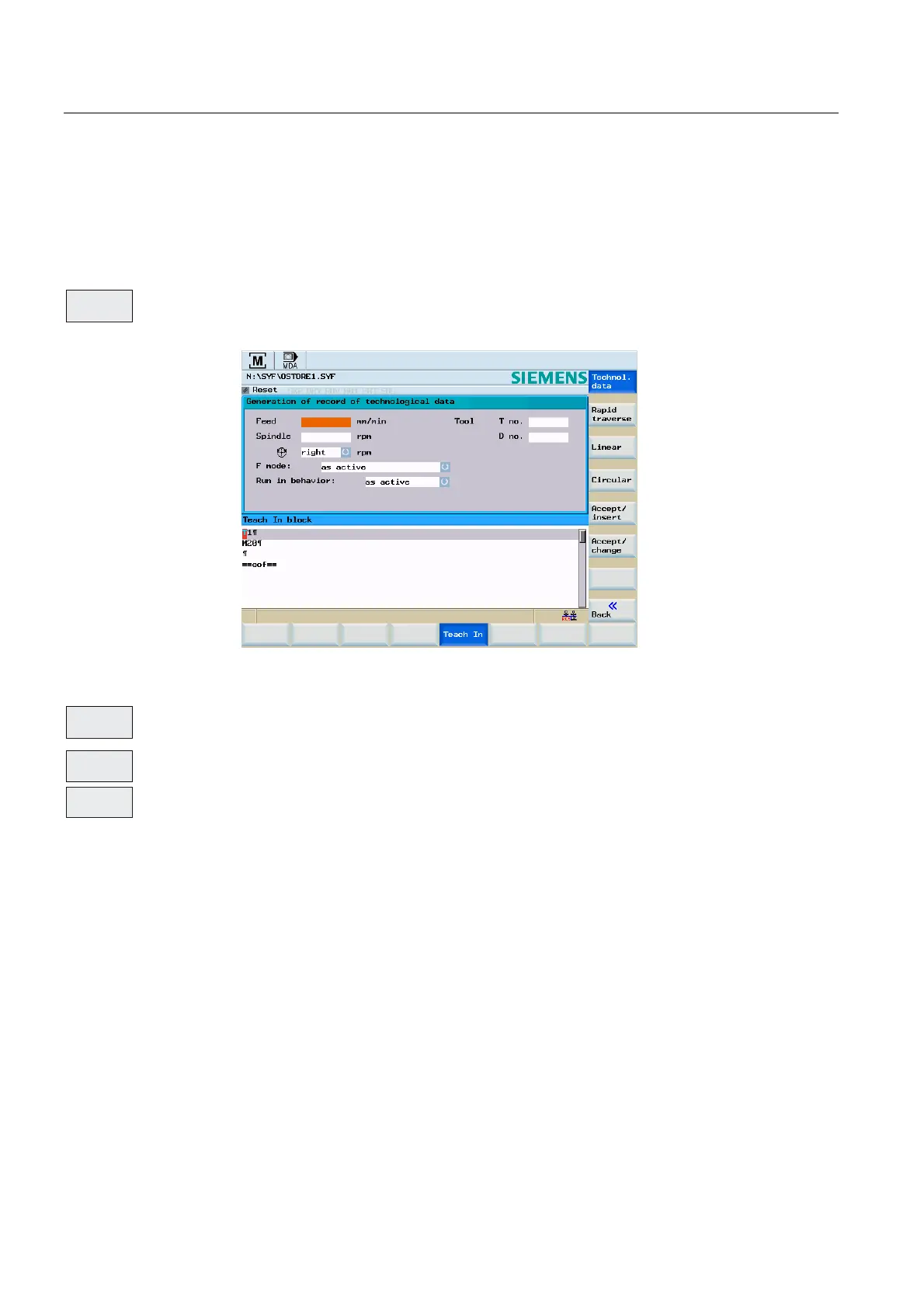

Figure 5-8 Technological data
Enter the appropriate technological data (e.g. feedrate: 1000).
Click "Insert transfer" to add a new part program block. The new part program block
will be added in front of the block selected with the cursor.
Click "Change transfer" to change the selected part program block.
Use "<<Back" to return to the "Teach In" start screen.
7HFKQRO
GDWD
,QVHUW
WUDQVIHU
&KDQJH
WUDQVIHU
%DFN
