10.10.4 Program example for jumps
Task
Approaching points on a circle segment:
Existing conditions:
Start angle: 30° in R1
Circle radius: 32 mm in R2
Position spacing: 10° in R3
Number of points: 11 in R4
Position of circle center in Z: 50 mm in R5
Position of circle center in X: 20 mm in R6
5
3RLQW
5
3RLQW
5
3RLQW
3RLQW
5
3RLQW
=
;
5 QXPEHURISRLQWV


5
5

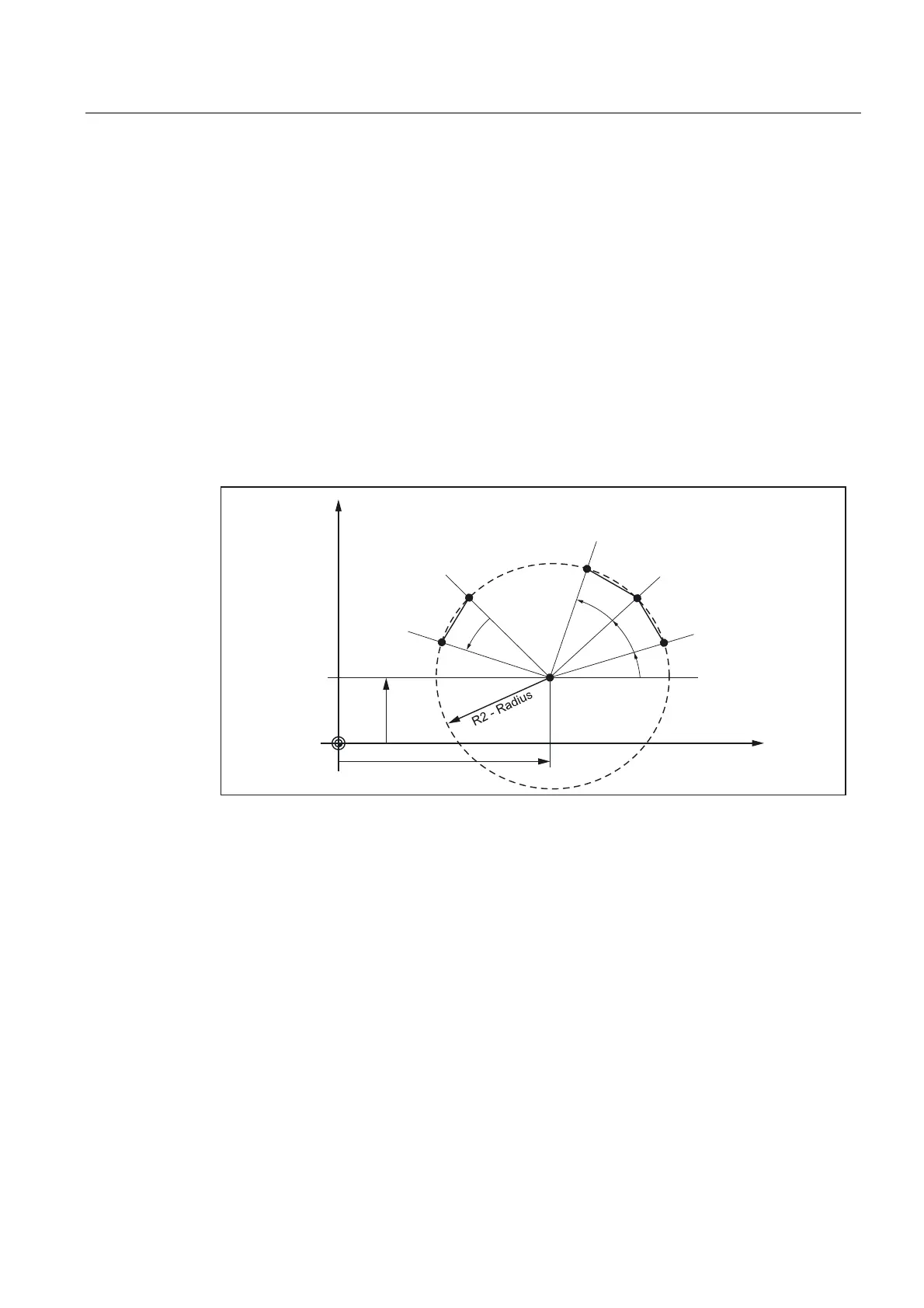

Figure 10-36 Linear approach of points on a circle segment
