4.2 Create new tool
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
37
4.2 Create new tool
Functionality
The tool offsets consist of various data describing the geometrty, the wear and the tool type.
Each tool contains a defined number of parameters, depending on the tool type. Tools are
identified by a number (T number).
Operating sequences (general)
Press the <OFFSET PARAM> key.
This function opens the "Tool list" window which contains a list of the tools created. Use the
cursor keys and the <Page Up>/<Page Down> keys to navigate in this list.

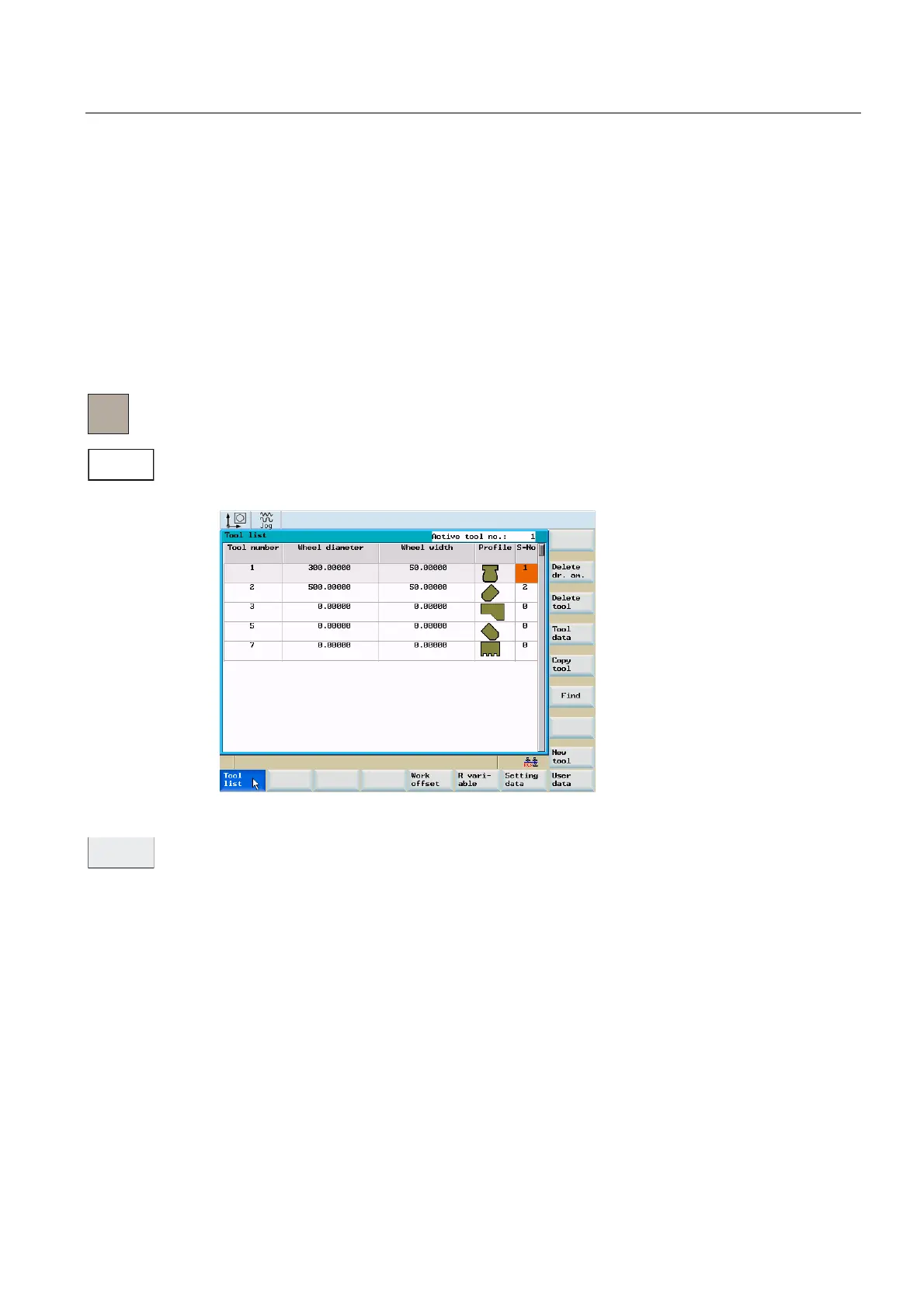

Figure 4-2 Tool list
The corrections are entered by placing the cursor bar on the tool to be modified and by
pressing the "Tool data" softkey.
