4.2 Create new tool
Cylindrical grinding
38 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
Operating sequences (new tool)
This function opens an input screen in which the tool number, tool type, and grinding wheel
shape are to be entered or selected.

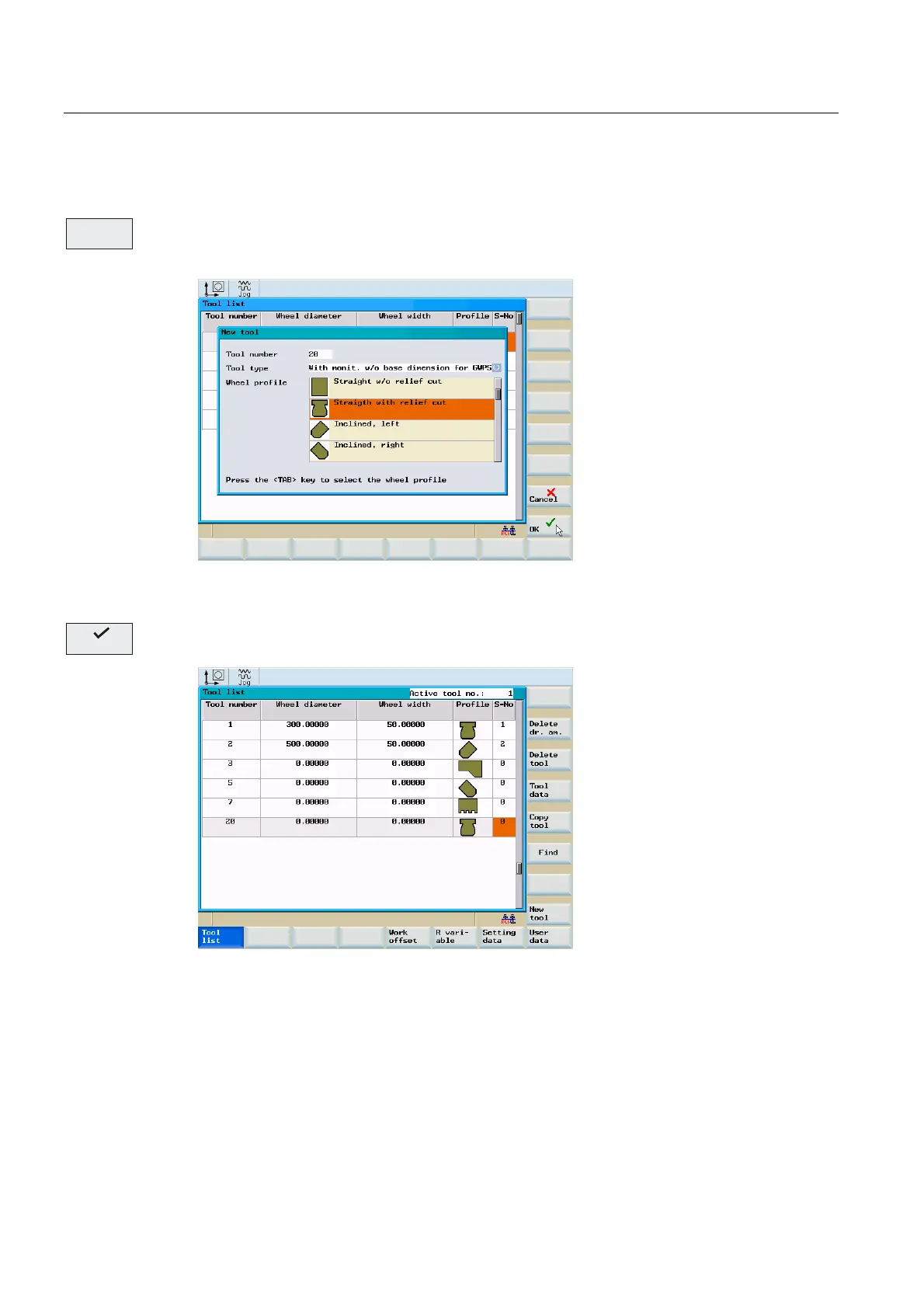

Figure 4-3 New tool
Confirm your input using "OK".
Figure 4-4 New tool inserted
A data record loaded with zero will be included in the tool list. This data block consists of 9
cutting edges (D fields). The first 6 cutting edges have a cutting edge type and are used as
cutting edge geometry points.
The tool is assigned to a grinding spindle by an entry in the "S No" field. For values ≤0, an
externally controlled grinding spindle is used, for values >0, the grinding spindles of the
control system are known.
