9.2 Programming cycles
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
155
9.2 Programming cycles
A cycle is defined as a subroutine with a name and parameter list assigned.
9.2.1 Call and return conditions
The G functions effective prior to the cycle call and the programmable offsets remain active
beyond the cycle.
The machining level (G17, G18, G19) must be defined before calling the cycle. A cycle
operates in the current plane with the following axes:
● 1st axis of the plane (abscissa)
● 2nd axis of the plane (ordinate)
● Tool axis/infeed axis, 3rd axis, standing vertically to the plane (applicate).
*
*
*

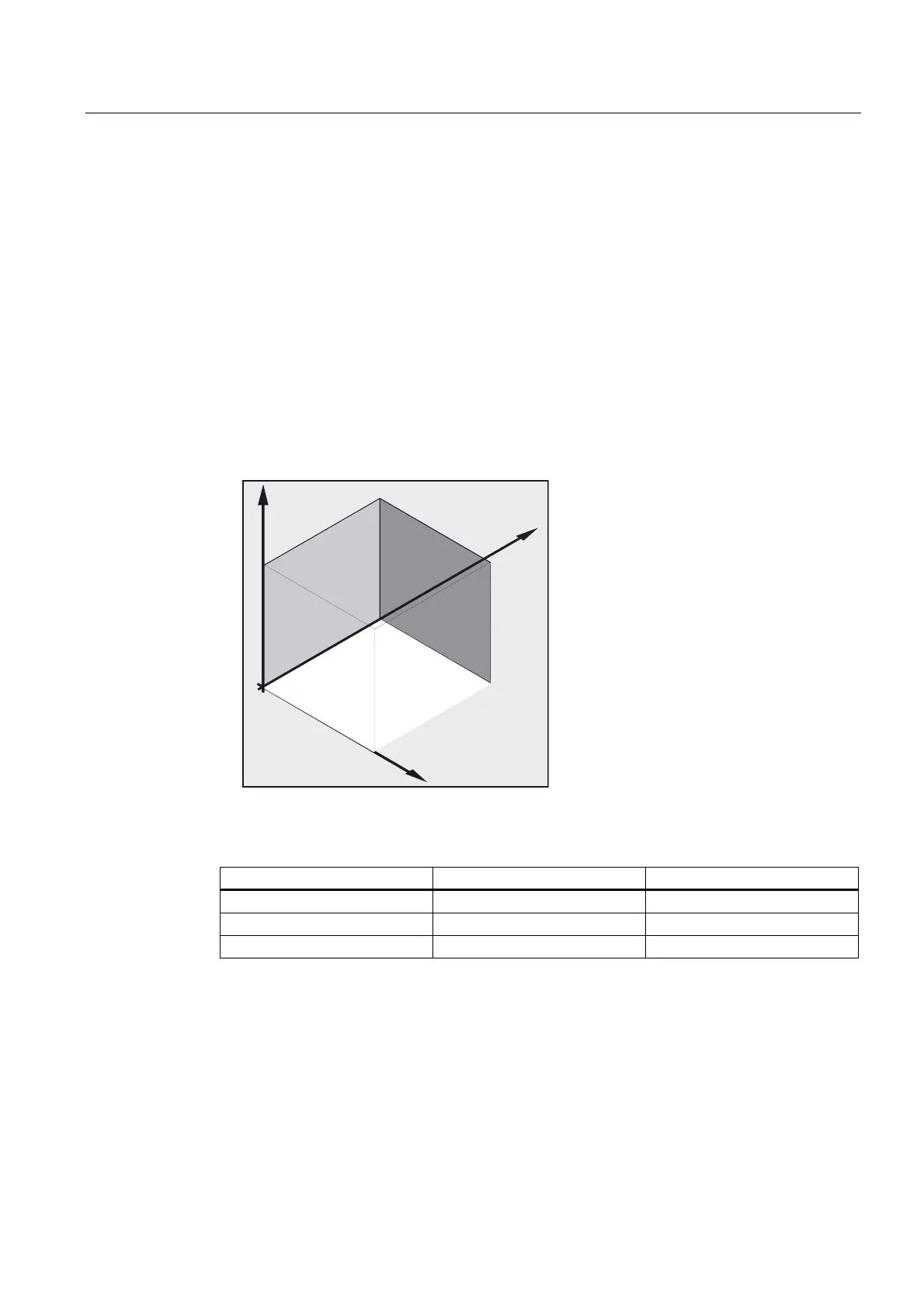

$SSOLFDWH
=
;
<
$EVFLVVD
2UGLQDWH
Level and axis allocation:
Command Plane Vertical infeed axis
G17
X/Y Z
G18
Z/X Y
G19
Y/Z X
