10.3.11 Acceleration pattern: BRISK, SOFT
BRISK
The axes of the machine change their velocities using the maximum permissible acceleration
value until reaching the final velocity. BRISK allows time-optimized working. The set velocity
is reached in a short time. However, jumps are present in the acceleration pattern.
SOFT
The axes of the machine accelerate with nonlinear, constant curves until reaching the final
velocity. With this jerk-free acceleration, SOFT allows for reduced machine load. The same
behavior can also be applied to braking procedures.
%5,6.
WLPHRSWLPL]HG
62)7
VSDUHVWKHPHFKDQLFDOSDUWV
9HORFLW\
SDWK
6HWSRLQW
W
W
7LPH

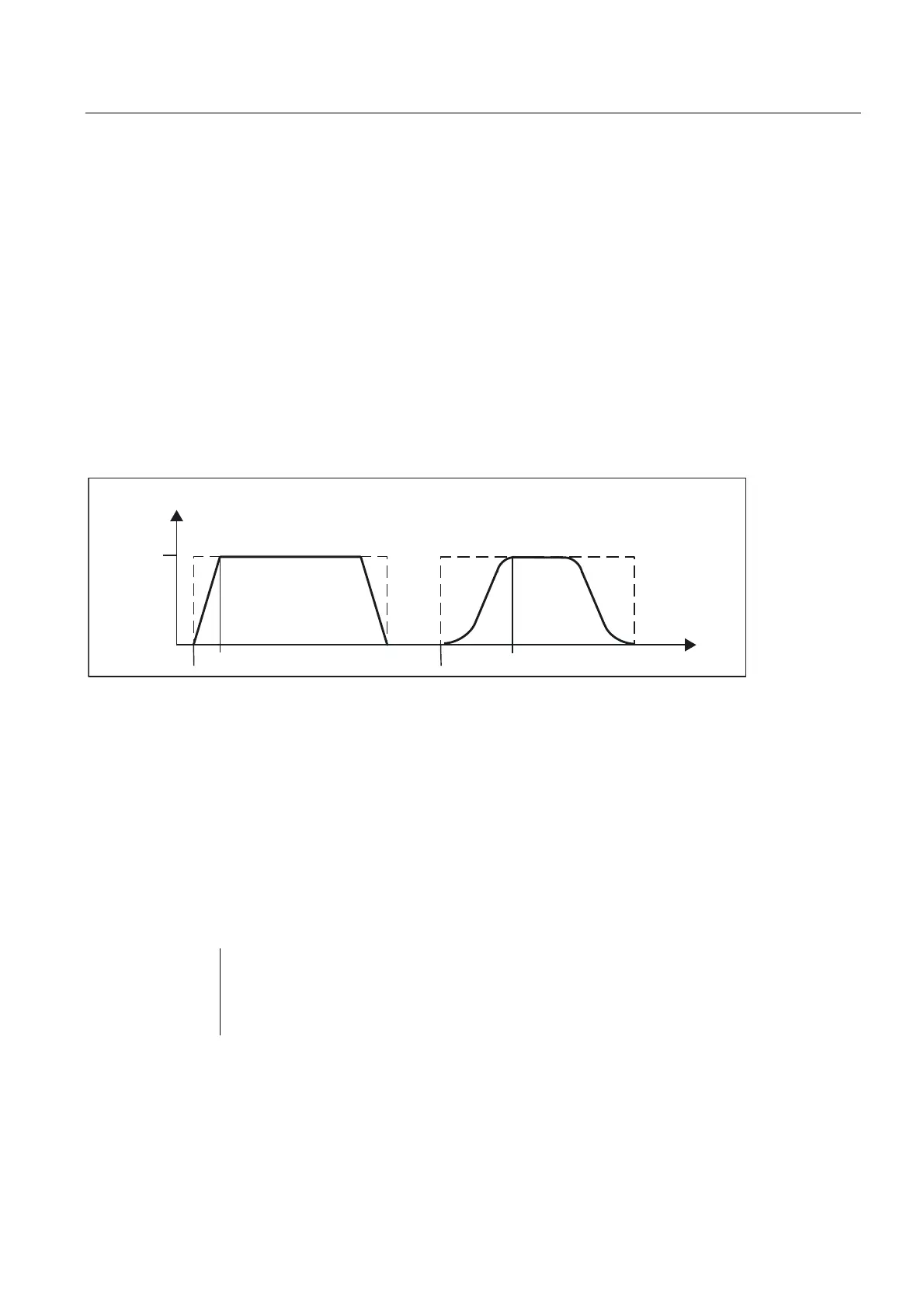

Figure 10-22 Principle course of the path velocity when using BRISK/SOFT
Programming
BRISK ; Jerking path acceleration
SOFT ; Jerk-limited path acceleration
Programming example
N10 SOFT G1 X30 Z84 F6.5 ; Jerk-limited path acceleration
...
N90 BRISK X87 Z104 ; continuing with jerking path acceleration
...
