Programming
10.3 Axis movements
Cylindrical grinding
268 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
Programming example
N10 G64 G1 Z... F... ; Continuous-path mode
N20 X... ; Continuous-path control mode continues to be active
...
N180 G60 ... ; Switching over to exact stop
Look-ahead velocity control
In the continuous-path control mode with G64, the control system automatically determines
the velocity control for several NC blocks in advance. This enables acceleration and
deceleration across multiple blocks with approximately tangential transitions. For paths that
consist of short travels in the NC blocks, higher velocities can be achieved than without look
ahead.
)HHG
3URJUDPPHGIHHGUDWH)
*&RQWLQXRXVSDWKFRQWUROPRGHZLWK/RRN$KHDG
*&RQWLQXRXVSDWKFRQWUROPRGHZLWK/RRN$KHDG
*H[DFWVWRS
%ORFNWUDYHO
1
1
)
1
1 1 1 1
1
1 1
1
1

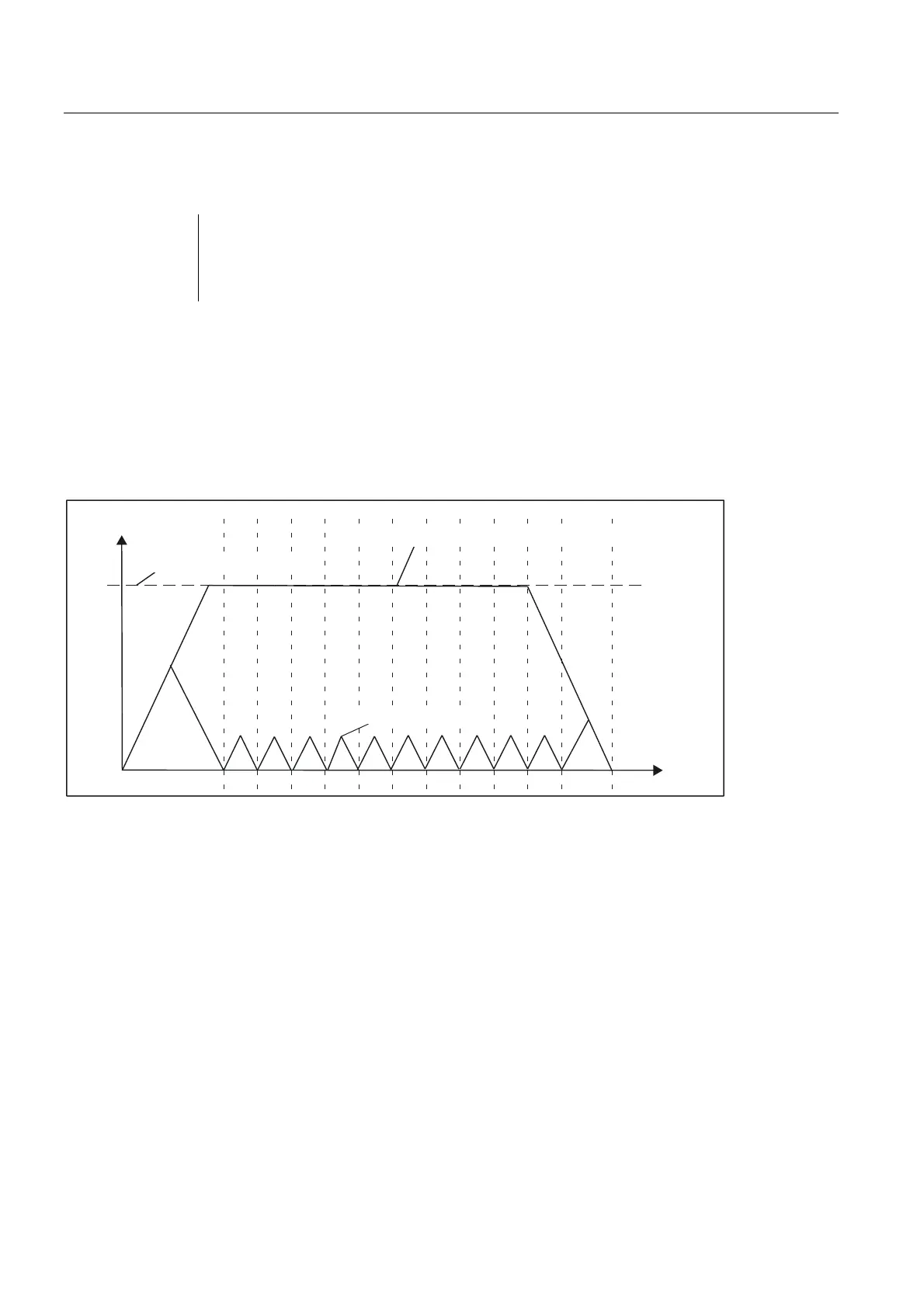

Figure 10-21 Comparison of the G60 and G64 velocity behavior with short travels in the blocks
