4.4 Sense workpiece
Cylindrical grinding
48 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
4.4 Sense workpiece
Functionality
This function is used to detect the workpiece position in the machine with respect to the
particular axis. The HMI transmits both axis name and setpoint to the cycle.
Operation
The workpiece is sensed in JOG mode by scratching the respective axes.
The input screen is opened.

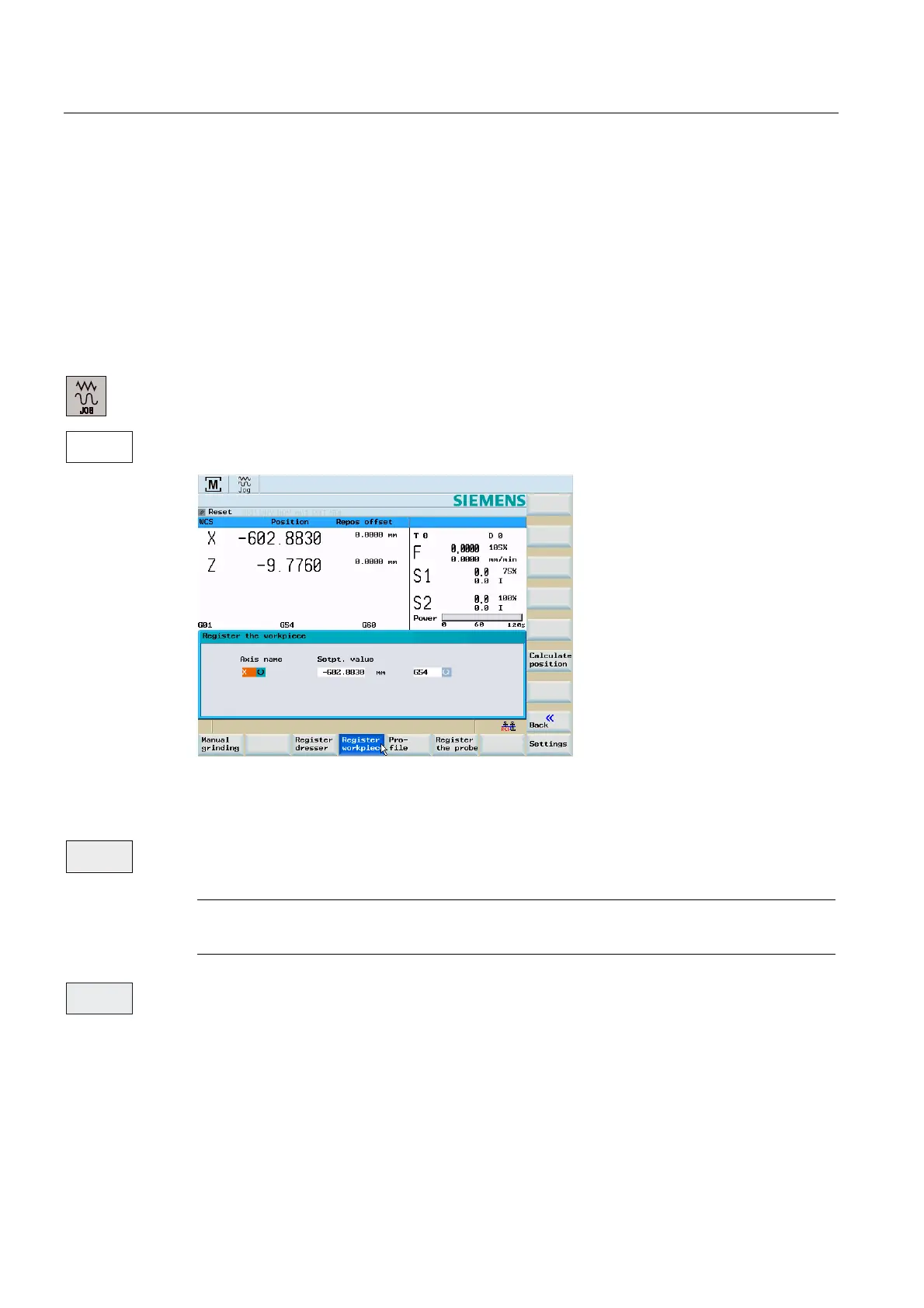

Figure 4-14 Sense workpiece
The desired axis is selected via the the "Axis name" toggle field and the workpiece setpoint
measured is entered into the "Setpoint" input field.
Press the "Calculate position" softkey to apply the setpoint.
Note
This procedure must be done for each axis separately.
Exit the "Sense workpiece" function.
6HQVH
ZRUNSLHFH
&DOFXODWH
SRVLWLRQ
%DFN
