Programming
10.3 Axis movements
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
253
10.3 Axis movements
10.3.1 Linear interpolation with rapid traverse: G0
Functionality
The rapid traverse movement G0 is used for fast positioning of the tool, however, not for
direct workpiece machining.
All axes can be traversed simultaneously - on a straight path.
For each axis, the maximum speed (rapid traverse) is defined in machine data. If only one
axis traverses, it uses its rapid traverse. If two axes are traversed simultaneously, the path
velocity (resulting velocity) is selected to achieve the maximum possible path velocity in
consideration of both axes.
A programmed feedrate (F word) has no meaning for G0. G0 remains active until canceled
by another instruction from this G group (G1, G2, G3, ...).
Programming
G0 X... Z... ; Cartesian coordinates
G0 AP=... RP=... ;Polar coordinates
G0 AP=... RP=... ; cylindrical coordinates (3dimensional)
Note: Another option for linear programming is available with the angle specification ANG=.
0
;
=
3
3
:
;
=

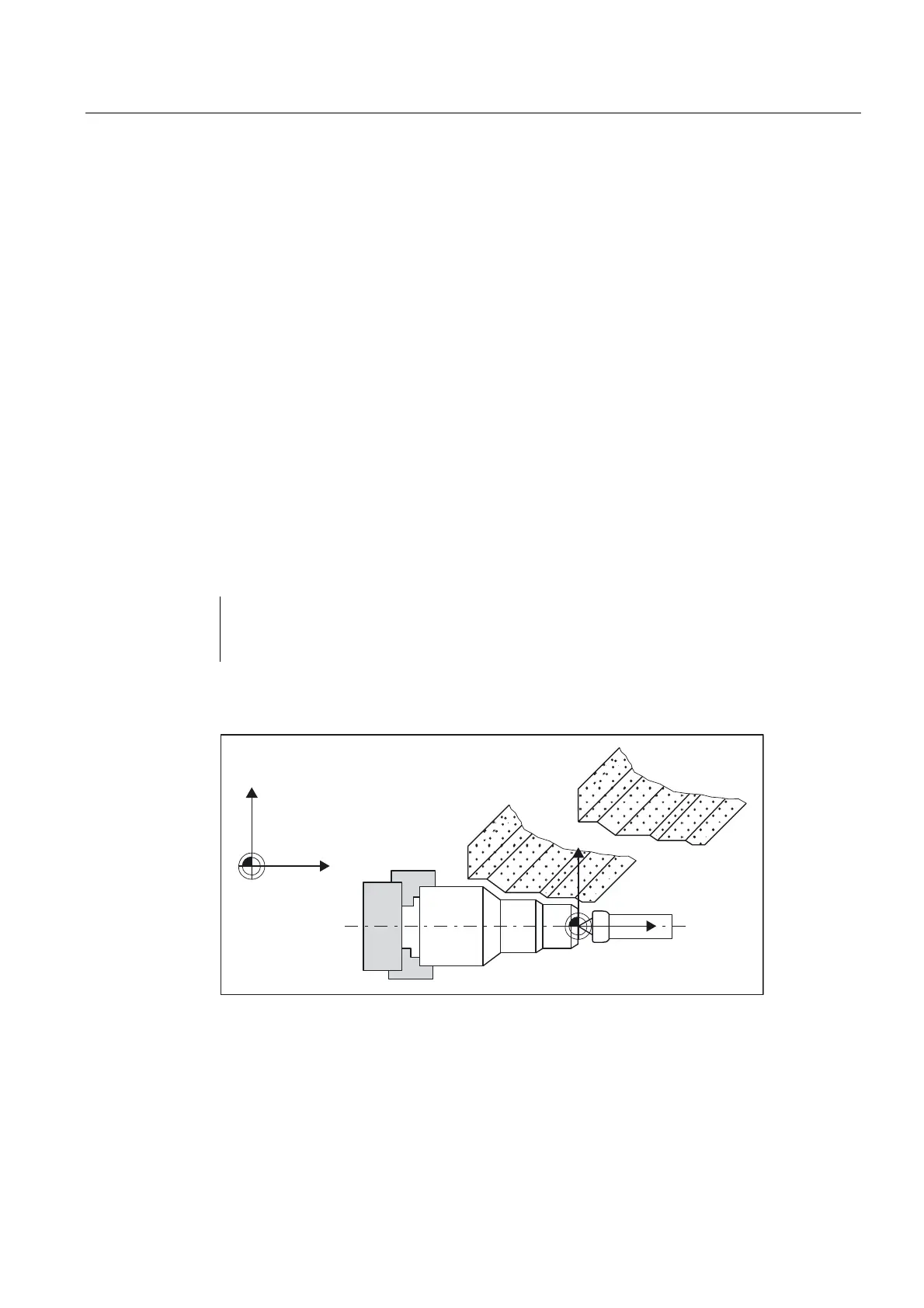

Figure 10-10 Linear interpolation with rapid traverse from point P1 to P2
