Siemens SINUMERIK 802D User Manual

Manual mode
5.3 MDA mode (manual input) "Position" operating area
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
75
– "Rapid feed"

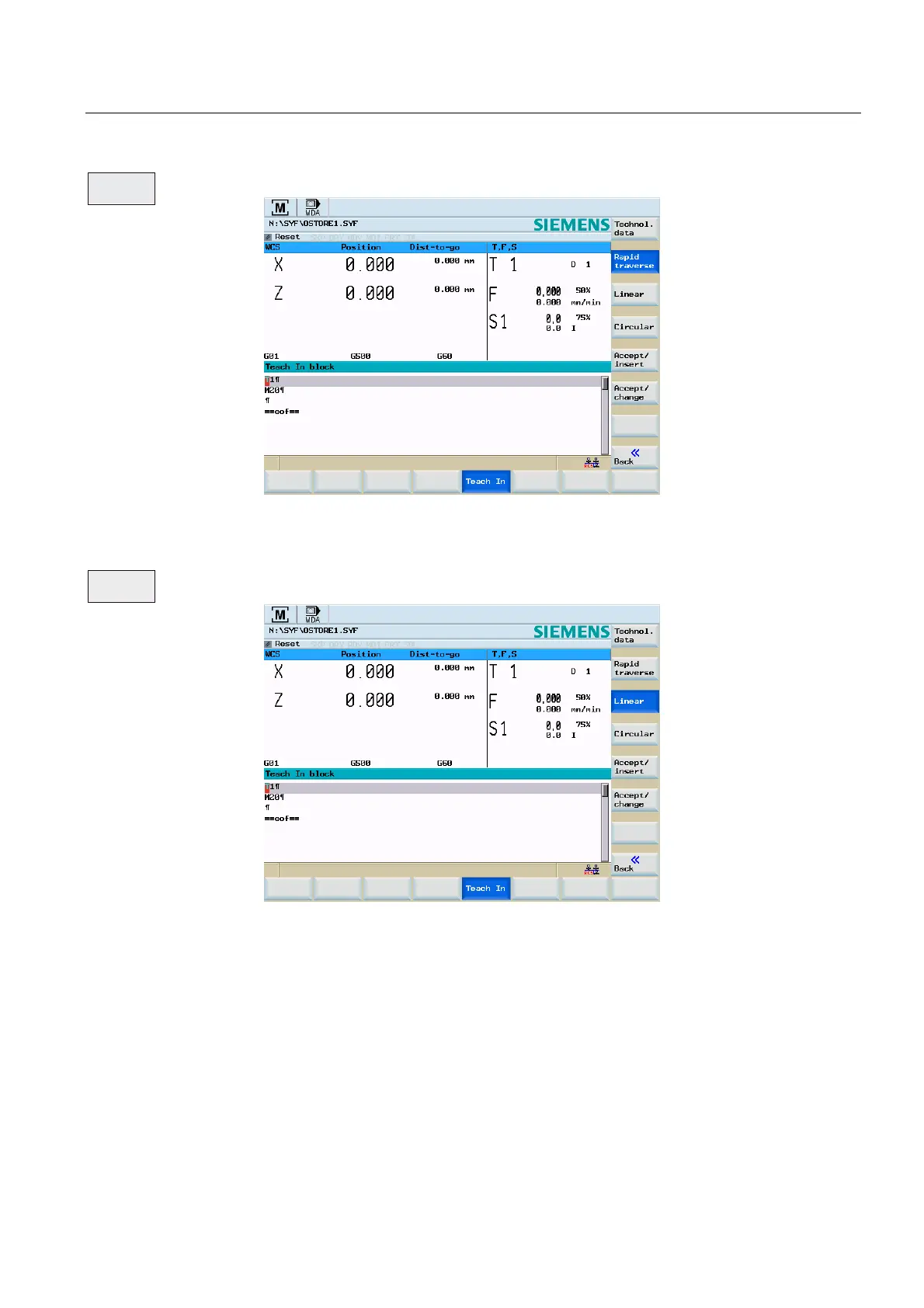

Figure 5-9 Rapid traverse
You traverse the axes and teach-in a rapid traverse block with the approached
positions.
– "Linear"
Figure 5-10 Linear
You traverse the axes and teach in a linear block with the approached positions.
5DSLG
WUDYHUVH
/LQHDU
