8.4 SYSTEM - "Service display"
Cylindrical grinding
126 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
Use these softkeys to define the step sizes of the markers.

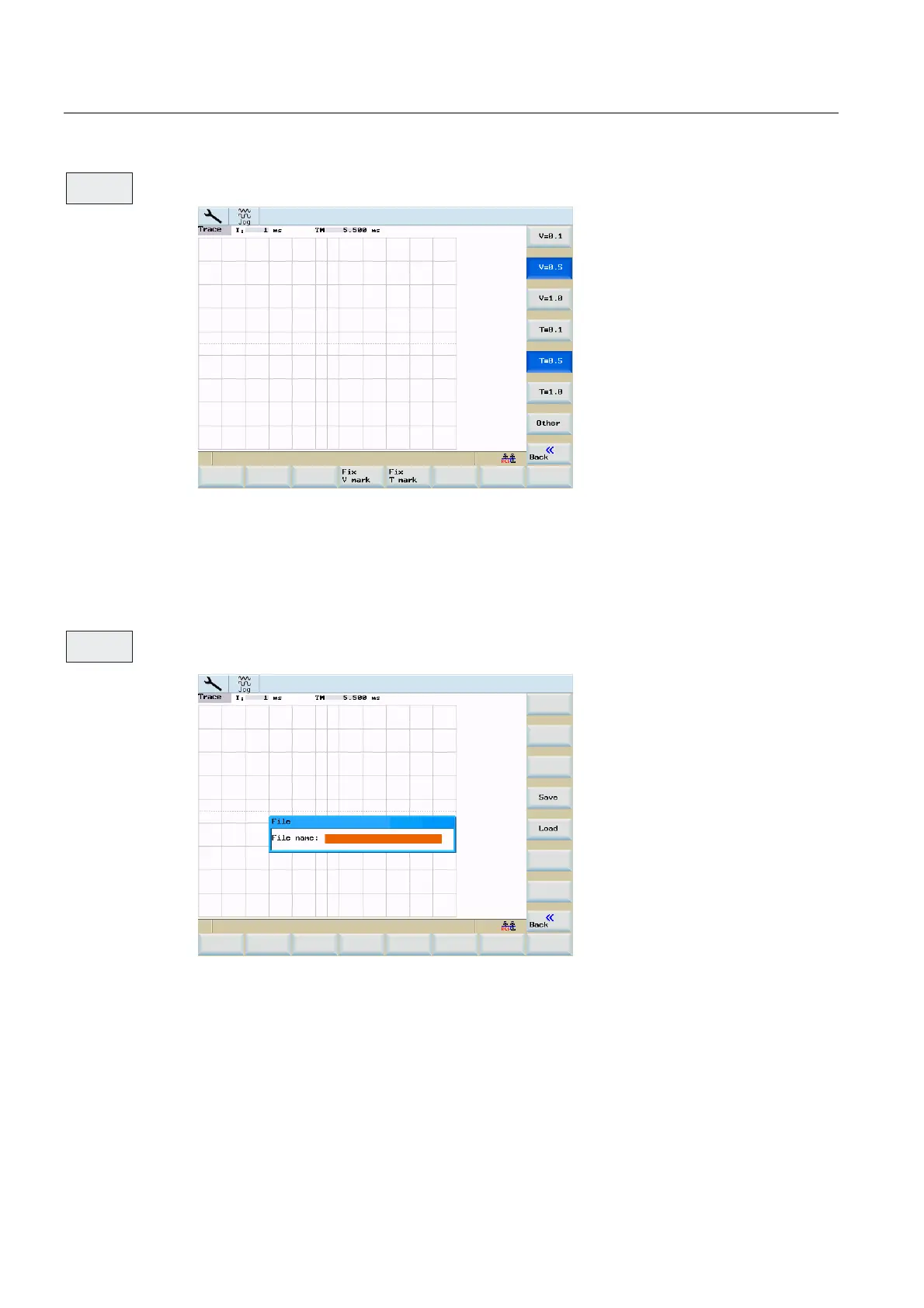

Figure 8-21 Marker steps
The markers are moved using the cursor keys at a step size of one increment. larger step
sizes can be set using the input fields. The value specifies how many grid units the marker
must be moved per "SHIFT" + cursor movement. When a marker reaches the margin of the
diagram, the grid automatically appears in the horizontal or vertical direction.
Use this softkey to save or load trace data.
Figure 8-22 Trace data
Type the desired file name without extension in the "File name" field.
Use the "Save" softkey to save the data with the specified name in the part program
directory. Thereafter, the file can be exported, and the data can be processed in MS Excel.
"Load" loads the specified file and graphically displays the data.
