Siemens SINUMERIK 802D User Manual

System
8.4 SYSTEM - "Service display"
Cylindrical grinding
128 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
The "HMI details" menu is intended for servicing and can only be accessed via the user
password level. All programs provided by the operator unit are displayed with their version
numbers. By reloading software components, the version numbers can be differ from each
other.

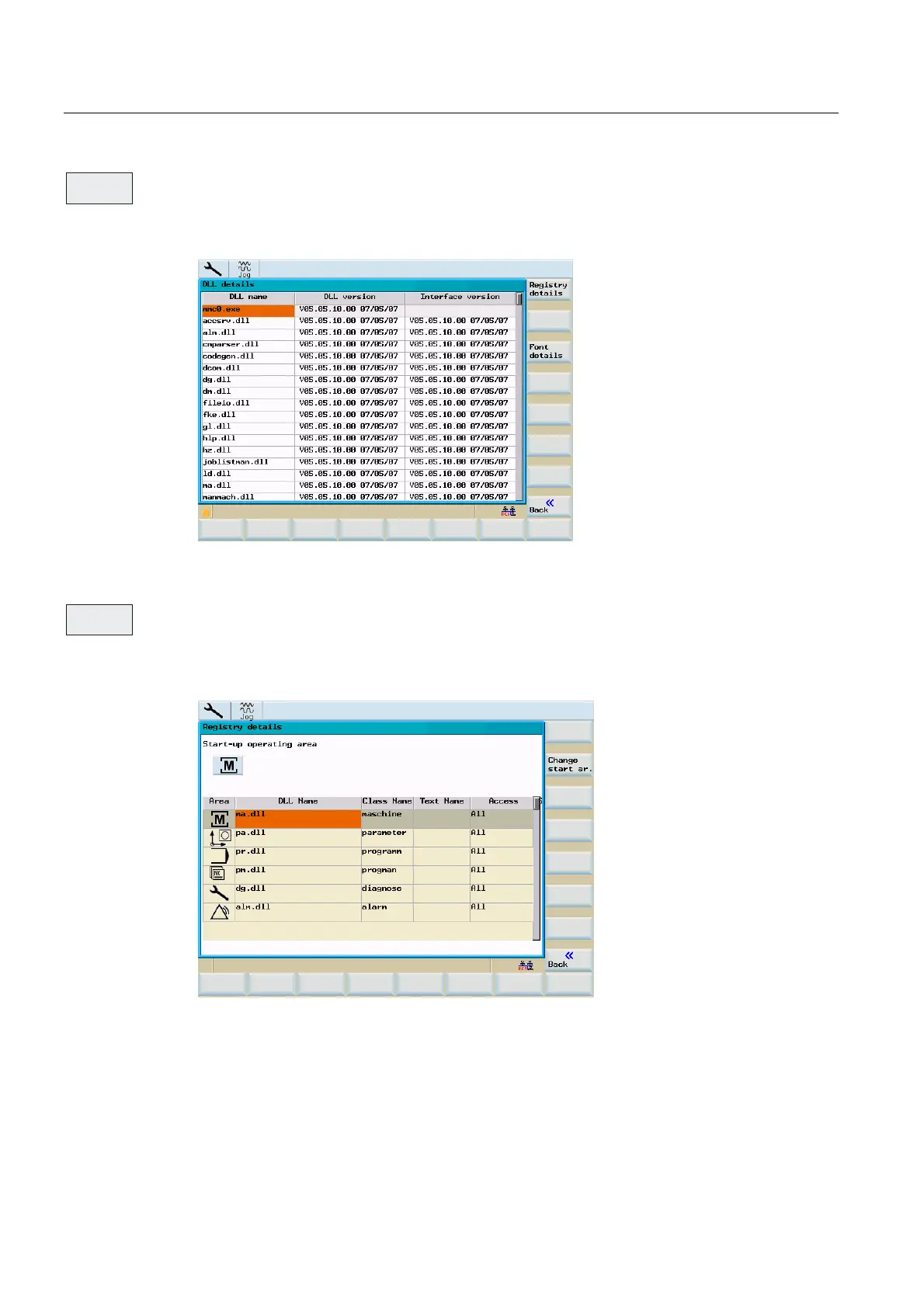

Figure 8-24 The "HMI version" menu area
This "Registry details" function displays the assignment of the hard keys (operating area
keys POSITION (machine), OFFSET PARAM (parameter), PROGRAM (program),
PROGRAM MANAGER (progman), ...) for the programs to be started in the form of a list. For
the meanings of the individual columns, please refer to the table below.
Figure 8-25 Registry details
+0,
'HWDLOV
5HJLVWU\
'HWDLOV
