Cycles
9.13 Reciprocating – CYCLE415
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
197

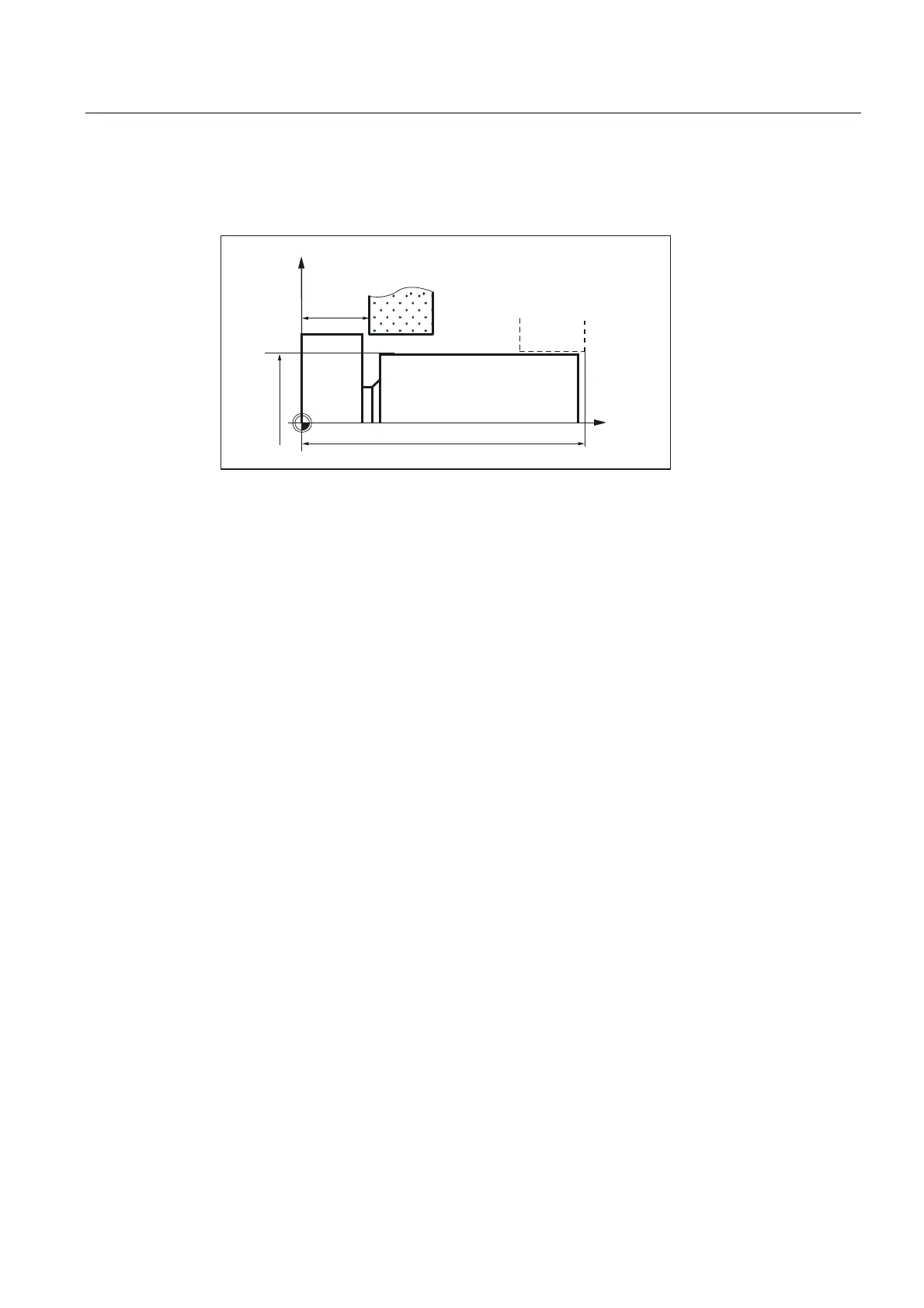

Explanation of the parameters
=B67
;
=
=B(1'
;B62//
N_SITZ (seat number)
The N_SITZ parameter is used to enter the number of the seat to be machined on the
workpiece.
X_SOLL (setpoint diameter)
The setpoint diameter corresponds to the finished dimension in the X direction.
Z_ST (starting position in Z), Z_END (target position in Z)
Z_ST and Z_END are used to define the starting and target positions of the grinding motion
in the Z direction.
B_ART (machining type)
The B_ART parameter is used to define the machining type used to machine a technological
section. Possible values for B_ART lie in the range between 1 and 3 with the following
meaning:
1 = roughing
2 = finishing and fine-finishing
3 = roughing, finishing and fine-finishing
A_LU (air allowance)
The term 'air allowance' is used to denote the distance between the starting position in X and
the stock allowance for roughing.
A_SR, A_SL, A_FSL (allowance)
For the various machining steps, different values can be defined for the allowance. These
refer to the nominal diameter.
