Cycles
9.20 Longitudinal surface grinding - CYCLE452
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
217

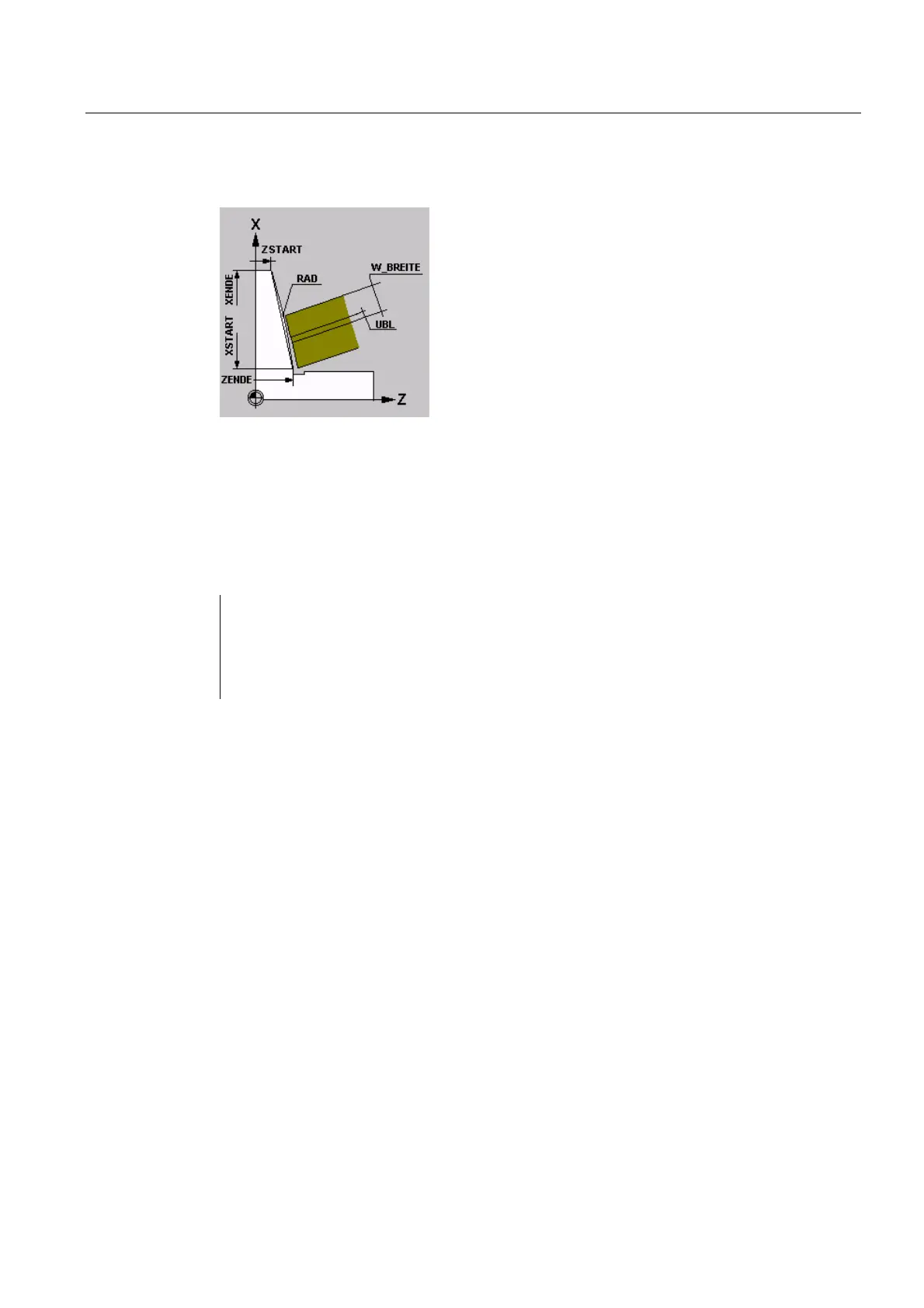

Sketch of the geometry parameters
Figure 9-10 Longitudinal surface grinding - CYCLE452
Programming example?
Machining sequence:
Taper grinding at a grinding wheel peripheral speed of 20 m/s. Roughing is machined with
multiple plunge-cuts. A dressing stroke takes place prior to fine-finishing.
N10 T1D1
N20 CYCLE446( 20)
N30 CYCLE405( 0, 0, 200, 100, 120, 0, 10, 0, 1, 0, 2, 2, 0.1, 0.1, 0.03, 0.01, 0.01,
0.005, 0.002, 1, 0, 2, 0, 0, 1, 0.02, 0.01, 2, 1, 0.5, 20, 30, 40, 0, 1, 2, 20)
N40 M30
