10.6 Tool and tool offset
Cylindrical grinding
Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
293
*
*

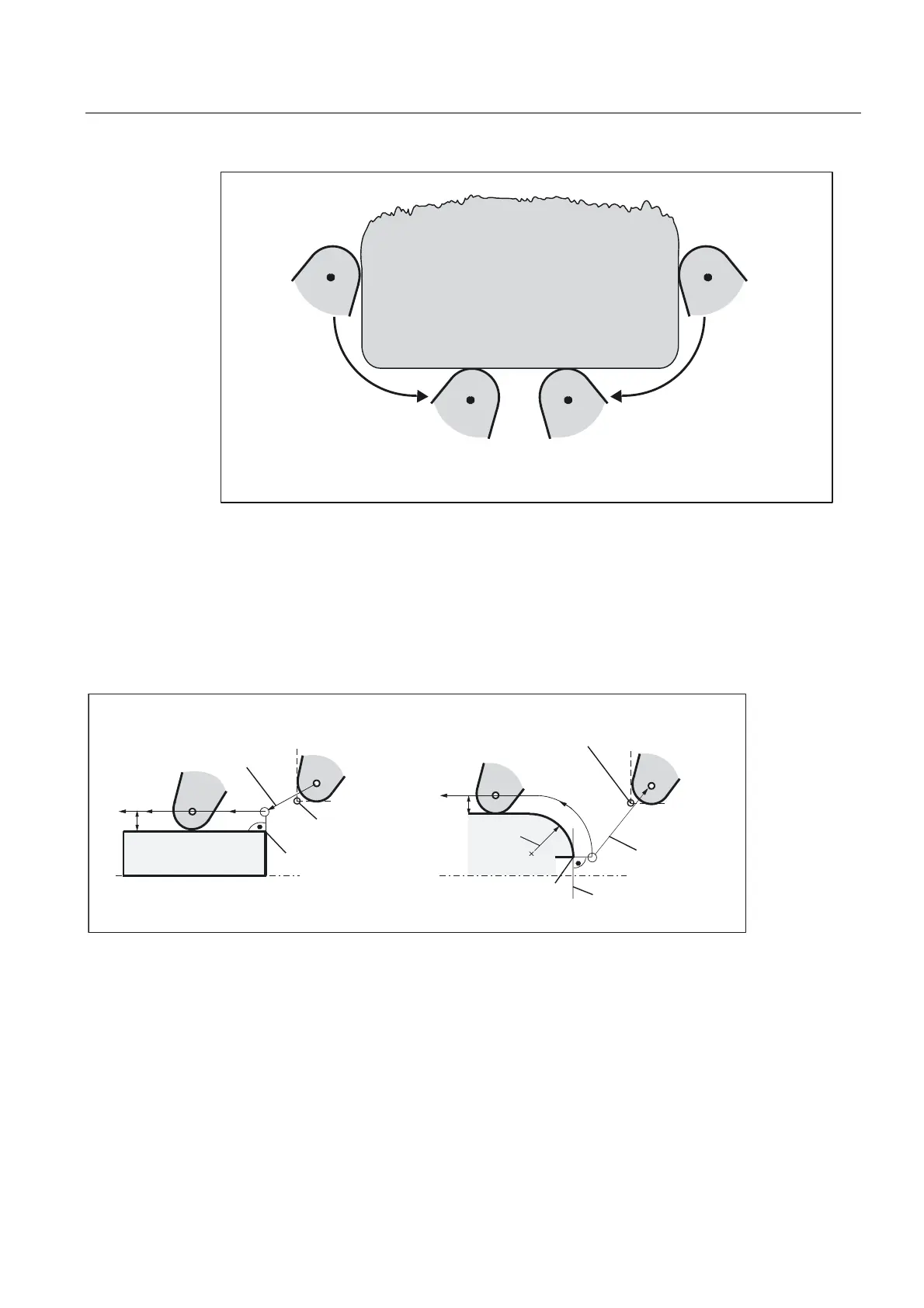

Figure 10-29 Compensation to the right/left of the contour
Starting the compensation
The tool approaches the contour on a straight line and positions itself vertically to the path
tangent in the starting point of the contour.
Select the start point so as to ensure collision-free traversing.
6WDUWLQJFRQWRXU6WUDLJKW
&RPSHQVDWHG
7RROSDWK
*
5FXWWLQJHGJHUDGLXV
5
3
3VWDUWLQJSRLQWRIWKHFRQWRXU
6WDUWLQJFRQWRXU&LUFOH
3VWDUWLQJSRLQW
*
&RPSHQVDWHG
7RROSDWK
03
&LUFOHUDGLXV
7DQJHQW
5
3
3VWDUWLQJSRLQW
Figure 10-30 Start of the tool radius compensation with the example G42, tool point direction =3
Information
As a rule, the block with G41/G42 is followed by the block with the workpiece contour.
However, the contour description may be interrupted by an intervening block that does not
contain information for the contour path, e.g. only M command.
