4.7 Manual grinding
Cylindrical grinding
56 Programming and Operating Manual, 07/2009, 6FC5398-4CP10-2BA0
Manual grinding, reciprocation

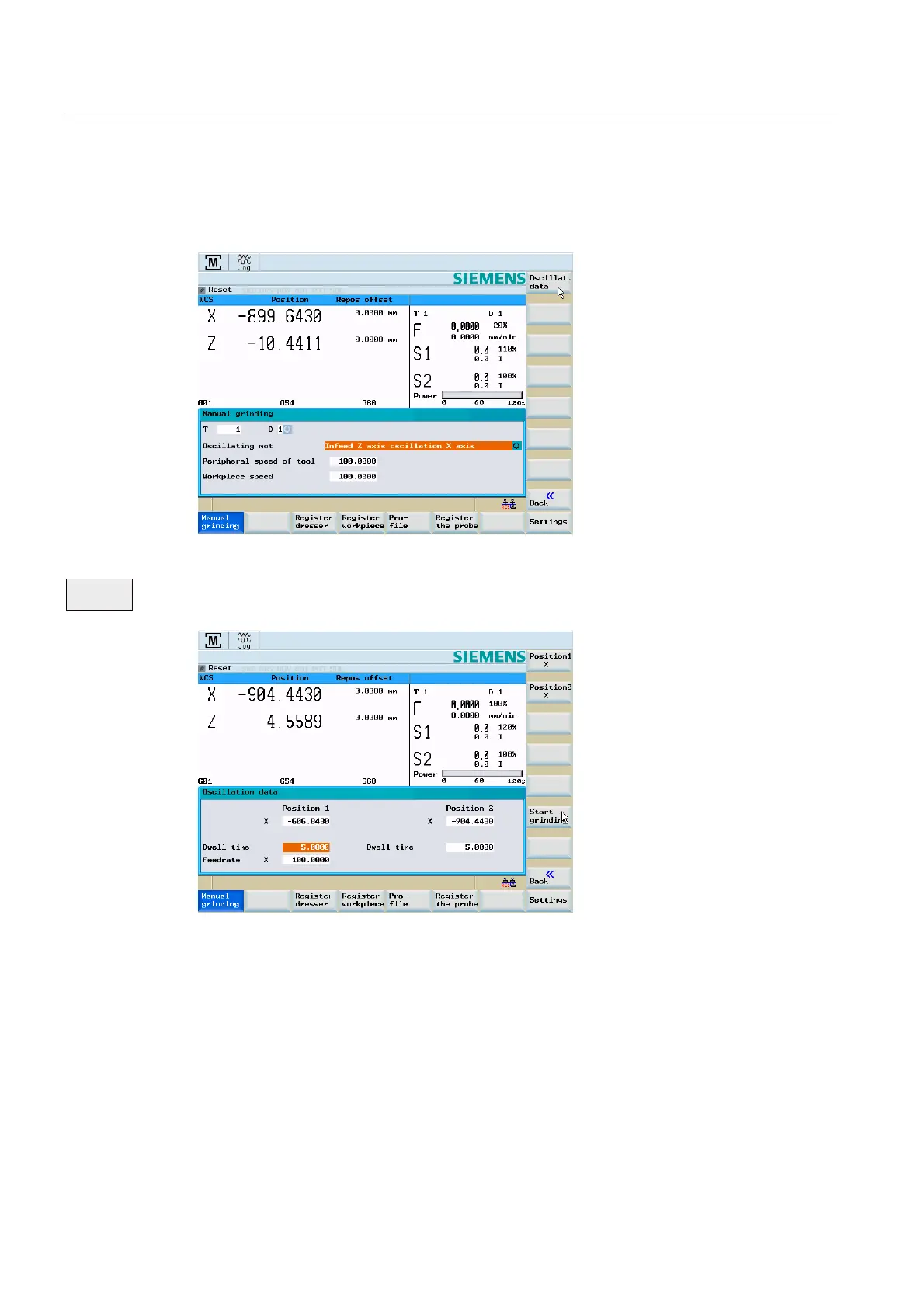

The figure below shows an input screen with parameters for manual grinding with
reciprocation:
Figure 4-21 Manual grinding, with reciprocation
If you have selected reciprocation, then you should use this function to enter the
reciprocation data (see figure below):
Figure 4-22 Manual grinding with reciprocation data in X
The following reciprocating data is possible:
● Position 1 (start)/2 (end):
– Use the numeric keypad to enter position 1/2 in the relevant input field.
– Use traversing key "X" on the machine control panel to approach position 1/2 and use
vertical softkey "Position 1"/"Position 2" to transfer the position to the input field (teach
in).
● Dwell time at reversal point position 1 (in seconds if there is a tool spindle present;
otherwise, in revolutions)
