Siemens SINUMERIK 840D sl Programming Manual

Turning:
;
=

* *
*
*


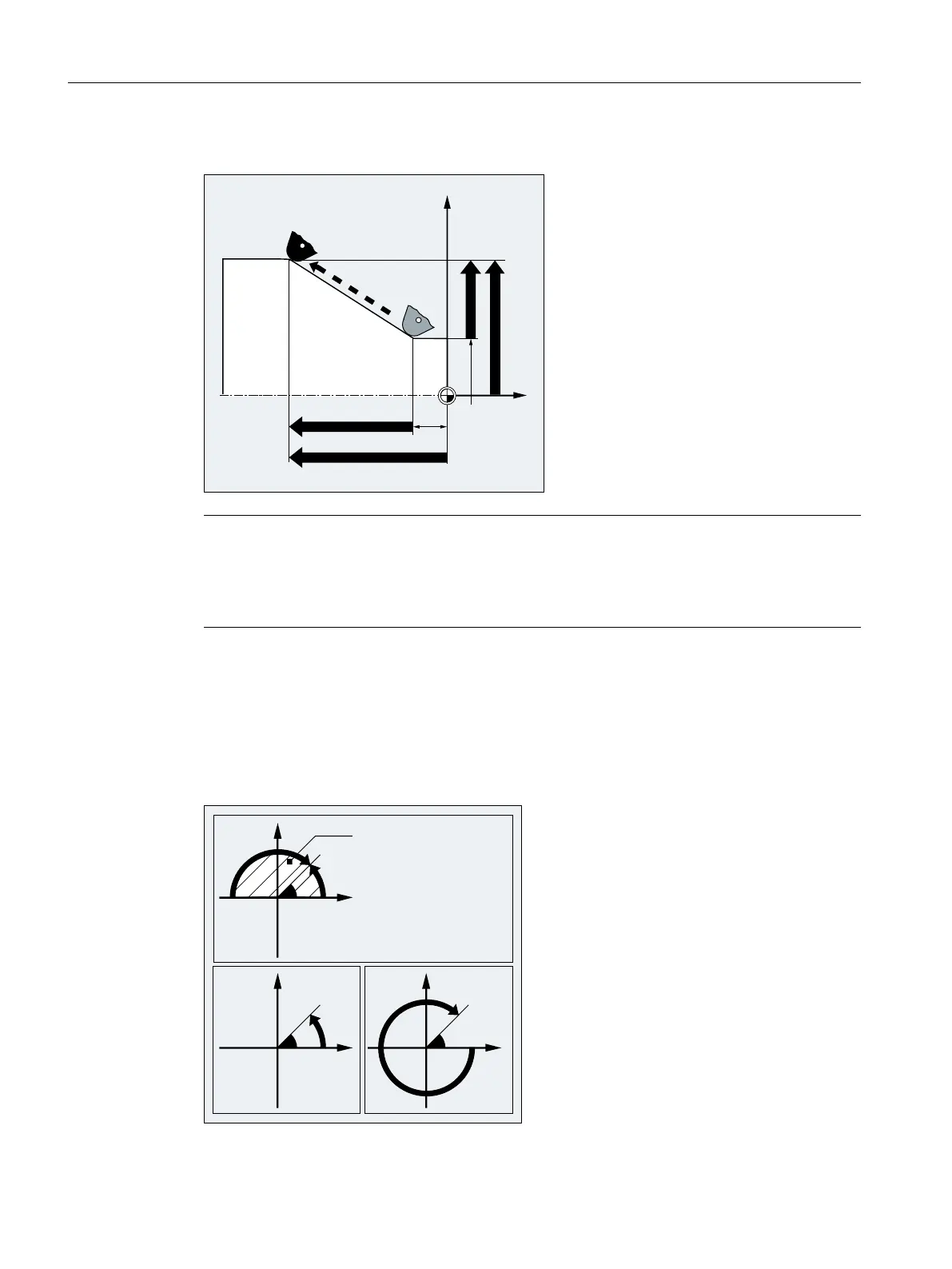

Note
On conventional turning machines, it is usual to consider incremental traversing blocks in the
transverse axis as radius values, while diameter specifications apply for the reference
dimensions. This conversion for G90 is performed using the commands DIAMON, DIAMOF
or DIAM90.
2.8.4.4 Absolute dimensions for rotary axes (DC, ACP, ACN)
The non-modal and G90/G91-independent commands DC, ACP and ACN are available for
positioning rotary axes in absolute dimensions.
DC, ACP and ACN differ in the basic approach strategy:
'&
$&3$&1
0D[LPXPWUDYHUVLQJ
UDQJH
Fundamentals
2.8 Geometry settings
NC programming
156 Programming Manual, 12/2019, 6FC5398-2EP40-0BA0

Siemens SINUMERIK 840D sl Specifications

General

Control Type	CNC
Number of Axes	Up to 31
Max Number of Channels	10
Interfaces	Ethernet, PROFIBUS, PROFINET, USB
Interpolation	5-axis interpolation
Operating Temperature	0°C to 45°C
Relative Humidity	Up to 95% (non-condensing)
Display	TFT color display, various sizes
Programming Languages	DIN/ISO
Safety Features	Safety Integrated
PLC	Integrated PLC S7-300
Drive Interface	SINAMICS S120
Data Storage	CF card, USB
Operating System	Windows-based
